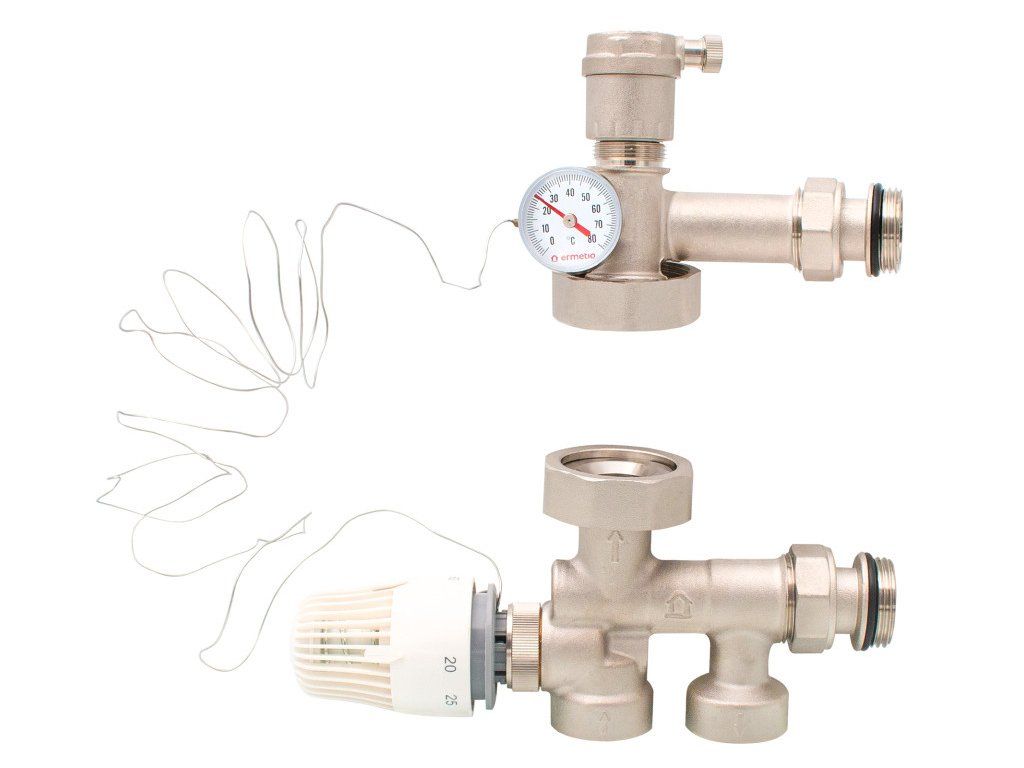

Ermetiq mixing group with automatic air vent

Product detailed description

The ERMETIQ ER-MWS703 mixing group with automatic air vent is designed for underfloor heating systems, where it ensures the preparation of heating water with the required temperature by mixing hot water from the source with colder return water from the heating circuit. The integrated thermostatic valve automatically regulates the temperature of the heating water, thereby contributing to uniform floor heating, greater comfort and economical operation.

The ER-MWS703 model is equipped with an automatic air vent that continuously removes air from the system and reduces the risk of air entrapment. The set also includes two thermometers for monitoring the temperature of the supply and return water. The mixing group is made of high-quality chrome-plated brass, which ensures high corrosion resistance and long service life. It is designed for installation with a circulation pump with a mounting length of 130 mm (pump not included).

Features:

• Mixing group for underfloor heating.
• Automatic air vent valve for continuous air venting of the
  system.
• Thermostatic mixing valve for automatic regulation of the heating water temperature.
• Two integrated thermometers for checking the flow and return temperature.
• Designed for a circulation pump with an installation length of 130 mm.
• Chrome-plated brass body with high corrosion resistance.
• Easy installation in underfloor heating systems.
• Ensures a stable heating water temperature and protects the underfloor heating from overheating.

Technical parameters:

• Model: ER-MWS703
• Type: Mixing group for underfloor heating
• Temperature control: thermostatic valve
• Temperature setting range: 20 to 60 °C
• Bleed: automatic bleed valve
• Thermometers: 2 pcs (supply / return)
• Connection: 1"
• Pump connection: for pumps with installation length 130 mm
• Maximum working pressure: 10 bar
• Body material: chrome-plated brass
• Application: underfloor heating systems
• Pump: not included.
