Kit PNI MAB300 for swing gate, 200kg
Code: PNI-MAB300Product detailed description

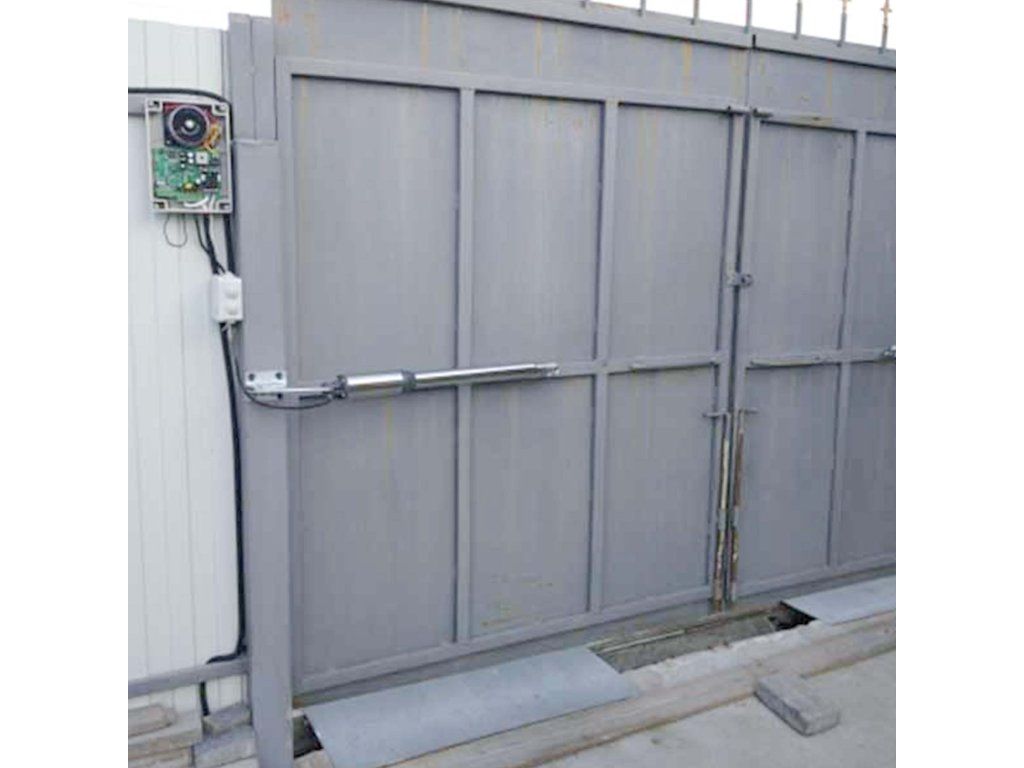

Swing gate automation system

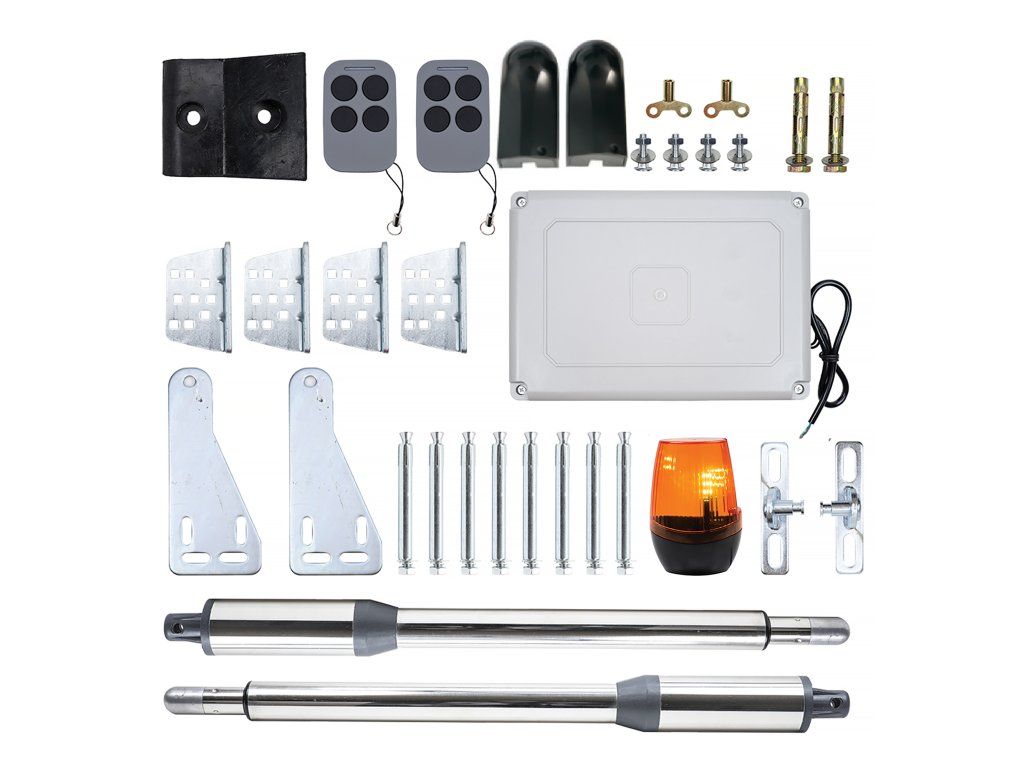

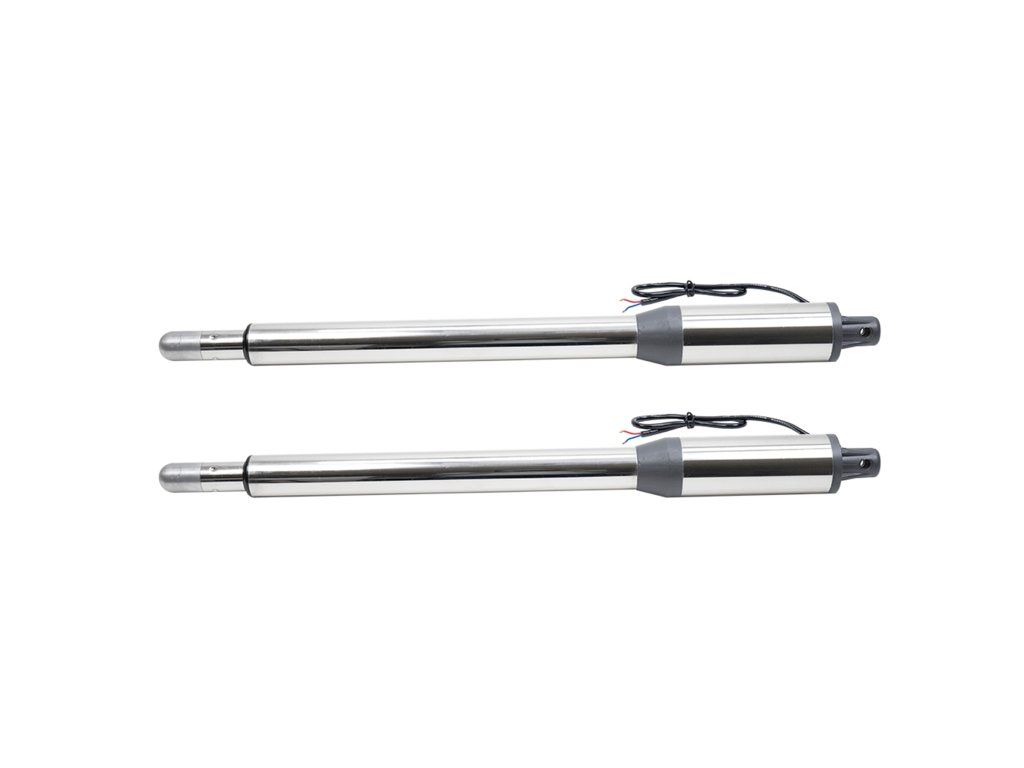

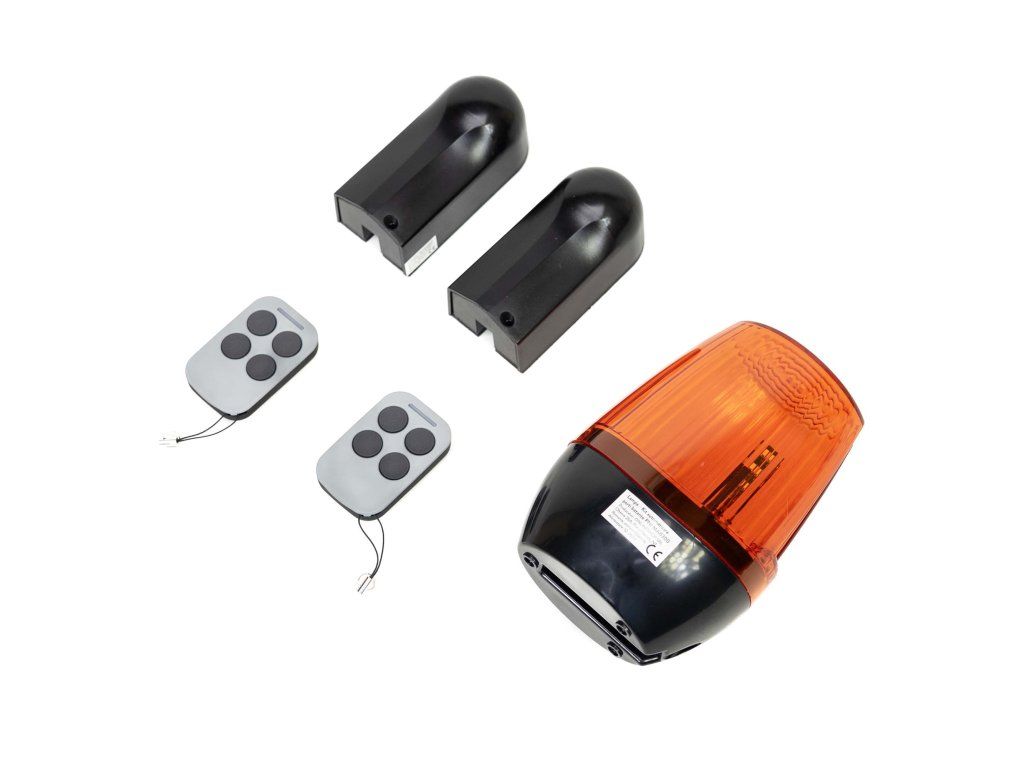

The swing gate automation kit is equipped with two 40W motors with a maximum rotation speed of 200rpm that can open or close gates with a maximum weight of 200 kg and a maximum length of 2.5 meters. The PNI MAB300 gate automation kit includes the basic components necessary for the commissioning of a practical access control system: control unit, two piston motors (maximum extension 300 mm), two remote controls, two photocells, warning lamp, stop rubber and mounting accessories kit.

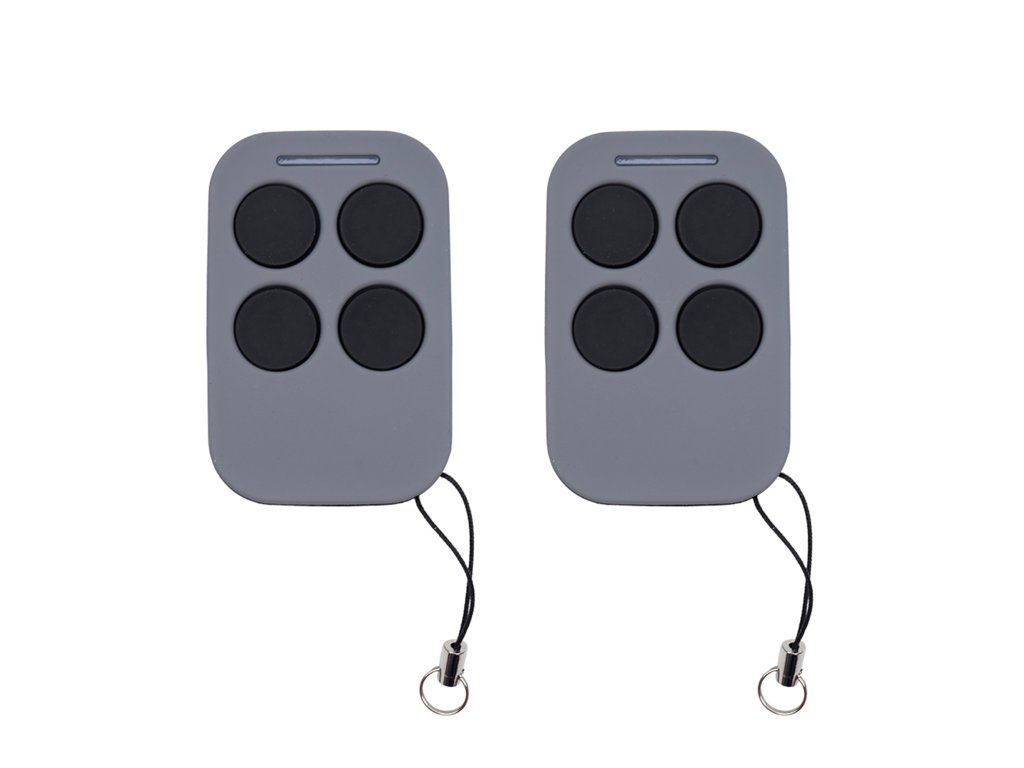

Remote control, compatible devices
The gate can be opened and closed from the remote control. The system supports the connection of other access control devices such as electromagnetic yales, retaining electromagnets, access buttons, access keyboards. Optionally, the system can be connected to a solar system or a 24V backup battery.
Automatic closing with timing
The system can be set so that the gates close automatically after a certain period of time. Also, the gates can be opened or closed simultaneously or at a maximum difference of 10 seconds from each other or only one gate in two can be opened.
Obstacle detection
In the event of noticing an obstacle that occurs during opening or closing, the gates stop. Choose safety for your family
| Package contents | |
| Manual | Yes |
| Motor | Yes, 2 |

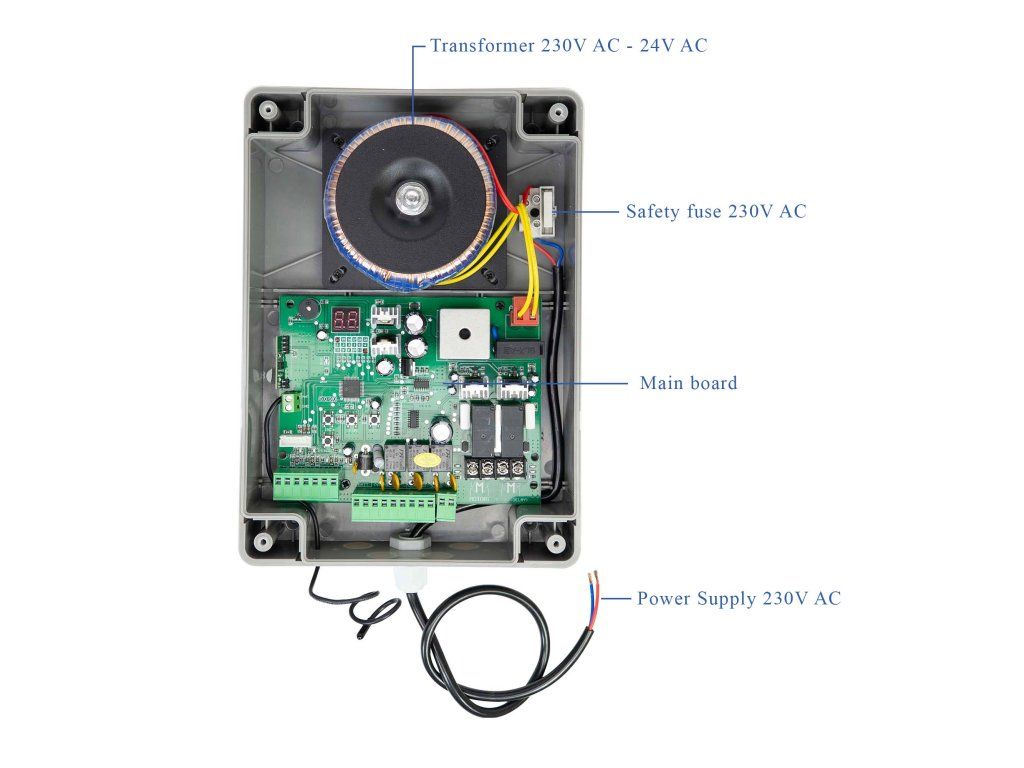

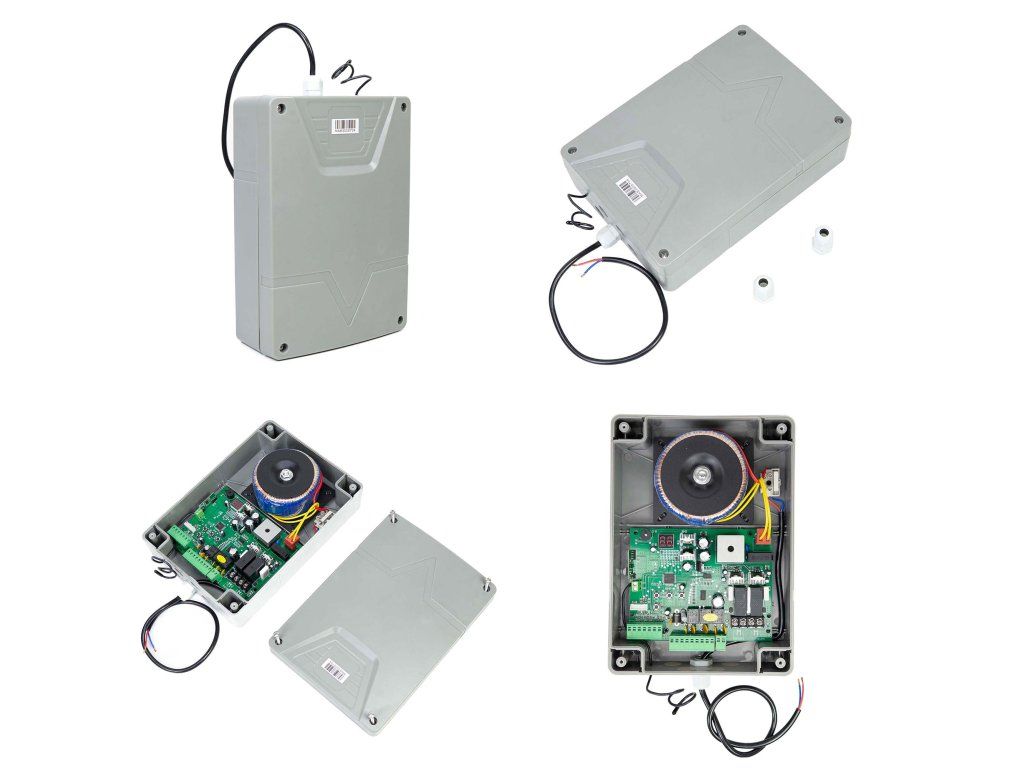

| Control panel | Yes |

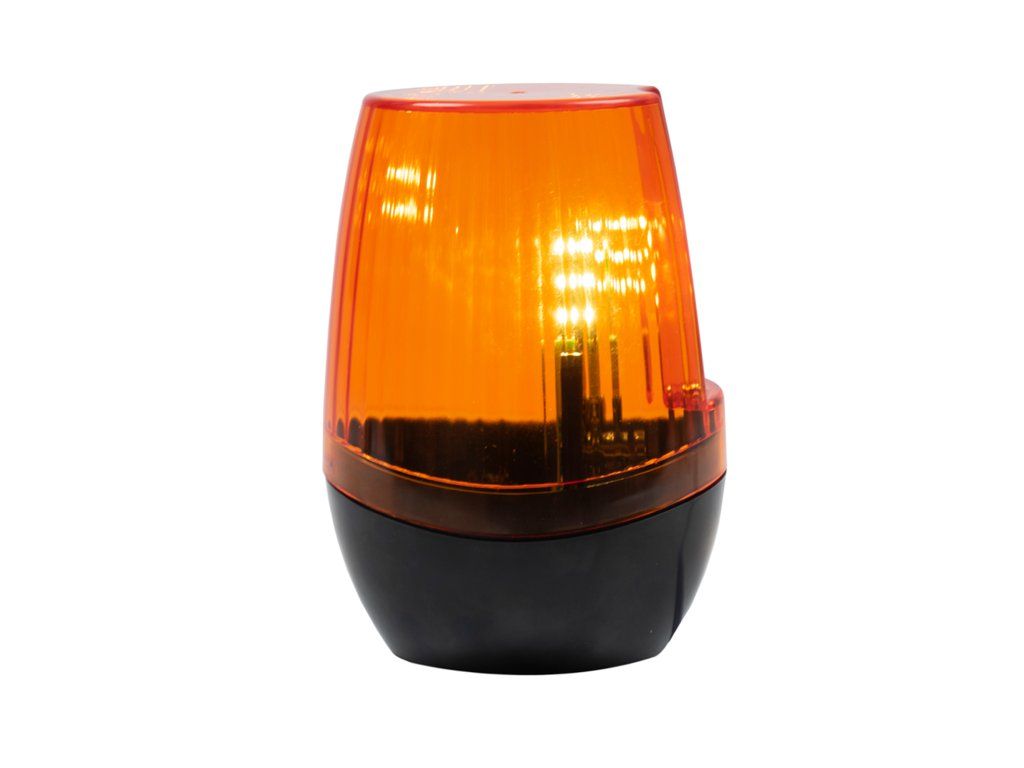

| Lamp | Yes |
| Photocells | Yes, 2 pcs. |
| Remote | Yes, 2 pcs. |

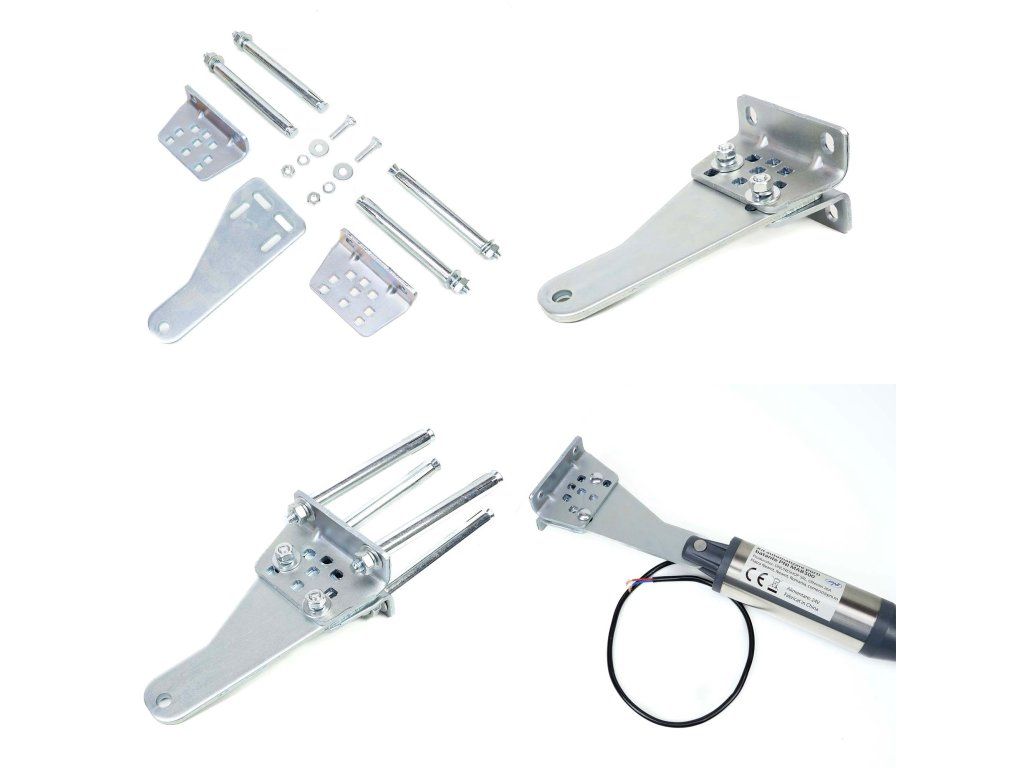

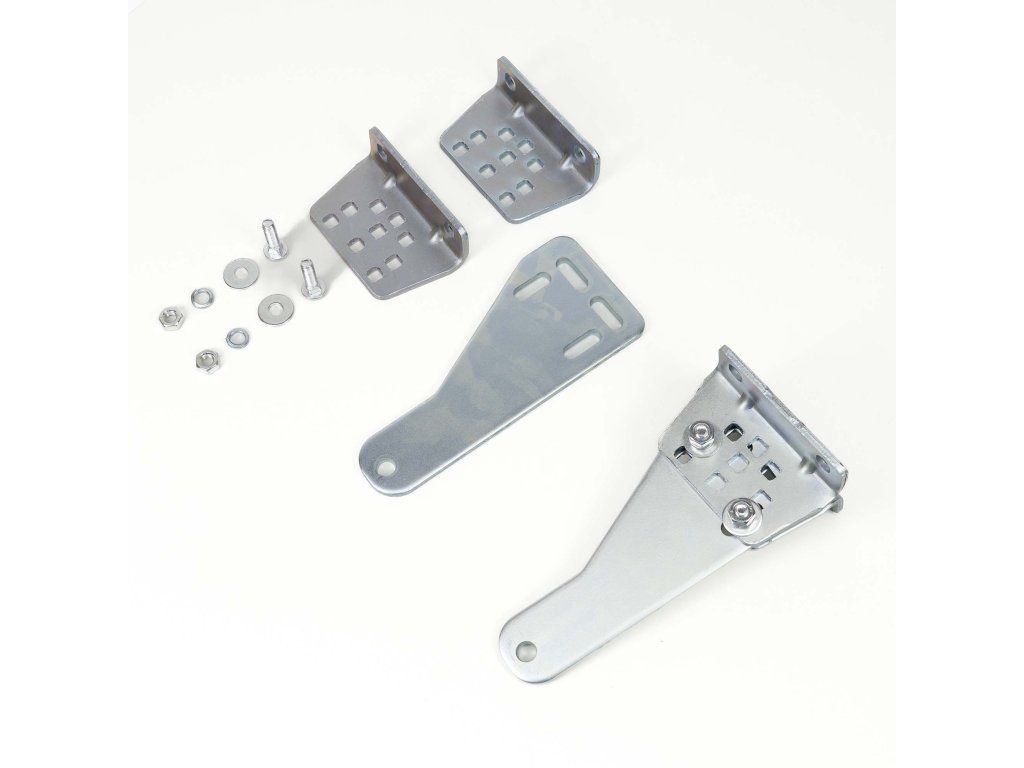

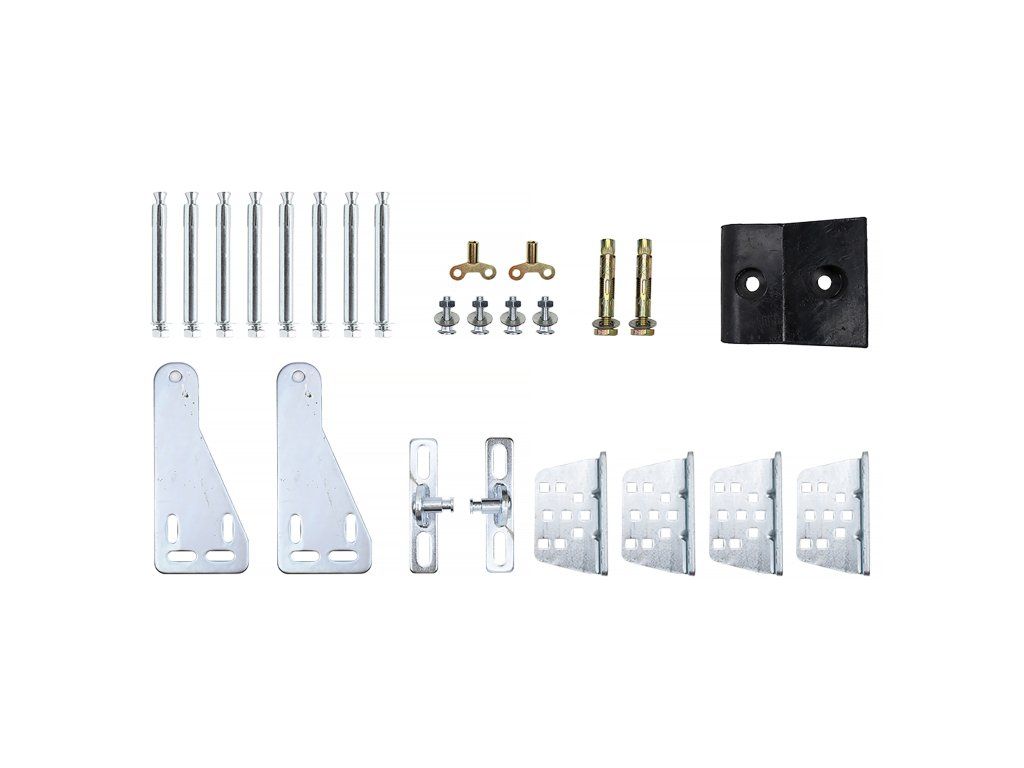

| Mounting accessories | Yes |
| Engine features | |
| feeding | 24V |
| Power | 40W x 2 |
| Maximum bearing weight | 200 kg |
| Maximum length of the gate leaf | 2.5 mx 2 |
| Arm elongation speed | 1.6 cm / sec. |
| Engine speed | 250 rpm |
| Weatherproof | Yes, IP55 |

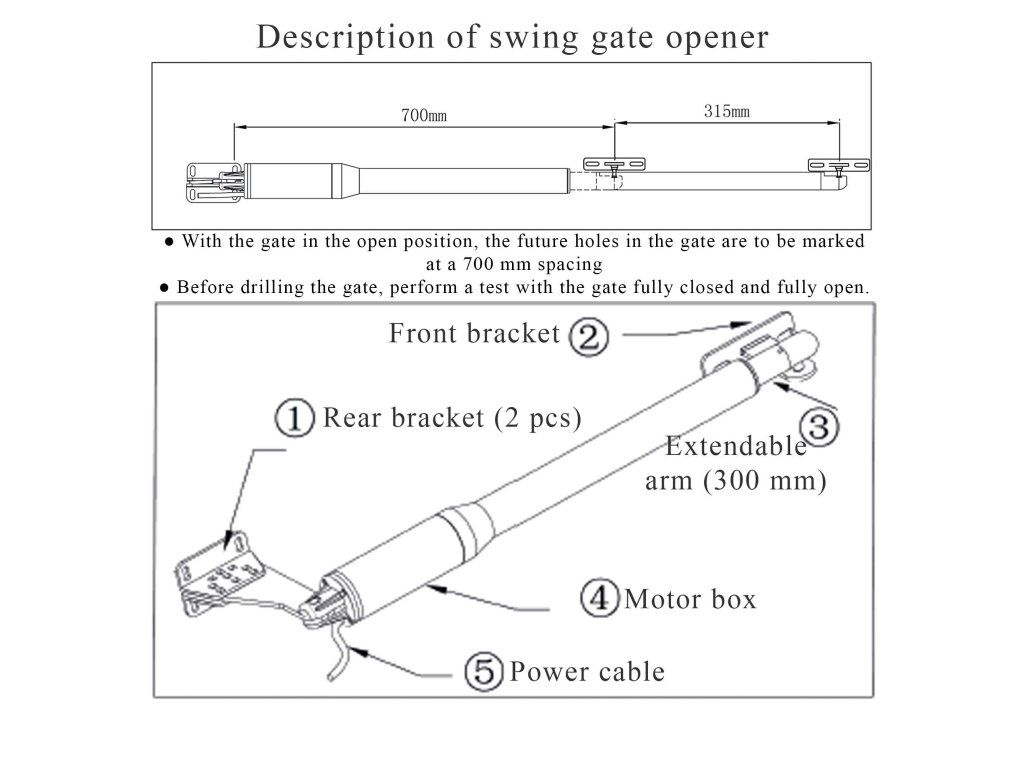

| Maximum working elongation | 300 mm |
| Remote control features | |
| Battery | Alkaline, 23A, 8V |
| size | 38 x 14 x 58 mm |
| Communication distance | Up to 50m |
| Frequency | 433MHz |
| Lamp features | |
| feeding | 230 |
| Power | 1.5W |
| size | 90 x 80 x 140 mm |
| Photocell characteristics | |
| feeding | 12 / 24V |
| Communication distance | Up to 10 m |
| size | 75 x 30 x 50 mm |
Additional parameters
| Category: | Gate openers and accessories |
|---|---|
| Weight: | 13.89 kg |
| EAN: | 5949066522994 |
MAB300
