Parking sensors BENE 404

Product detailed description

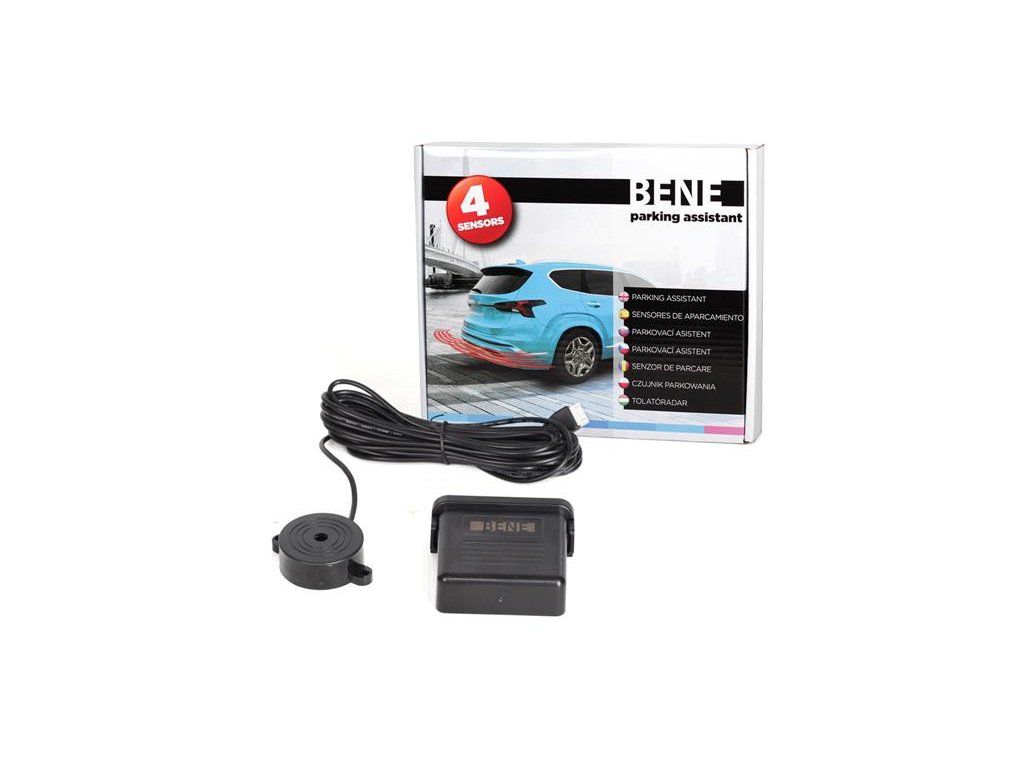

Parking assistant BENE 404 with 4 sensors with a diameter of 20 mm, designed to be mounted in the rear bumper of the vehicle. It warns of an obstacle with an acoustic signal.

The parking assist is equipped with four ultrasonic sensors that are installed in the rear bumper. Using the sensors, the control unit evaluates the distance to an obstacle. The sensors are installed so that only their outer edge protrudes. The BENE 404 signals the obstacle acoustically by beeping a buzzer in the cab of the vehicle. The acoustic signal becomes more intense as the obstacle gets closer.
The kit includes a precision cutter to drill the necessary holes in the plastic bumper.

Specifications:

Sensors:
Number of rear sensors: 4
mounting hole diameter: 20 mm
colour: black
possibility of repainting: yes
Display and signalling:
audio: yes
visual: no
the volume of the sound signal: > 85 dB
maximum recorded distance to obstacle: 2.5 m
zero obstacle distance indication at: 0.3 m
Control unit power supply: 10 - 16 V
power consumption: 5 W
Operating temperature: -30 °C to +80 °C
reverse activation: yes
