PNI CT36 PRO
Code: PNI-CT36PROProduct detailed description
Easy to control from your smartphone
With the help of the Tuya Smart mobile application, you will be able to check the temperature in your home at any time, or just as easily, you will be able to change the desired temperature regardless of where you are at work, on vacation or at a great distance.
The application is compatible with iOS (minimum v9) or Android (minimum v4.2).
Important: the Wifi router must work in the 2.4 GHz frequency.
Modern design and better thermal comfort
A modern design that fits perfectly in any area of your home and a large illuminated screen with icons will help you adjust the temperature for the best possible comfort in your home or office.
The PNI CT36 smart thermostat has a hysteresis of at least 0.2° Celsius.
The small hysteresis of a thermostat determines a smaller difference between the maximum and minimum temperature in the house, so a better thermal comfort.
Dimensions and location
The PNI CT36 intelligent thermostat comes in a package with accessories for mounting on the wall or with a table/desk stand. The receiver unit also has included in the package the necessary elements for attaching to the wall.
Advanced temperature control functions
With the antifreeze function, you can leave the boiler alone in the care of the PNI CT36 smart thermostat.
A variety of working modes can be switched at will: constant temperature, daily programming, weekly programming for 4 time periods every day.
It includes the OWD function: so when the window/door open detection mode (OWD) is activated in the advanced settings, the system will automatically stop the heating if a sudden drop in temperature is registered (2° C in 15 minutes by default).
Pairing units
- Press and hold the button on the receiver until LED 1 flashes quickly
- Turn off the controller and press the menu button until the code appears on the screen, then press the menu button again
- Wait for LED 1 to stop flashing.
- Now the association is finished.
Daily programming for 4 time periods
For high comfort, you can schedule 4 time periods every day from Monday to Sunday. Thus, you can have different programs every day, depending on the time of departure or arrival at home.
Example of 4 time periods in a day:
06:00 - 23 degrees
08:00 - 22 degrees
17:00 - 23 degrees
23:00 - 22 degrees
The function is available both from the thermostat and from the dedicated mobile phone application.
| Product identification | |
| Product code | PNI-CT36PRO |
| General characteristics | |
| Product type | Wireless thermostat with Internet control |
| Destined for | Central heating |
| Compatible brand | |
| MOUNTING | Desk / wall |
| Material | Plastic |
| Color | White |
| Connectivity | - Wireless to Internet router: WiFi 802.11b/g/n (2.4 GHz); WPA2 (TKIP and AES) - Wireless between the 2 units: 868 MHz radio - Wired to the boiler |
| Food type | Central unit: batteries (2 AAA 1.5V alkaline batteries, not included) Receiver unit: 230V mains |
| Functions | - 2 operating modes: heating/cooling - Remote temperature control from the mobile application - Daily schedule: 4 time zones per day - Weekly schedule: Monday - Sunday - Local temperature control - Mobile central unit - Anti-freeze - Window detection Open |
| Dedicated smartphone application | Tuya Smart / Smart Life |
| Operating parameters | - Temperature that can be set: 5 - 35°C - Desired temperature setting step: 0.5°C - Temperature that can be measured: 0 - 50°C - Unit of measurement: °Celsius - Sensor sensitivity: ± 0.1°C - Hysteresis (Dead Zone) : 0.1 °C |
| Configurable parameters | - internal temperature sensor calibration - minimum and maximum settable temperature - antifreeze temperature - hysteresis - parameters - open window |
| Central unit features | |
| feeding | 2 LR3/AAA batteries (not included) |
| Screen | 3.7" illuminated |
| Display parameters | - Measured temperature (in the room) - Set / desired temperature - Current time - Current program - Wireless connectivity status |
| Mounting surface | Wall / Desk |
| Receiver unit features | |
| Mounting surface | Wall |
| Frequent communication | - with internet router: WiFi 802.11b/g/n (2.4 GHz) - with central unit: 868 MHz radio - with central heating unit: wired |
| feeding | 230VAC 50 / 60Hz |
| Central command type | NO/NC relay without potential (not energized) |
| Controllable relay circuit parameters (maximum) | 12-240V AC/DC, 10 Amps |
| Functions | - 2 multifunctional buttons - 2 status display LEDs - Can close a classic NO (Normally Open) control circuit of a heating plant that respects the relay parameters |
| The package contains | |
| Central unit | Yes |
| Receiver unit | Yes |

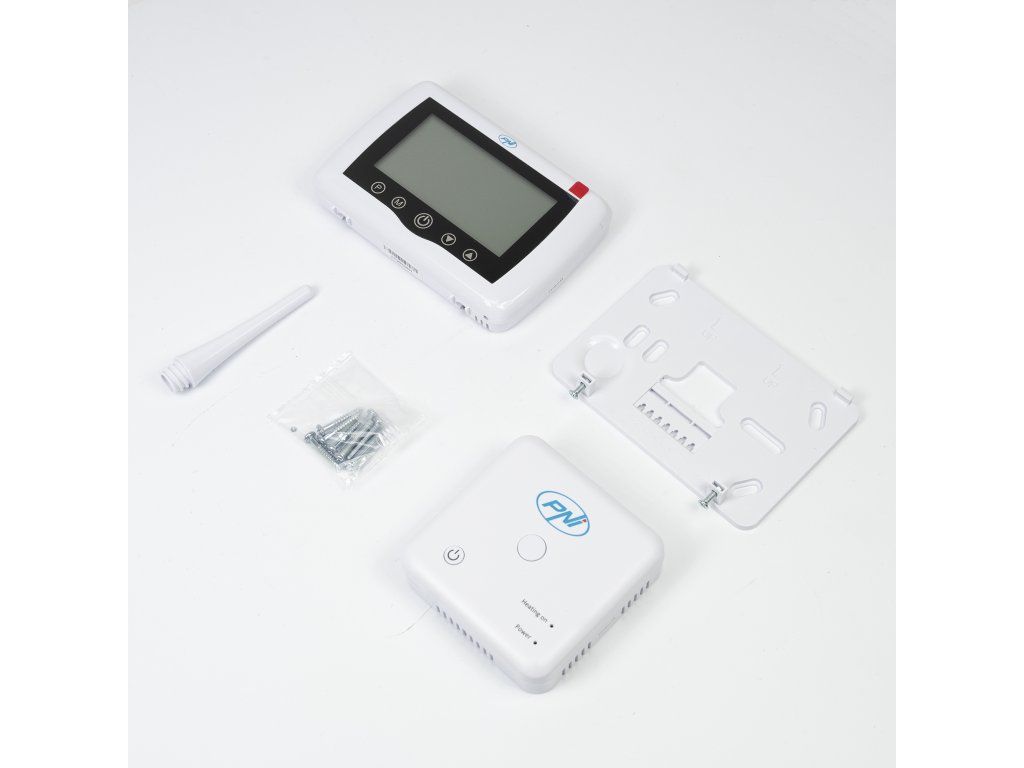

| Mounting accessories | - Wall mounting support - Desk placement support - Mounting screws |
| User manual | Yes |
Additional parameters
| Category: | Room thermostats and controllers |
|---|---|
| Weight: | 0.369 kg |
| EAN: | 5949066531538 |
