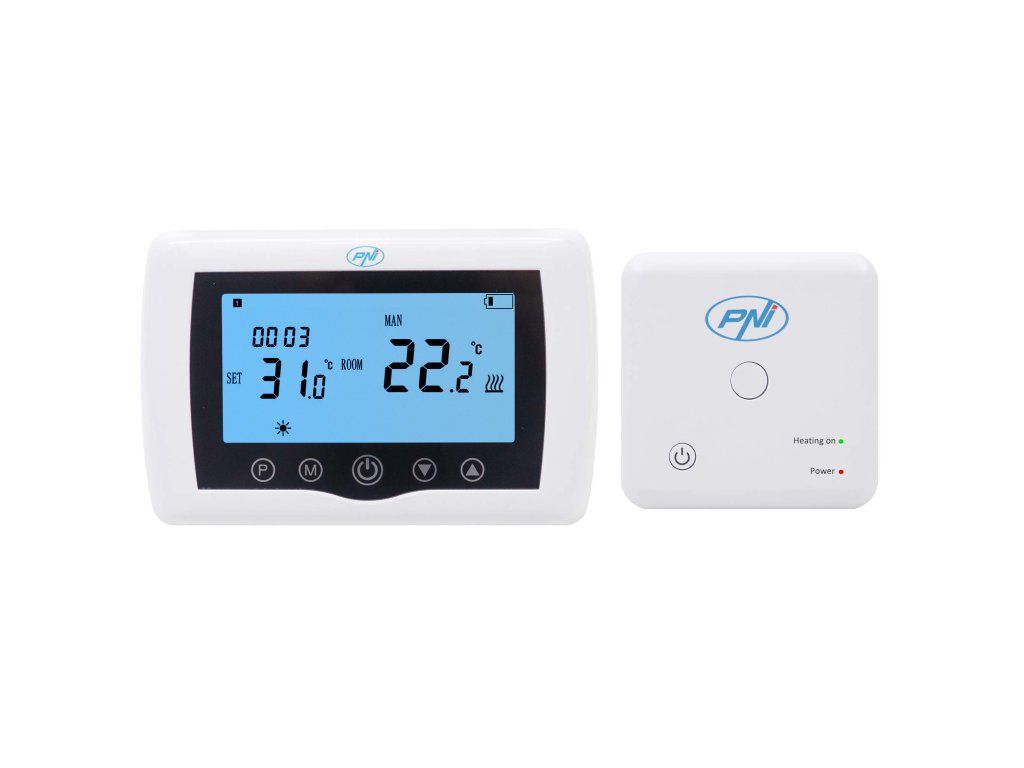

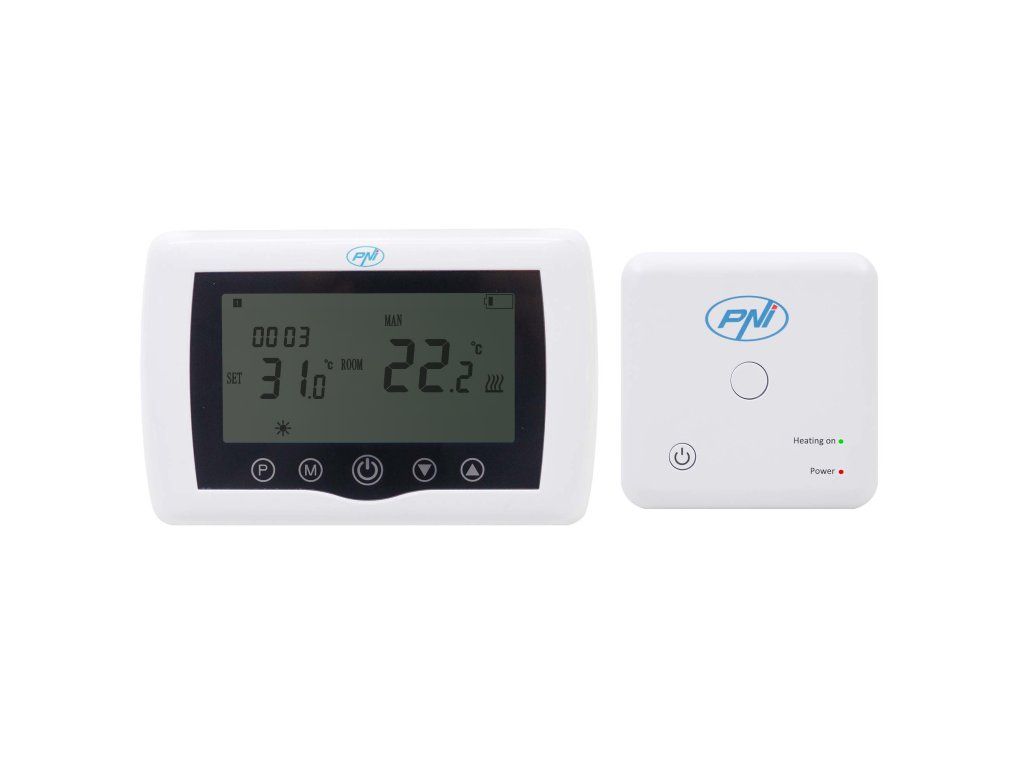

PNI CT36
Code: PNI-CT36Product detailed description
Easy to control
With the help of the Tuya Smart application, you will know at any time the temperature in your home or you will be able to simply control the PNI CT36 thermostat directly from work or from other areas where you are.
The application is compatible with iOS (minimum v9) or Android (minimum v4.2).
Importantly, the Wifi router must run at 2.4 GHz
Modern design and better thermal comfort
With a design that fits perfectly in any frame of your home, with a large screen and lighting with illustrations that will help you adjust the temperature for the best comfort in your home or office.
In addition to the CT35 model, the smart thermostat PNI CT36 has hysteresis less than 0.2 degrees Celsius
Small hysteresis on the thermostat determines a smaller difference between the maximum and minimum temperature in the house, so a better thermal comfort.
Dimensions and location

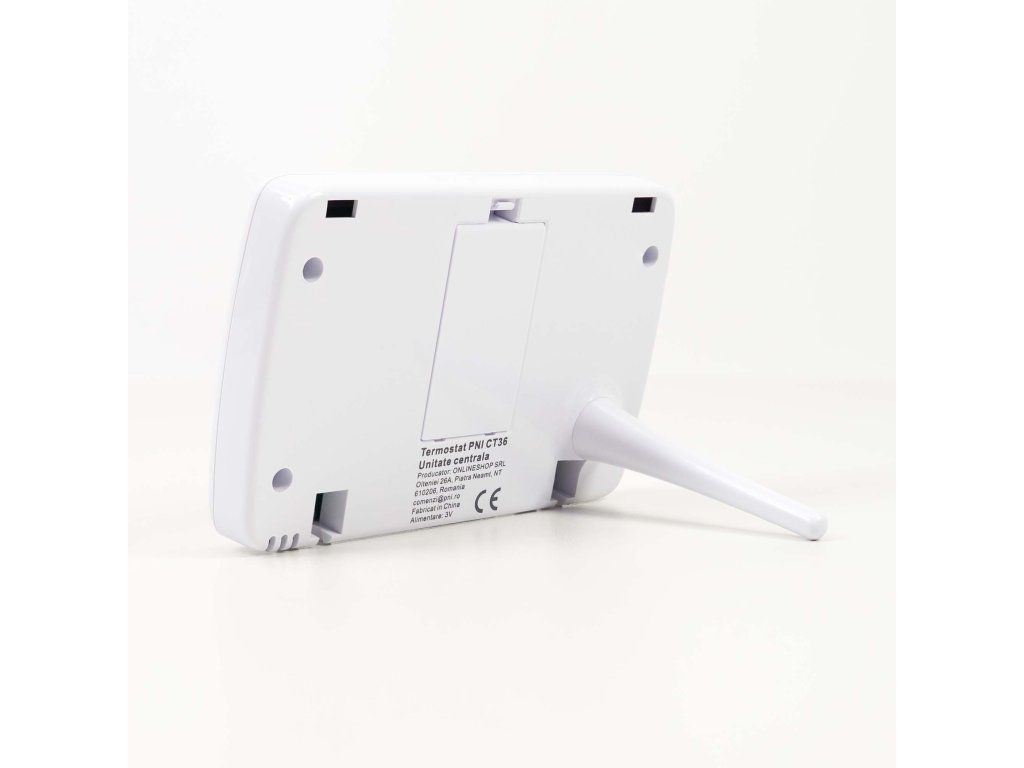

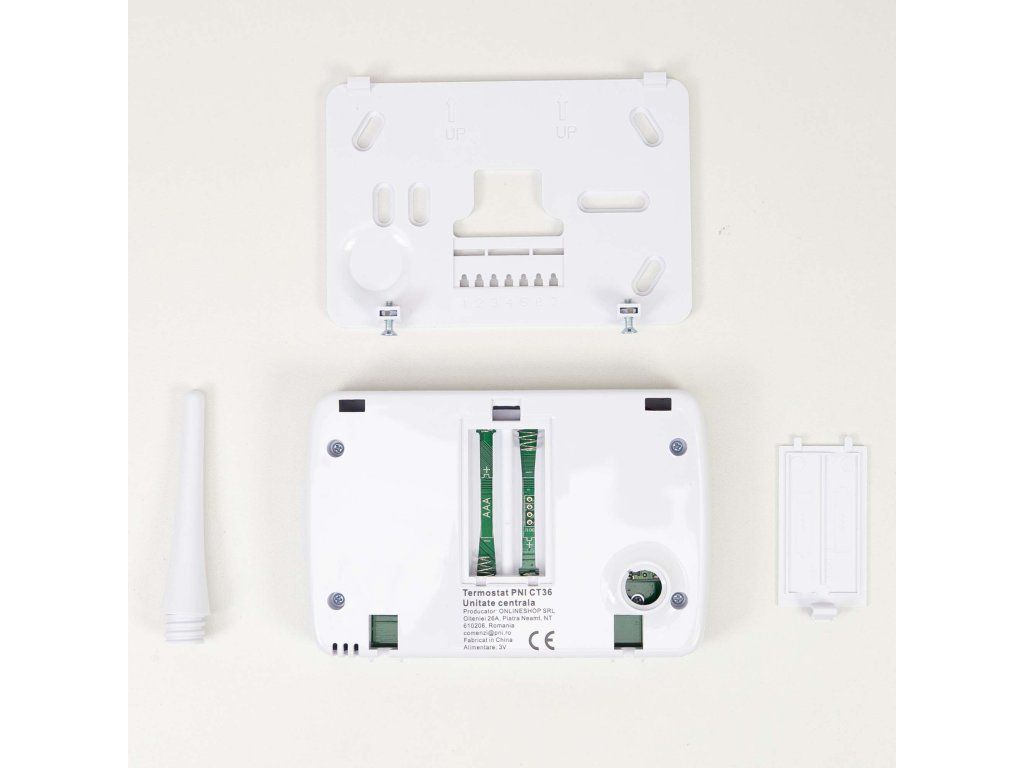

The smart thermostat PNI CT36 comes in a package with wall mounting elements or table support. The central unit also has included in the package the necessary elements for wall mounting.
Temperature control programming
With the antifreeze function, you can quietly leave the boiler to the PNI CT36 intelligent thermostat.
A variety of working modes can be switched at will, constant temperature, daily scheduling, weekly scheduling; Scheduling can be done daily.
It includes the OWD function , so when the open window / door detection mode (OWD) is activated in the advanced settings, the system will automatically stop the heating if there is a sudden drop in temperature (2 ° C in 15 minutes by default).
Pairing
- Press and hold the button on the receiver until LED 1 flashes quickly
- Turn off the controller and press the menu button until the code appears on the screen, then press the menu button again.
- Wait for LED 1 to stop flashing.
- Now the association is over.
| Product identification | |
| Product code | PNI-CT36 |
| General characteristics | |
| Product type | Wireless thermostat with Internet control |
| Destined for | Central heating |
| Compatible brand | |
| Mounting surface | Desk / wall |
| Material | Plastic |
| Color | White |

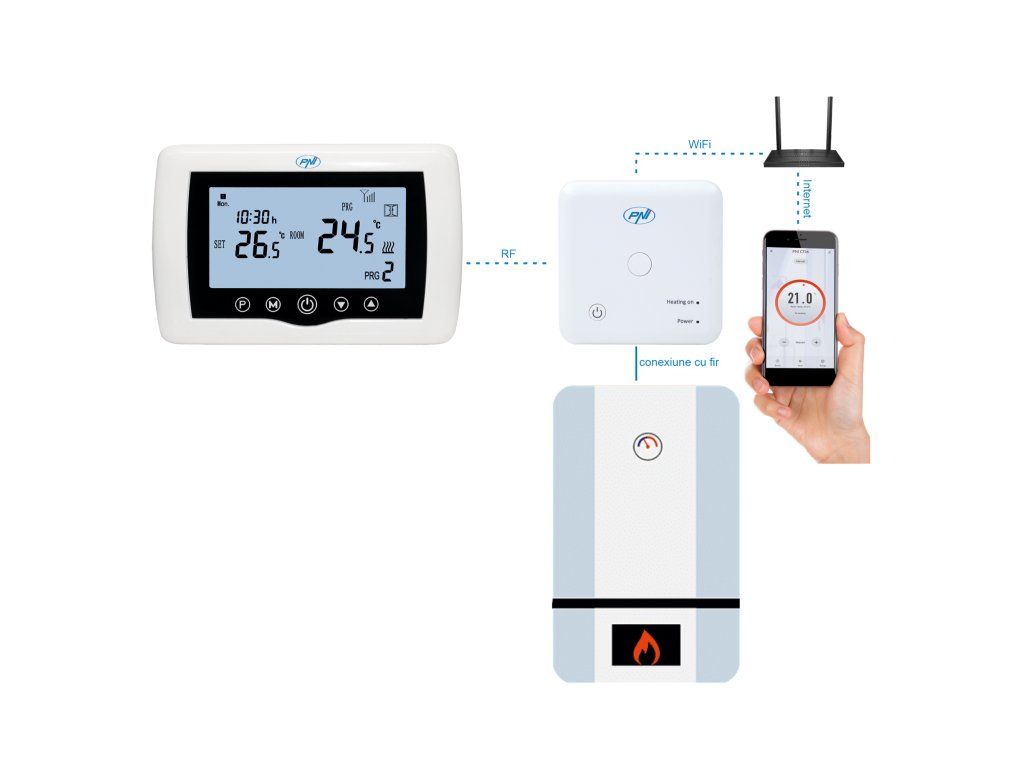

| connectivity | - Wireless Internet router: WiFi 802.11b / g / n (2.4 GHz); WPA2 (TKIP and AES) - Wireless between the 2 units: radio 868 MHz - Wired to the boiler |
| Food type | Central unit: batteries Receiver unit: 230V mains |
| Dedicated smartphone application | Your Smart / Smart Life |
| functions | - Remote temperature control from the mobile application - Daily schedule: 4 time zones per day - Weekly schedule: Monday - Sunday - Local temperature control - Mobile central unit - Anti-freeze - Open window detection |
| Operating parameters | - Temperature that can be set: 5 - 35 ° C - Setting step desired temperature: 0.5 ° C - Temperature that can be measured: 0 - 50 ° C - Unit of measurement: ° Degrees Celsius - Sensor sensitivity: ± 0.1 ° C - Hysteresis (Dead Zone): 0.2 ° C |
| Configurable parameters | - internal temperature sensor calibration - minimum and maximum settable temperature - anti-freeze temperature - hysteresis - parameters - open window |

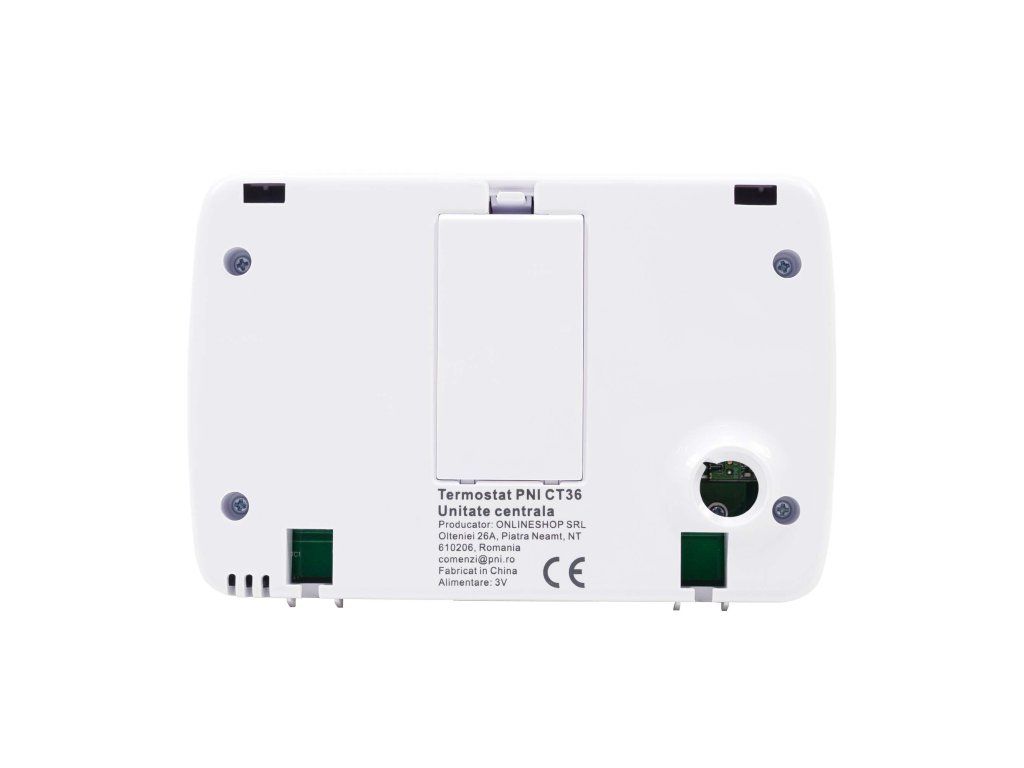

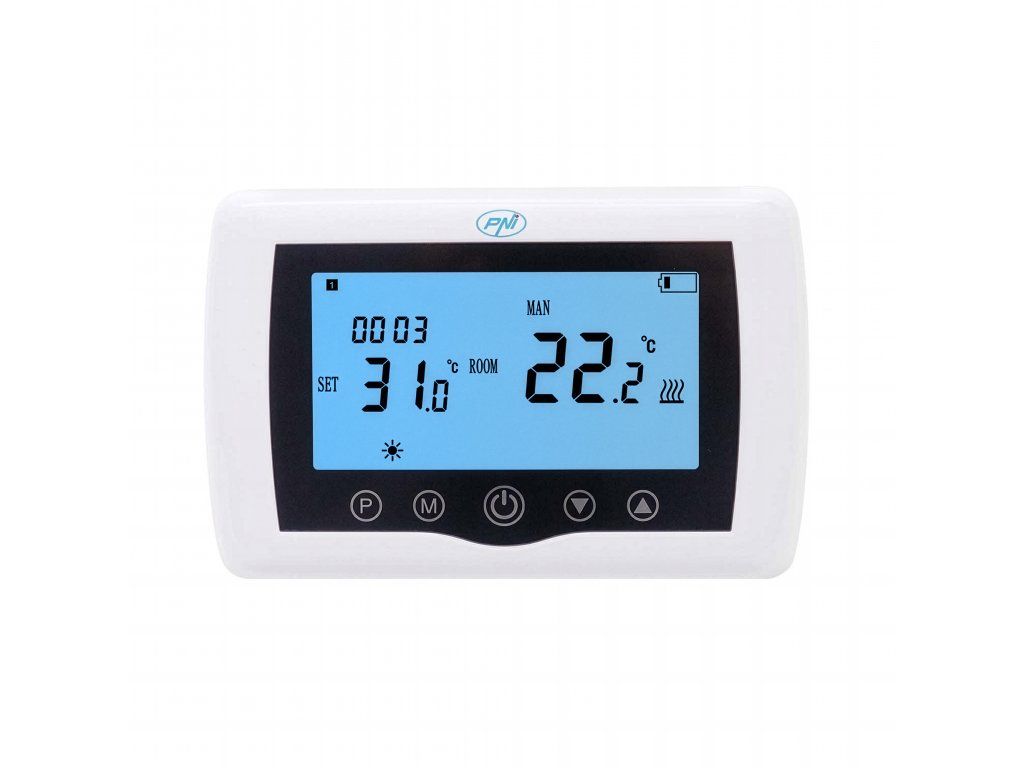

| Central unit features | |
| Screen | 3.7 "lighting |
| feeding | 2 LR3 / AAA batteries (not included) |
| Display parameters | - Measured temperature (in the room) - Set / desired temperature - Current time - Current program - Wireless connectivity status |
| Mounting surface | Wall / Office |

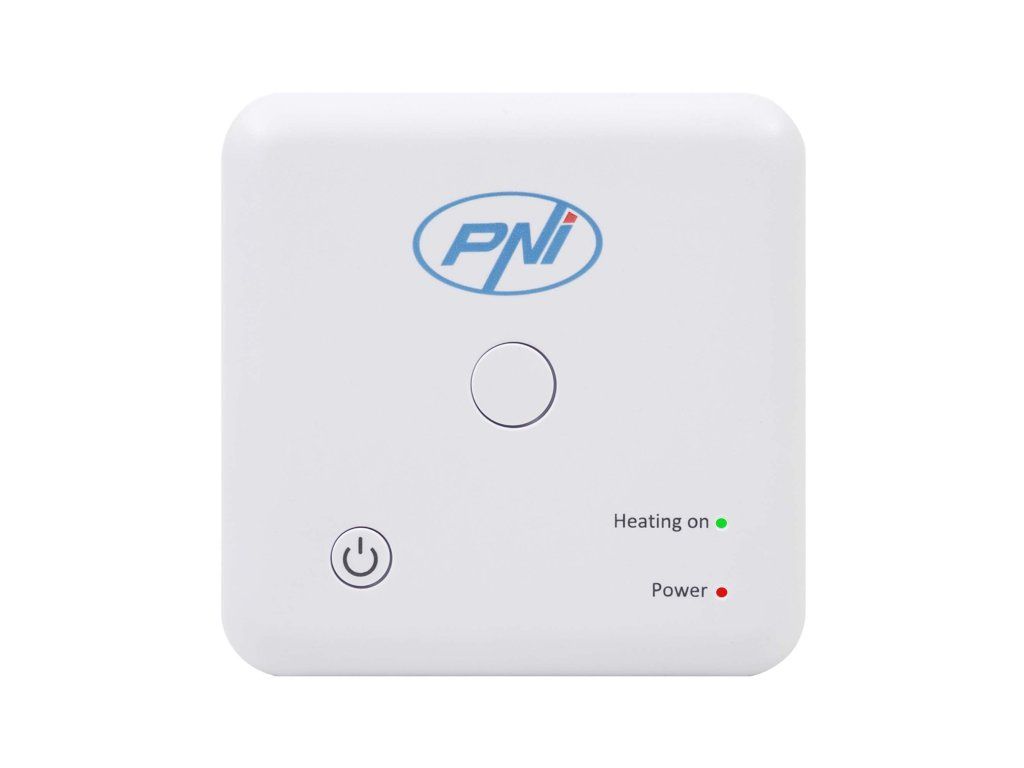

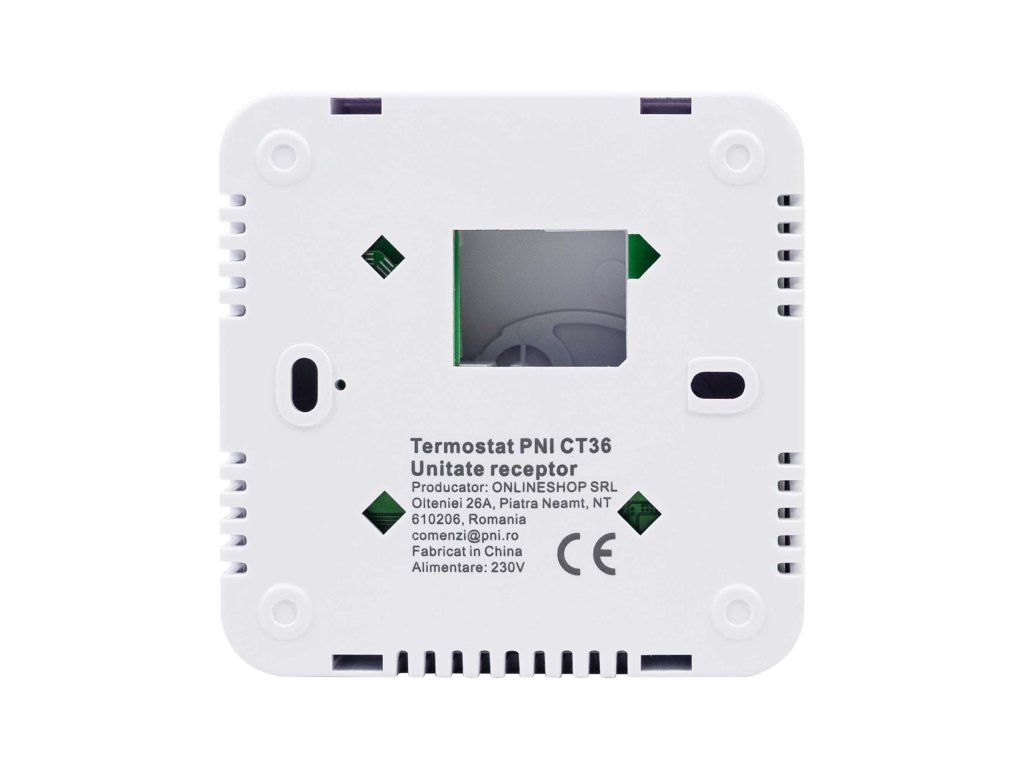

| Receiver unit features | |
| Mounting surface | Wall |
| Communication | - with internet router: WiFi 802.11b / g / n (2.4 GHz) - with central unit: radio 868 MHz - with central heating: wired |
| feeding | 230VAC 50 / 60Hz |
| Central control type | NO / NC relay without potential (non-energized) |
| Relay control circuit parameters (maximum) | 12-240V AC / DC, 10 Amps |
| functions | - 2 multifunctional buttons - 2 status display LEDs - Can close a classic NO (Normal open) control circuit of a thermal power plant that respects the relay parameters |

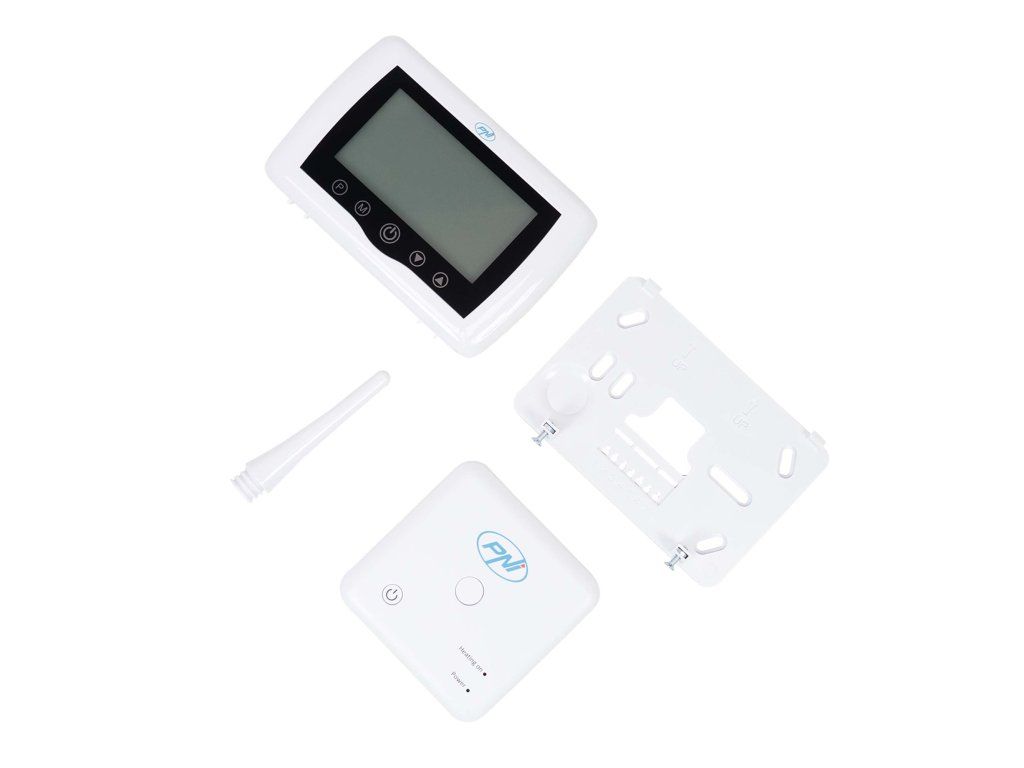

| The package contains | |
| Central unit | Yes |
| Receiver unit | Yes |
| Mounting accessories | - Wall mounting bracket - Desk mounting bracket - Mounting screws |
| User manual | Yes |
Additional parameters
| Category: | Room thermostats and controllers |
|---|---|
| Weight: | 0.369 kg |
| EAN: | 5949066520587 |
