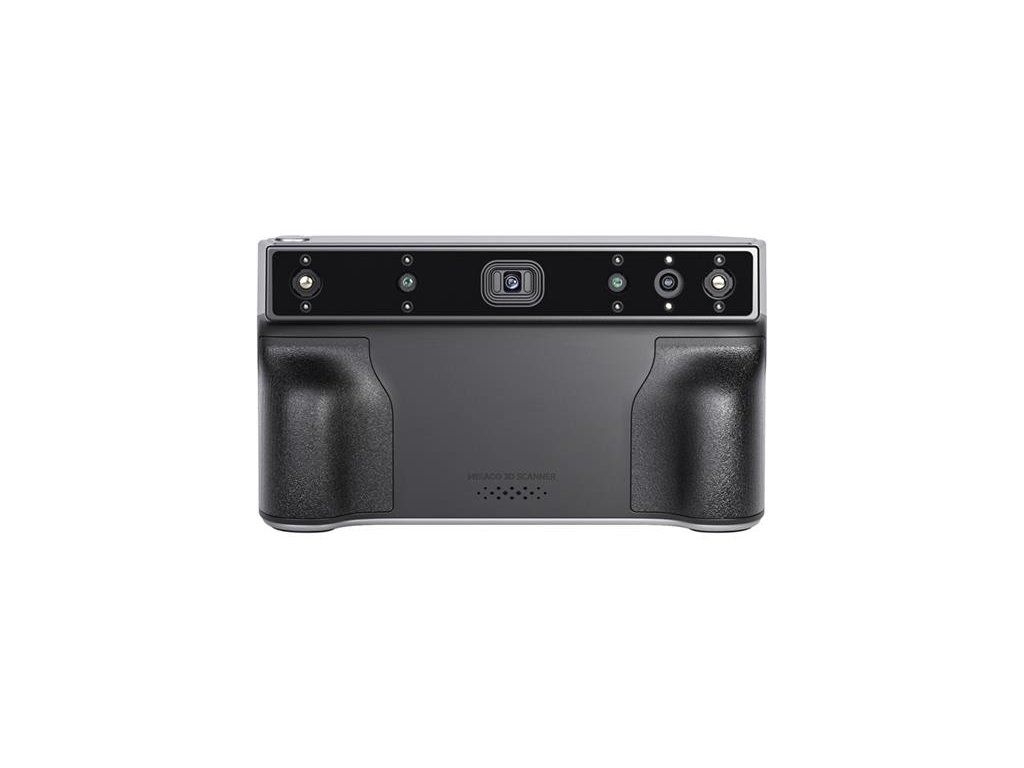

rEVOPOINT Miraco 3D scanner

Product detailed description

Dive into a new era of mobile 3D scanning with the Revopoint Miraco, an ultra-lightweight and fully wireless scanner that runs continuously for up to two hours on a single charge. The four-camera depth system allows seamless switching between fine detail mapping (0.02mm) and high-speed scanning of large objects (0.2mm), available in Single Shot and Continuous Shot modes. A powerful 2.8GHz octa-core processor, 16GB of RAM and 256GB of internal storage can hold up to 10,000 images, while the 6-inch 2K AMOLED screen with 180° adjustment and advanced post-processing features let you work without a computer. Photorealistic colors are provided by the 48MP RGB camera, while the 9-axis IMU, IP45 certification and Wi-Fi 6 guarantee reliability in all conditions. Discover how easy it is to bring reality into the digital world!

Wireless freedom and compact design
Revopoint Miraco revolutionises the approach to 3D scanning, combining unrivalled mobility with a lightweight body weighing just 750g. With a built-in 5,000 mAh battery and 50W fast charging technology, the device operates continuously for approximately two hours, restoring power. This means you can completely forget about cables and stationary workstations - scan wherever you want without compromise.

Endless detail and scale possibilities
Thanks to the Quad Depth Camera system, Miraco seamlessly switches between capturing the smallest elements (e.g. a 33 × 10 × 10 mm bolt) and imaging large objects (e.g. a 600 × 138 × 220 mm muffler). This dynamic combination allows the scanner to maintain surgical accuracy down to 0.02 mm in a single image while scanning larger shapes to within 0.2 mm without having to change equipment or prepare different modes.

Dual-speed image capture
In situations requiring detailed imaging of complex surfaces, single-shot mode eliminates tracking loss and texture contrast issues. Conversely, if speed is a priority, Continuous Shot mode allows you to work at up to 15 frames per second, greatly speeding up the process of creating 3D models of both small and large objects.

Independence without compromise
The Miraco features a 2.8GHz octa-core processor, 16GB of RAM (random access memory, main memory) and a 256GB drive that can store up to 10,000 images, including 4,000 colour scans. Advanced point cloud processing and model editing features are available on the device - you don't need a computer to view scan results. Everything is displayed on the 6-inch AMOLED 2K (Active-Matrix Organic Light-Emitting Diode, an advanced display technology using organic light-emitting diodes) display, which can be adjusted 180° to adjust the image to any measurement situation.

Photorealistic colours and safety features
The 48 megapixel, RGB quality camera used in the Miraco ensures vivid and accurate colour reproduction in both single shot and continuous shooting modes. In addition, the nine-axis IMU (Inertial Measurement Unit, a module that uses accelerometers and gyroscopes to measure the acceleration and angular velocity of an object in space) ensures stable and accurate motion tracking, and the IP45 certification allows operation in temperatures ranging from -10°C to 40°C, so the scanner is ready for extreme conditions. Wi-Fi 6 support and a face scanning function for taking selfies expand the device's uses, making it an invaluable tool for builders, designers and content creators.

Technical parameters:

Technology used: quad infrared camera, structured light
Fusion point distance: 0.05 mm
Accuracy per image: up to 0.05 mm
Single scanning area at the closest distance: 28 × 53 @ 100 mm
Single scanning area at the farthest distance: 975 × 775 @ 1000 mm
Working range: 100~1000 mm
Minimum scan volume: 10 mm x 10 mm x 10 mm
Scan Speed: Up to 15 frames per second
Sensors: nine-axis IMU
Screen: 2K 6" AMOLED display
PROCESSOR: 8-core ARM A76 processor, 2.8 GHz Mali G52 GPU
Memory: 256 GB eMMC
3D light source: class 1 infrared light
Battery capacity: 5000 mAh
Charging power: 50 W
RAM MEMORY: 16 GB DDR4
Camera quality RGB 48 MP
Scanning unusual objects: it is recommended to use a scanning spray to scan transparent, dark or highly reflective objects.
Scanning environment: indoor or outdoor environment
Weight: 750 g
Compatible with 3D printing
Compatible systems:Windows 10/11, macOS
Additional lighting: infrared filler lights, flashing LED lights
Connection methods: USB 3.1 Type-C, Wi-Fi 6
Protection class: IP45
Tracking methods: marking, highlighting
External controls: built-in
Output formats: PLY, OBJ, STL
Operating system: Native Android
Charging speed: 35 minutes to 80%

Contents of the package:

Miraco scanner
tripod
miniature turntable
bust (for scan testing)
turntable cover
power cord for turntable
storage bag
calibration plate for close scanning
"magic pad" x2
wrist strap
uSB Type-C adapter with two inputs
uSB Type-C to C cable (1.8 m)
cleaning cloth
stickers
user manual
