SIGLENT SDM3055 bench multimeter

Product detailed description

SIGLENT SDM3055 bench multimeter

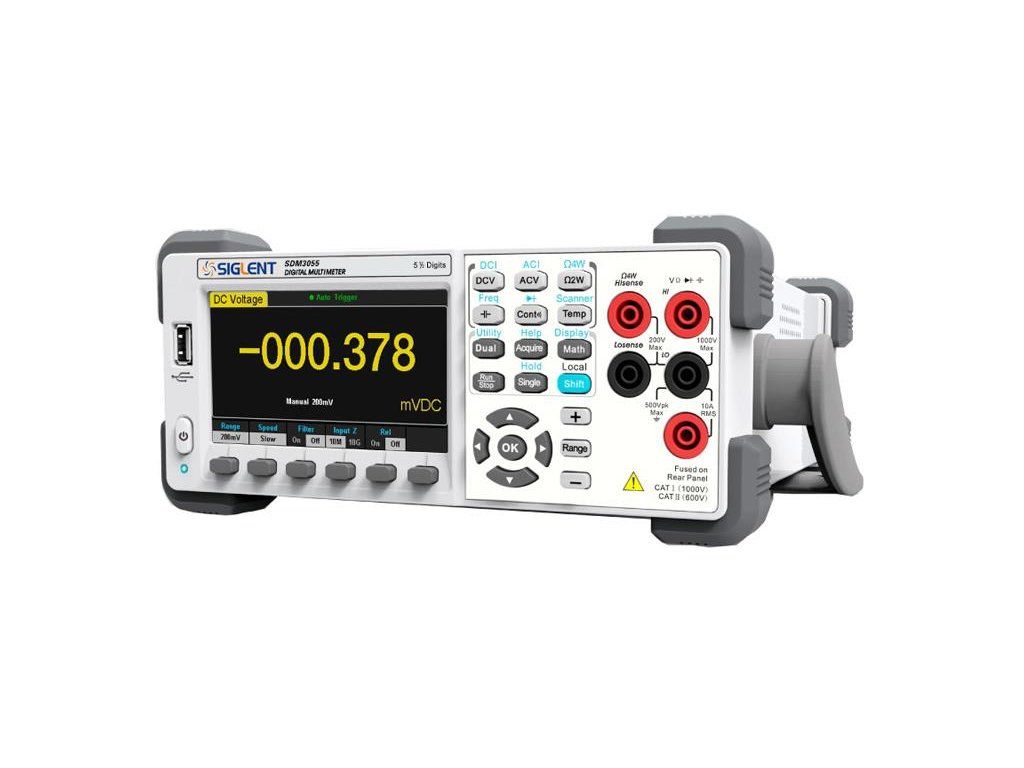

SIGLENT SDM 3055 High Accuracy Laboratory Multimeter

* supports Labview
* high precision, TRMS
* 480x272 colour display
* trend display, large memory 1GB
* high quality of workmanship

SPECIFICATIONS:
DC voltage 200mV-1000V
DC current 20mA-10A
AC voltage (TRMS) 200mV-750V
Alternating current (TRMS) 20mA-10A
Resistance 200Ω-100MΩ
Capacitance 2nF-10000μF

GENERAL CHARACTERISTICS
Display 4.3" TFT LCD, colour, 480x272
Memory 1GB Nand Flash
Connection: USB, LAN

Dimensions: 282x260x105mm
Weight: 3.33kg

Accessories: Power cord, 2 measuring cables, 2 step clamps, USB cable, software CD


For detailed specification, please download the datasheet (next to the main
figure)

For technical questions, please email: siglent@tipa.eu
