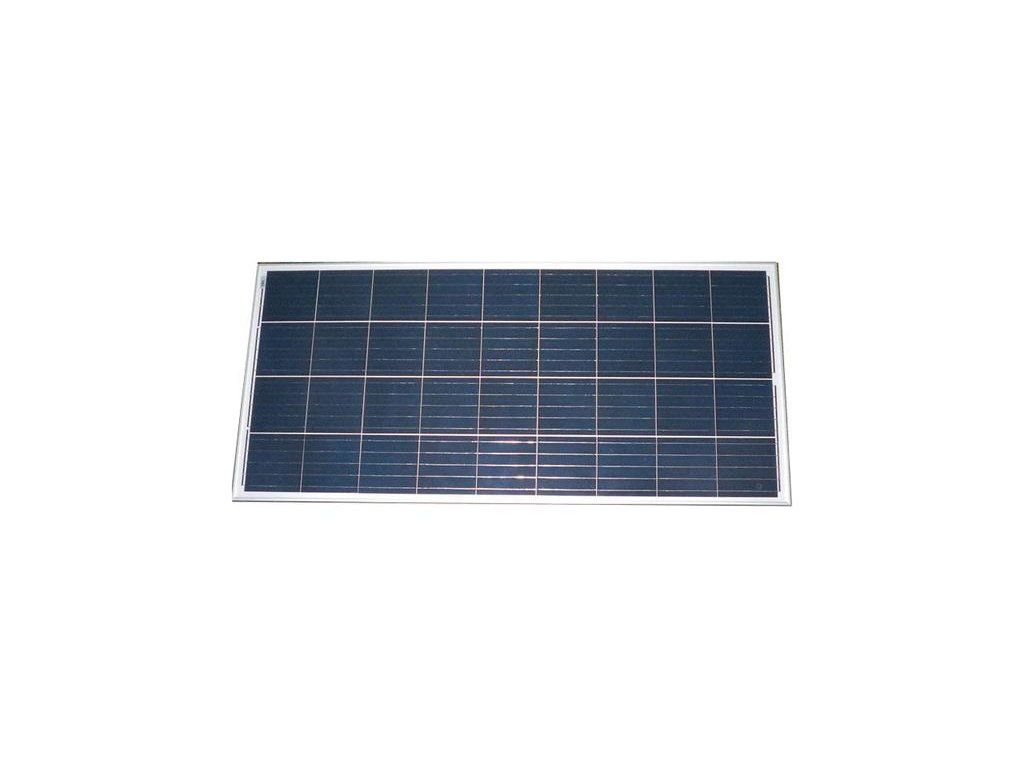

Solar panel 12V/150W polycrystalline

Product detailed description

Photovoltaic panel made of polycrystalline silicon. Duralumin frame 30mm, cover glass.

Polycrystalline cell:
A substrate is made from smaller silicon crystals and compacted into a single unit. The round ingot is then cut into so-called wafers, which are trimmed to the required PV cell size. Understandably, this technology cannot achieve such purity of material, there are visible transitions between the crystals.

Advantages of polycrystal:
Slightly higher production yield from scattered light (adverse lighting conditions)


Technical parameters:

- max. no-load voltage Voc = 22.54 V
- max. short-circuit current Isc = 8,68 A
- max. load voltage 150 W: Vmp = 18.91 V
- max. current at 150 W: Imp = 7.97 A
- max. system voltage: 1000 V
- operating temperature: -45 to +85 °C
- dimensions: 1480 × 680 × 30 mm
- weight: 12kg
