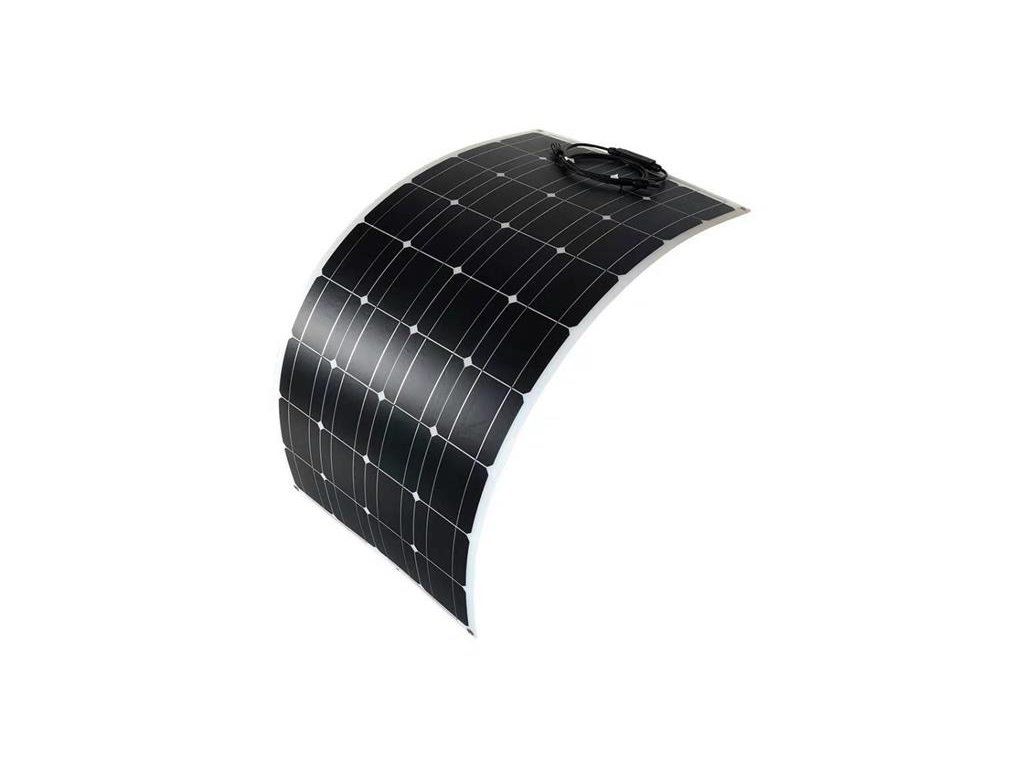

Solar panel MONO FLEX 18V/200W monocrystalline flexible

Product detailed description

The MONO FLEX monocrystalline flexible panel has a cell conversion efficiency of more than 22%. The panel is coated with matt PET film and laminated EVA film. Waterproof, ideal for installation in layouts.

Quality guarantee:
- Electrical insulation test
- Test for resistance to external conditions
- Hot spot test
- UV resistance test
- Test for resistance to temperature changes, hail impact
- Moisture resistance test
- Resistance test
- Mechanical load test

Technical parameters:

- Maximum power Pmax (W): 200W
- Tolerance (%): ± 3 %
- No-load voltage Voc (V): 22.46
- Voltage at maximum output Vmp (V): 18.72
- Current at maximum output Imp (A): 10.68
- Short-circuit current Isc (A): 11.54
- Module efficiency (%): 18
- Solar cell efficiency (%): 22
- Fuse current rating (A): 15
- Protection class: IP65
- Maximum panel field voltage (V): DC1000
- Operating temperature range: -40 °C-85 °C
- Size: 700x1585x3mm
- Weight: 4,6 kg
