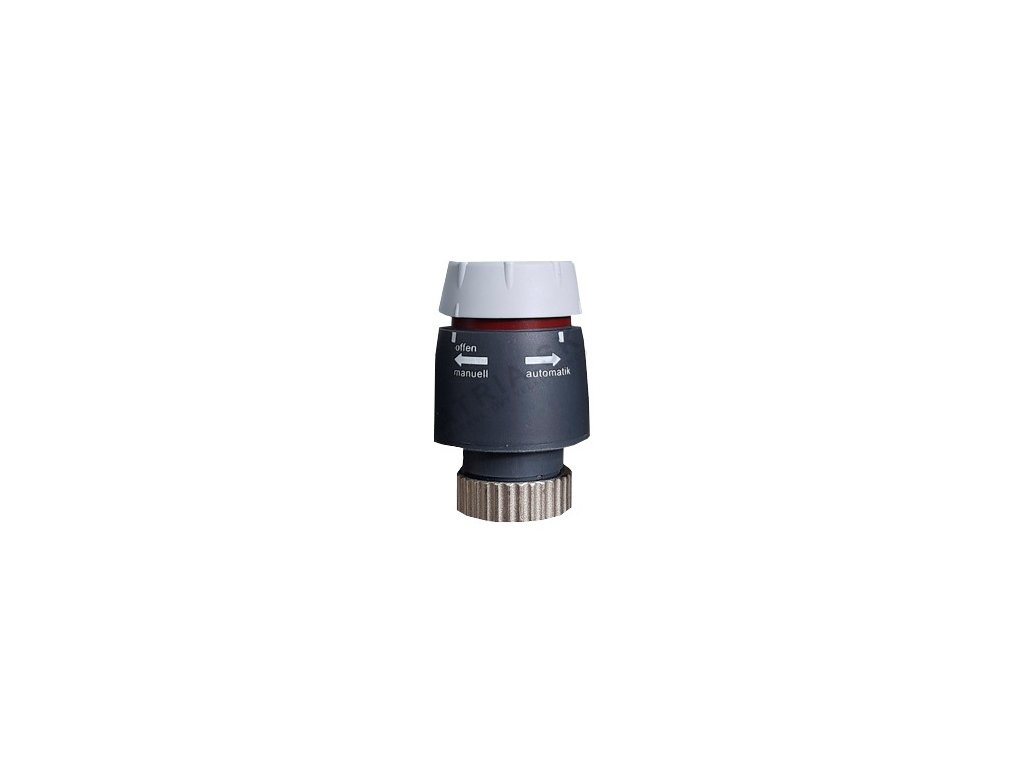

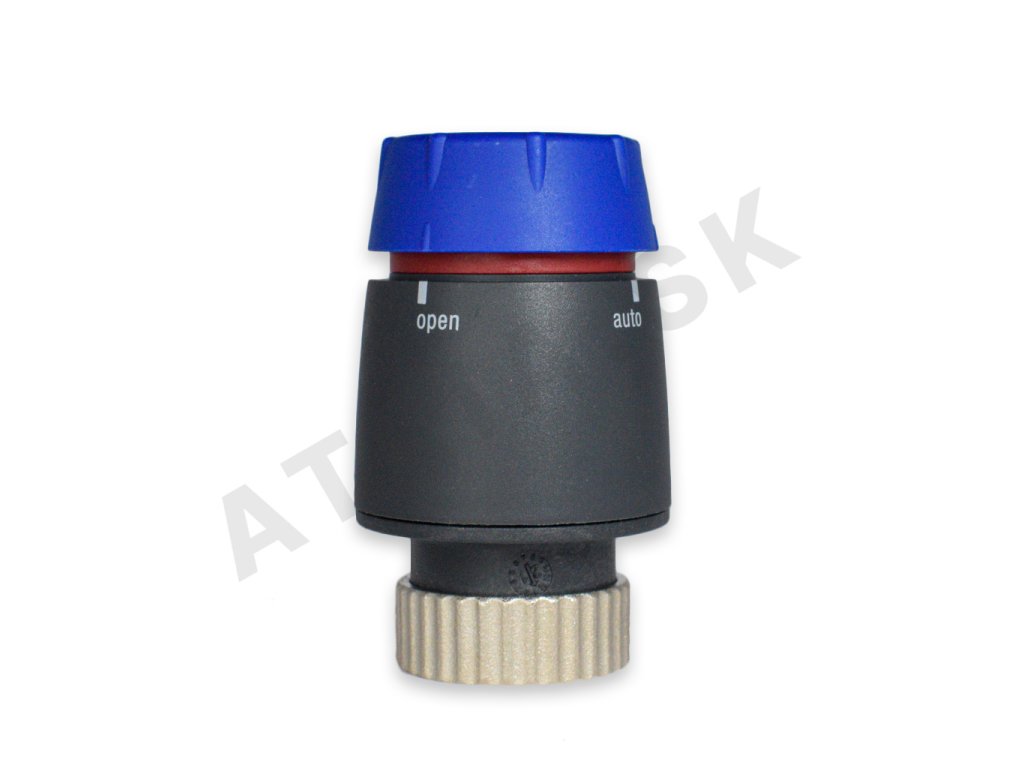

Electrothermal head 230 V

Product detailed description

Electrothermal heads are commonly used in central heating systems to regulate flow through distribution manifolds. Installers working on residential or commercial underfloor heating systems often encounter these components during commissioning or servicing. The device is designed for integration with control systems that manage thermal comfort by adjusting water flow in response to temperature changes. Proper installation ensures efficient system performance and long-term reliability.

When installing in multi-room or zone-based systems, the electrothermal head must be correctly aligned with the manifold and control valve. The 180-second actuation time allows for smooth transitions between heating states, preventing abrupt flow changes that could stress the system. The manual override feature is particularly useful during maintenance or emergency situations, enabling full flow or closure without electrical power.

Technical parameters

Installation and connection

Begin by verifying that the manifold model is either FBH-VL-RL or FBH-S. The electrothermal head requires a threaded M30 x 1.5 connection on the control valve. Ensure the thread is clean and free of debris before tightening the head securely. Route the 0.6 m cable to the control unit, ensuring it is not pinched or exposed to excessive heat. Confirm that the electrical supply is 230 V and that the wiring corresponds to the control system's requirements.

Always double-check the thread engagement and ensure the head moves freely during testing. Verify that the system returns to the closed position when power is removed.

Compatibility and accessories

This electrothermal head is specifically designed for use with FBH-VL-RL and FBH-S distributors. It requires a control valve with an M30 x 1.5 thread for secure mounting. No additional accessories are listed in the technical documentation. When planning a system, ensure that all components are compatible with the same control protocol and voltage requirements.

Technical background for designers

The electrothermal head operates using a bimetallic element that expands or contracts in response to temperature changes induced by electrical current. This movement drives a mechanical linkage that adjusts the valve position, regulating flow through the manifold. The housing is typically made of durable materials suitable for long-term exposure to hot water and varying pressures.

The integration of this component into a larger system depends on the control strategy and the responsiveness required. The 180-second cycle time affects how quickly the system can adapt to changing load conditions. Designers should consider the thermal inertia of the manifold and piping when determining the appropriate actuation speed and control logic.

Service and operation

During routine maintenance, check the head for signs of wear or damage to the mechanical linkage. Ensure the valve opens and closes fully without resistance. Verify that the electrical connections remain secure and that the cable shows no signs of insulation degradation. The manual override function should be tested periodically to confirm it operates smoothly.

Frequently asked questions

Can the electrothermal head be used with other distributor models?
No, it is only compatible with FBH-VL-RL and FBH-S distributors due to specific design requirements.

Is the electrothermal head suitable for high-pressure systems?
There is no specific pressure rating provided in the technical documentation. Refer to the manufacturer’s data sheet for detailed specifications.

How is the manual override engaged?
A dedicated mechanism allows the user to manually open or close the valve fully without electrical input, ensuring access to full flow or complete closure during maintenance.

Can the cable be extended?
The original cable is 0.6 m in length. Extending it may affect signal integrity and is not recommended unless specified by the manufacturer.
