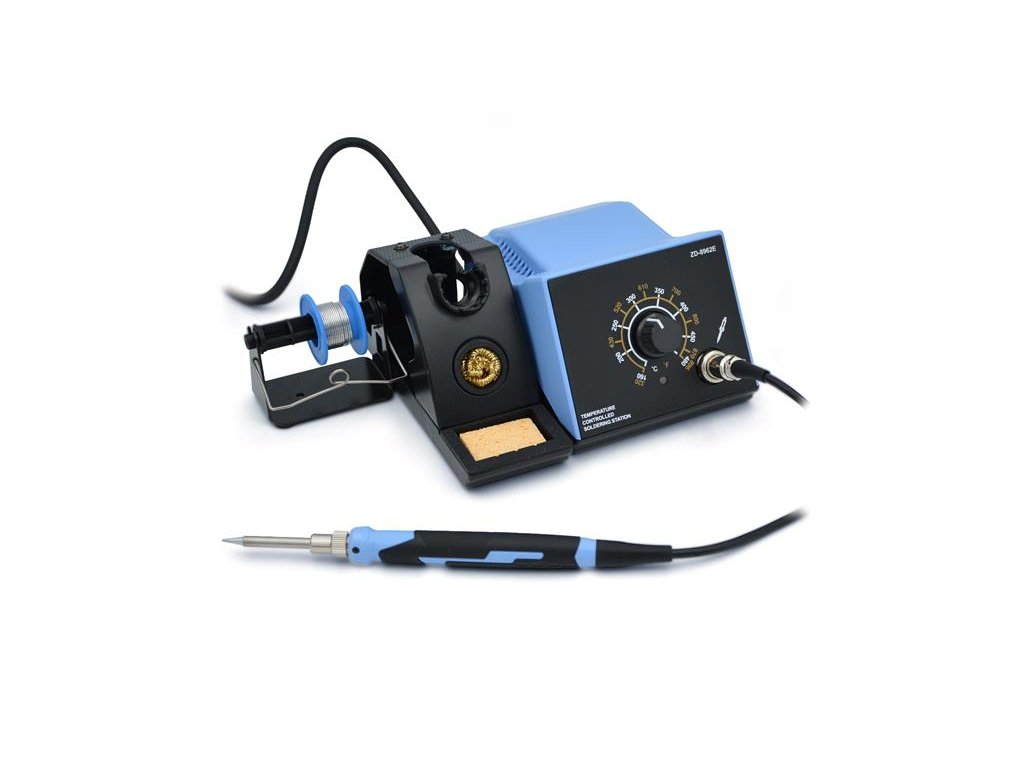

Soldering station ZD-8962E

Product detailed description

Analog soldering station (micro soldering iron) ZD-8962E designed for lead-free soldering with adjustable tip temperature ranging from 160 to 480 ° C is suitable for fine work in electronics, The temperature controller displays the set working temperature of the soldering tip. Fast warm-up in 8 seconds and 70 W power with a temperature range of 160 °C - 480 °C. Ergonomic design with flexible silicone cable and stand for safe storage. Interchangeable tips from the TIP N12-1 to TIP N12-6 range. A copper wire ball and cleaning sponge are supplied for cleaning the tip.
The instrument is designed for use in electronic research, schools and manufacturing, especially in repairing and soldering electronic devices and telecommunication equipment


Product Parameters :

- temperature controller with LED display showing set and current temperature
- quick warm-up: ready to use in 8 seconds
- temperature setting from 160°C to 480° (320℉- 896℉)
- temperature unit conversion (°C/°F)
- ergonomic design: compact and lightweight soldering iron for easy handling
- integrated tip and heating element which is plug and play - easy to change
- two-tone temperature-resistant handle for comfortable grip
- integrated tip that heats up quickly and restores temperature
- automatic sleep mode: about 5 minutes of inactivity will reduce the temperature to 200 °C
- flexible silicone cable - softer and heat resistant
- solder stand + cleaning sponge and tip cleaner for easy tip cleaning while working
- possibility of presetting thermal values using the controller
- freezing °C / °F


Technical parameters:

- power supply : 220 - 240 V AC / 50Hz
- rated power : 70 W
- temperature range : 160 to 480 °C
- soldering tip power supply: 20V
- power cable length 1.3 m
- microprocessor controlled temperature control
- high quality ceramic heating element
- dimension (L x W x H): 115 x 157 x 92 mm
- LED for displaying the heating status:
red LED lights up while the device is heating up
green LED lights up once the set temperature is reached
green LED flashing: indicates Standby mode


Contents of the package:
- soldering station with network cable
- soldering iron with soldering tip
- stand with cable holder
- sponge
- dry cleaner
