Third hand TIPA ZD-11M-4

Product detailed description

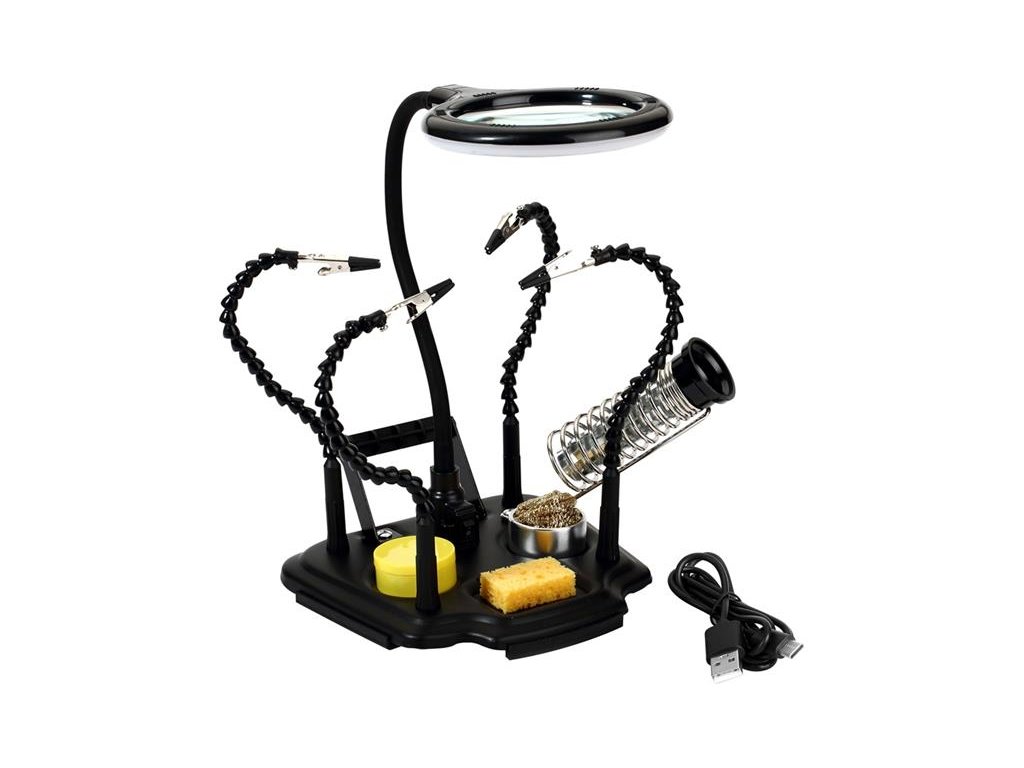

Third hand ZD-11M-4 with LED. Mounting bracket with four-arm magnifier. You can mount a circuit board, jewelry, or simply anything you need to solder, weld, or model to this third arm. It keeps both of your hands free. This is a reliable tool that makes even the most complex tasks easy and rewarding. Thanks to the robust construction and clamps, you fix the material firmly to the work surface without having to hold it by hand, making your work easier and more precise.
Thanks to LED illumination and 3x magnification, the ZD-11M-4 third hand magnifier guarantees excellent visibility of even the smallest details. The glass lens ensures image clarity and the 40 LEDs provide even and bright illumination. The third hand is powered via a 5 V USB-C connector.
The four flexible crocodile-tipped arms allow for any adjustment, which greatly facilitates precise handling when working. Each arm has a length of 270 mm.


Product Parameters:Suitable for household use:

- useful helper for small assemblies
- free hands for work
- universal use: suitable for service interventions, hobby projects and working with electronics
- provides good stability thanks to the favourable centre of gravity position
- 4 adjustable gooseneck auxiliary arms
- stable metal base, low risk of tipping.
- base with non-slip rubber tracks


Technical parameters:

- dimensions approx.: 19 x 17.5 x 29.5 cm
- magnifying glass diameter: 100 mm
- additional lens diameter: 25 mm
- magnification (diopters): 3+12
- lens material: glass
- power: 4 W
- lighting: 40 LED pcs
- light temperature: 6500 K
- luminous flux: 300 lm
- input voltage: DC 5V ( USB-C )
- uSB cable length: 1.0 m
- weight: 1 kg
- packaging: cardboard box

Accessories :
- sponge, dry solder cleaner, rosin, solder holder
