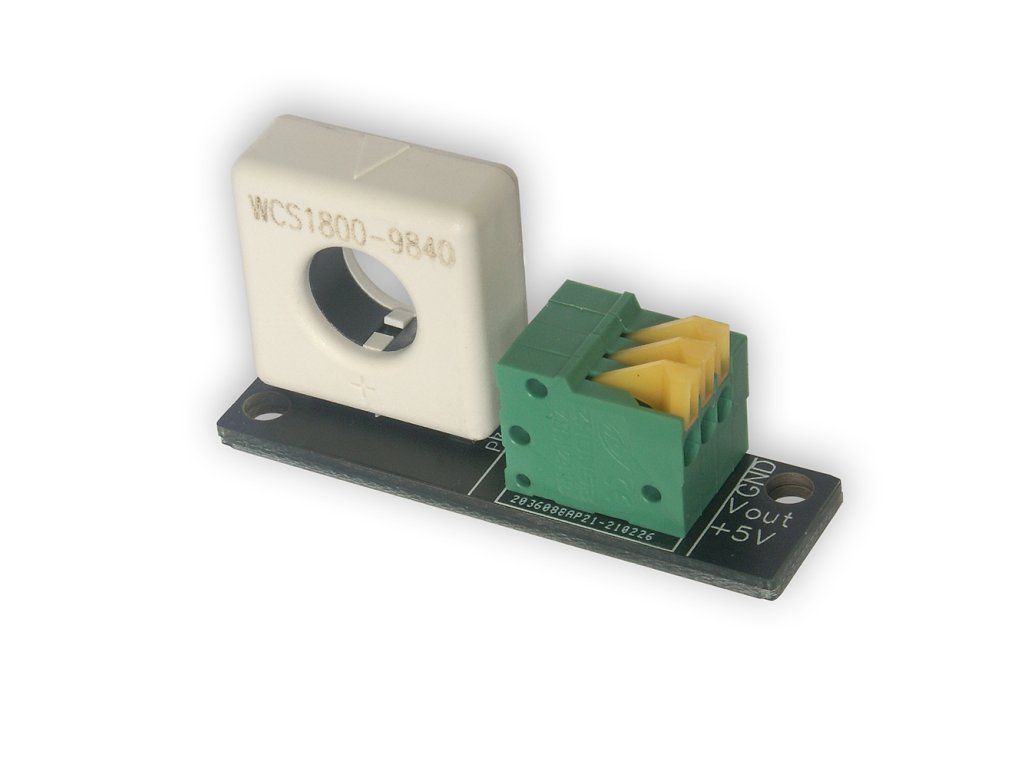

Tinycontrol current sensor up to 35A, for LAN driver v3 +, type WCS1800

Product detailed description

Non-invasive current sensor (WCS1800) for DC current measurement by indirect method. It is designed for LAN driver v3/3.5/4. When using the Lan Controller v3, the sensor should be powered with 3.3 V from the IDC10-1 connector and the INP1-4A input should be used. If using the Lan Controller v3.5+, the sensor should be powered at 3.3 V from the IDC10-1 connector and use the INP3-4A input, or more simply use 5 V and measure at the INP1-2A input. Indications/indicators should be calibrated in the Cal window before use! Product parameters: Current range: 0-35 A Maximum diameter of conductor to be measured: 9 mm Sensitivity: 66 mV/A Insulation voltage: 4000 V Supply voltage (from LAN controller): 3.3 V or 5 V Connection cable length: 50 cm Connector with push-in clamps (with pressure release) for conductors 0.2 ÷ 0.75 mm2 - ideal for twisted pairs
