Avansa 2003 TX

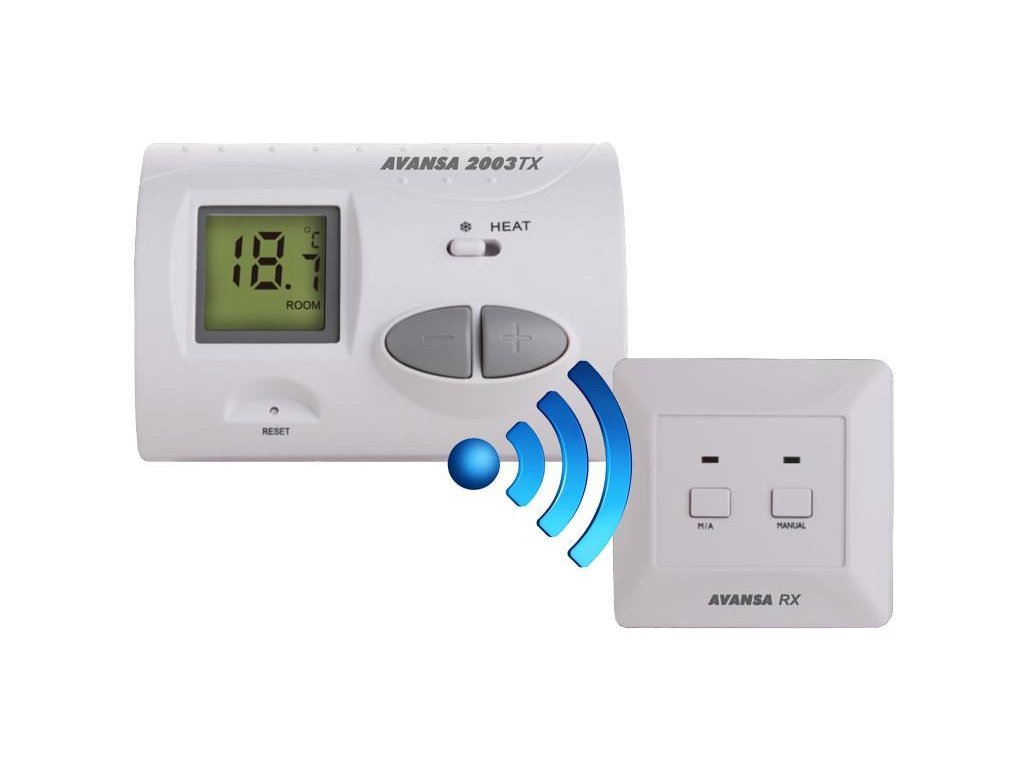

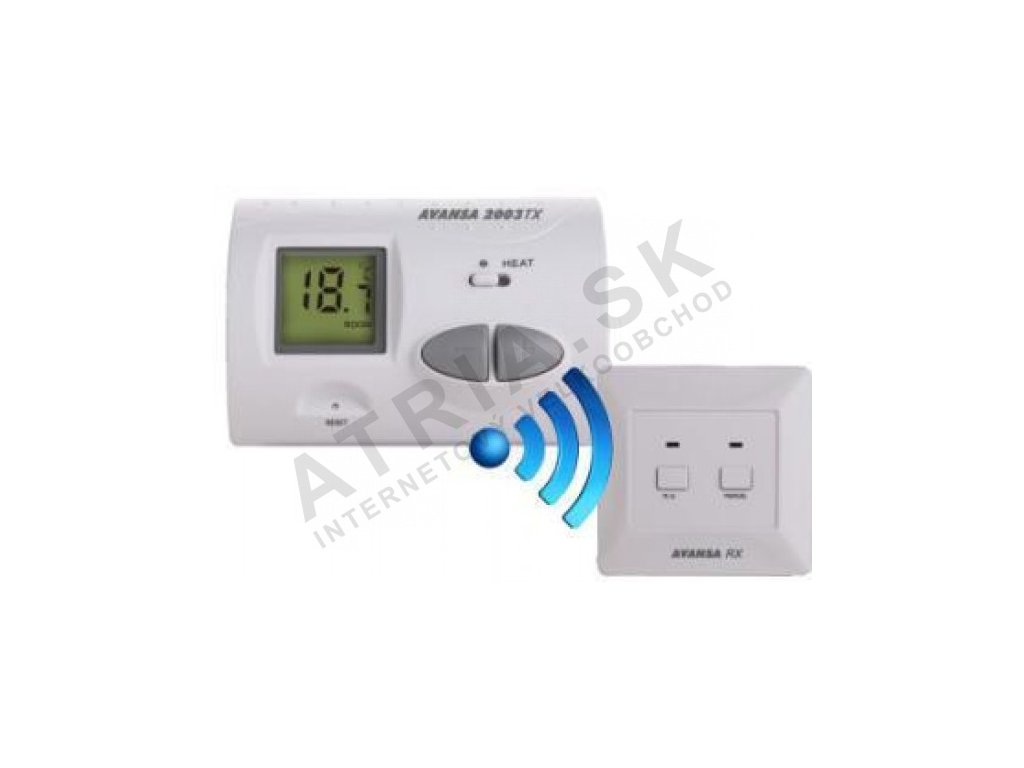

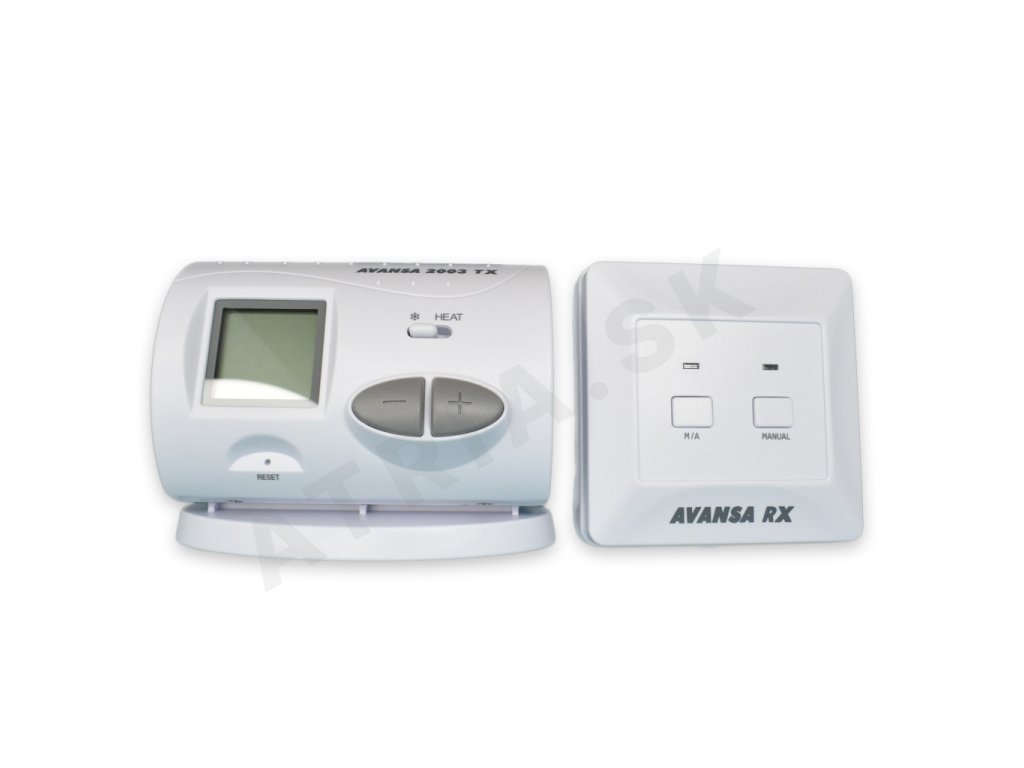

Avansa 2003 TX is wireless non-programmable room thermostatsuitable for regulating most boilers sold in the country. The thermostat can be easily connected to a boiler or to an air conditioner with an operating voltage from 24 - 230 V. The digital display of the Avansa 2003 TX thermostat, compared to simple, traditional thermostats, allows more accurate temperature measurement and adjustment of the necessary data. Based on the selected switch-on sensitivity, the thermostat can switch the boiler on below the set temperature and off above the set temperature. With high comfort, it also ensures a reduction in energy costs. The device has two units. The first is the control unit (thermostat), the second is used to control the boiler. The units are connected by radio frequency, so there is no need to build wiring between the thermostat and the boiler. The thermostat and receiver have their own safety codes, so external signals cannot interfere with their safe operation.

Thermostat technical data:

• Temperature measurement range: 5 - 35 °C (in 0.1 °C steps)
• Set temperature range: 10 - 30 °C (in 0.5 °C steps)
• Temperature measurement accuracy: ± 0.5 °C
• sensitivity of switching: ± 0.2/± 0.3 °C
• Constant temperature in freeze mode: +7 °C
• recommended storage temperature: -10 °C ...+60 °C
• power supply voltage: 2 x1.5 V batteries (LR6 type)
• power: 1.5 mW
• Battery life: about 1 year
• Dimensions: 112 x 75 x 45 mm
• weight: 154 g
• Temperature sensor type: NTC 10k? ±1% at 25°C
• Coverage: IP 30

Receiver specifications:

• 230V AC, 50 Hz
power supply voltage: 230V AC, 50 Hzpower:6 W
• power supply voltage:24V AC/DC...250V AC
• adjustable amperage:6 A (inductive load 2A)
• range: c 50 m
• weight: 150 g

circulation pump wiring example:
