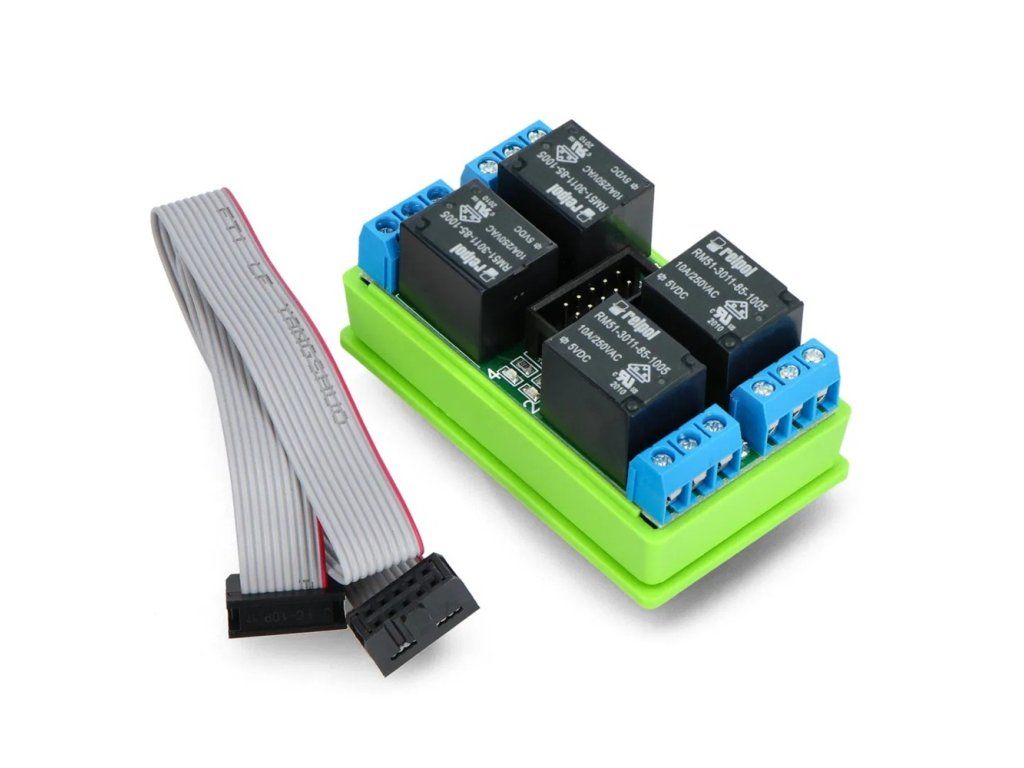

Tinycontrol expansion module for LAN driver v3, 4 x 10A

Product detailed description

Universal relay module for remote control of up to 4 electrical devices via LAN controllers. This professional relay module contains 4 independent relays with switching contacts that allow switching on, off and resetting of connected devices. The module is designed for compatibility with LK4, LK3.5+ (including LK3.9), LK3.0 and LK2.5 series LAN controllers via the standard IDC10 connector. The device uses high quality relays from the Polish company Relpol, which are characterized by increased resistance to overvoltage. Special contact design with automatic metal oxide removal at each switching ensures long-term trouble-free operation even in demanding applications. - Includes 4 independent relays with switching contacts (SPDT) - Compatible with LK4, LK3.5+, LK3.0 and LK2.5 series LAN controllers - AgSnO2 alloy contacts for reliable switching - Low contact resistance of less than 100 m? - LED status indication of individual relays - DIN rail mountable with included bracket - Connection wire cross section 1.5 mm2 High reliability and robustness The module uses high quality relays with AgSnO2 alloy contacts, which are ideal for switching loads of different nature. The special design of the contacts ensures a self-cleaning effect at each switching, which significantly extends the lifetime of the entire device. Wide application possibilities The relay module is suitable for controlling various types of electrical equipment such as lighting, heating systems, fans, pumps or motor drives. Thanks to the switching contacts (C, NO, NC), it offers flexibility in implementing different switching scenarios. Complete package Included in the delivery is a 30 cm interconnecting cable with 2× IDC10 connectors and a housing with bracket for mounting on a standard DIN rail, which facilitates installation in control cabinets and technical rooms. Technical parameters: Number of relays: 4 Compatibility: LK4, LK3.5+ (including LK3.9), LK3.0, LK2.5 Input: IDC10 connector (ribbon) for connecting LK4 Relay outputs: C, NO and NC Contact configuration: SPDT (switching) Contact material: AgSnO2 Rated load current: 10A/250V (AC-1), 20A/125V (AC-1), 10A/30V (DC-1) Contact resistance: < 100 m? Connection wire cross section: 1.5 mm2 DIN rail mounting: yes Physical characteristics Design DIN rail mounted Application Indoor Weight [g] 72 Depth [mm] 71 Width [mm] 42 Height [mm] 32
