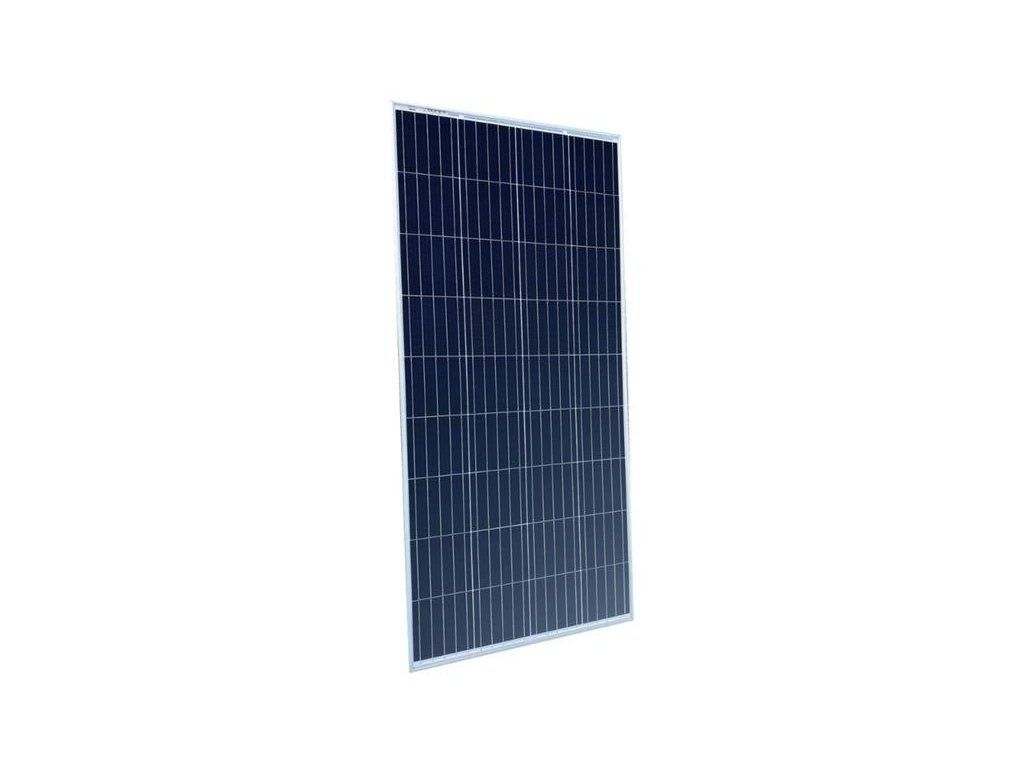

Victron Energy 12V/175W polycrystalline solar panel

Product detailed description

Solar panel Victron Energy 175Wp / 12V
BlueSolar 175Wp-12V series 4a polycrystalline solar panel with a peak output of 175Wp, for systems with an operating voltage of 12V.

Main characteristics:
- low voltage-temperature dependence increases the efficiency of operation at high temperatures
- exceptional low-light performance and high light sensitivity across the solar spectrum
- 25-year limited warranty on output power and operating parameters (10 years 90% + 25 years 80% of output power)
- enclosed watertight multifunctional junction box provides a high level of security
- powerful by-pass diodes limit the power drop when shaded
- sturdy anodized aluminium frame facilitates roof mounting of panels in a wide variety of mounting systems
- high clarity tempered glass of the highest quality exhibits increased rigidity and impact resistance
- pre-wired quick connect system with MC4 connectors
- advanced EVA (ethylene vinyl acetate) encapsulation system with three-layer protective film meets the most stringent safety requirements for high voltage equipment


Basic technical parameters:
Operating voltage: 12V
Peak power: 175W
Dimensions: 1485x668x30mm
Weight: 11 kg
Connection: the solar panel is equipped with two cables plugged into the terminal block on the back. The cables are about 90cm long and are terminated with MC4 connectors.
