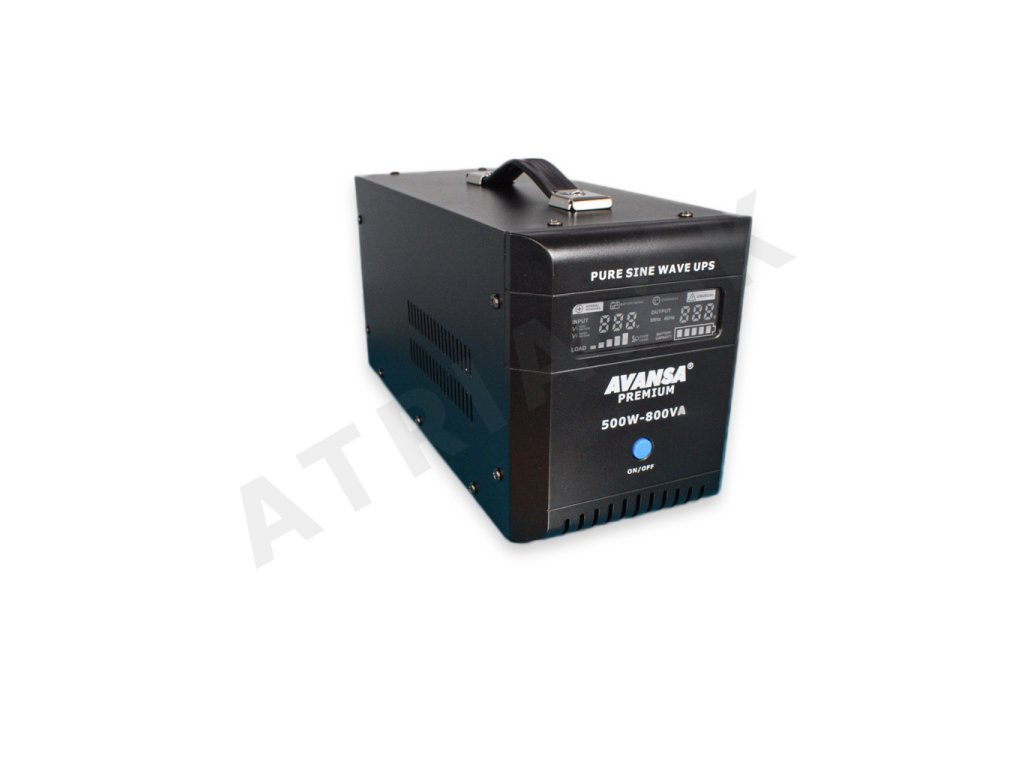

Avansa 500 W

Product detailed description

Backup power supplies are essential in systems where uninterrupted operation of circulation pumps is critical. These units are commonly installed in residential and commercial heating systems, ensuring that pumps continue to function during mains power outages. Installers typically work with these devices in central heating systems, solar thermal installations, and other applications where pump reliability is crucial. The Avansa 500 W is designed to provide stable and continuous power to low-power circulation pumps, ensuring system integrity during power failures.

When installing a backup power supply, it is important to consider the load requirements of the connected equipment. The Avansa 500 W is suitable for use with devices that have a combined maximum power consumption of approximately 250 W. This makes it ideal for smaller systems or as part of a larger backup strategy. The unit is compact and designed for wall or cabinet mounting, making it suitable for installations with limited space.

Technical parameters

The technical parameters of the Avansa 500 W are essential for determining its suitability for specific applications. The rated power of 500 W and maximum capacity of 800 VA indicate the maximum continuous and peak power the unit can deliver. The input voltage range of 150–270 VAC allows for flexibility in mains power conditions, while the 12 V DC battery input requires an external battery with a maximum capacity of 120 Ah. The switching time of less than 4 ms ensures minimal disruption to the connected load during power transitions.

Installation and connection

Installation of the Avansa 500 W involves connecting it to the mains power supply and the circulation pump, as well as an external 12 V DC battery. The unit should be mounted in a dry, well-ventilated location to ensure proper heat dissipation. The input and output connections are standard electrical terminals, and the installer must ensure that all connections are secure and insulated to prevent short circuits. It is important to verify that the battery is correctly rated for the system and that the polarity is correct to avoid damage to the unit.

Common installation mistakes include using an undersized battery or connecting the unit to a load that exceeds its rated power. To avoid these issues, the installer should carefully review the technical specifications and ensure that the connected equipment is within the unit’s capacity. The unit also features overload protection, which activates at 110% and 130% of the rated load for up to 30 seconds, providing additional safety during operation.

Compatibility and accessories

The Avansa 500 W is compatible with a wide range of circulation pumps that operate within the specified power limits. It is designed to work with 12 V DC batteries, which must be purchased separately. The unit does not include a battery as part of the standard package, so the installer must ensure that a suitable battery is available for the system. The battery should have a capacity of up to 120 Ah to provide sufficient runtime during power outages. No additional accessories are included with the unit, so the installer must provide all necessary components for a complete installation.

Technical background for designers

The Avansa 500 W operates by converting AC power from the mains supply into DC power for the battery and then back to AC power for the connected load. This process ensures that the connected equipment continues to operate during power outages. The unit is constructed with durable materials that are suitable for use in industrial and commercial environments. The design allows for efficient heat dissipation, which helps to prolong the service life of the unit. The integration of the unit into the system depends on the load requirements and the available battery capacity, which must be carefully calculated to ensure optimal performance.

The efficiency of the unit is influenced by the quality of the battery and the load characteristics. A higher capacity battery will provide longer runtime during power outages, while a lower load will reduce the rate of battery discharge. The unit’s overload protection helps to prevent damage to the system in the event of a fault, ensuring that the connected equipment remains protected. The switching time of less than 4 ms ensures that the connected load experiences minimal disruption during power transitions.

Service and operation

The Avansa 500 W requires minimal maintenance during normal operation. The unit should be inspected periodically to ensure that all connections are secure and that there is no sign of overheating or damage. The battery should be checked regularly for signs of corrosion, leakage, or reduced capacity. If the battery is found to be degraded, it should be replaced to ensure that the unit continues to provide reliable backup power. No specific service intervals are provided in the technical data, so the installer should follow standard maintenance practices for electrical equipment.

Frequently asked questions

Can the Avansa 500 W be connected to a 12 V DC battery with a capacity higher than 120 Ah?
No, the unit is designed to work with a maximum battery capacity of 120 Ah. Using a higher capacity battery may exceed the unit’s specifications and could lead to performance issues or damage.

Can the Avansa 500 W be used with multiple circulation pumps?
Yes, but the combined power consumption of all connected pumps must not exceed the unit’s rated power of 500 W. The installer must ensure that the total load is within the specified limits to avoid overloading the unit.

Can the Avansa 500 W be used in a system with a variable frequency drive?
Yes, provided that the total power consumption of the system does not exceed the unit’s rated power. The unit is designed to handle standard AC loads and should be compatible with most types of circulation pumps and drives.

Can the Avansa 500 W be used in a system with a solar power supply?
Yes, but the solar power supply must be compatible with the unit’s input voltage range of 150–270 VAC. The installer must ensure that the solar system is properly configured to provide stable power to the unit during normal operation.
