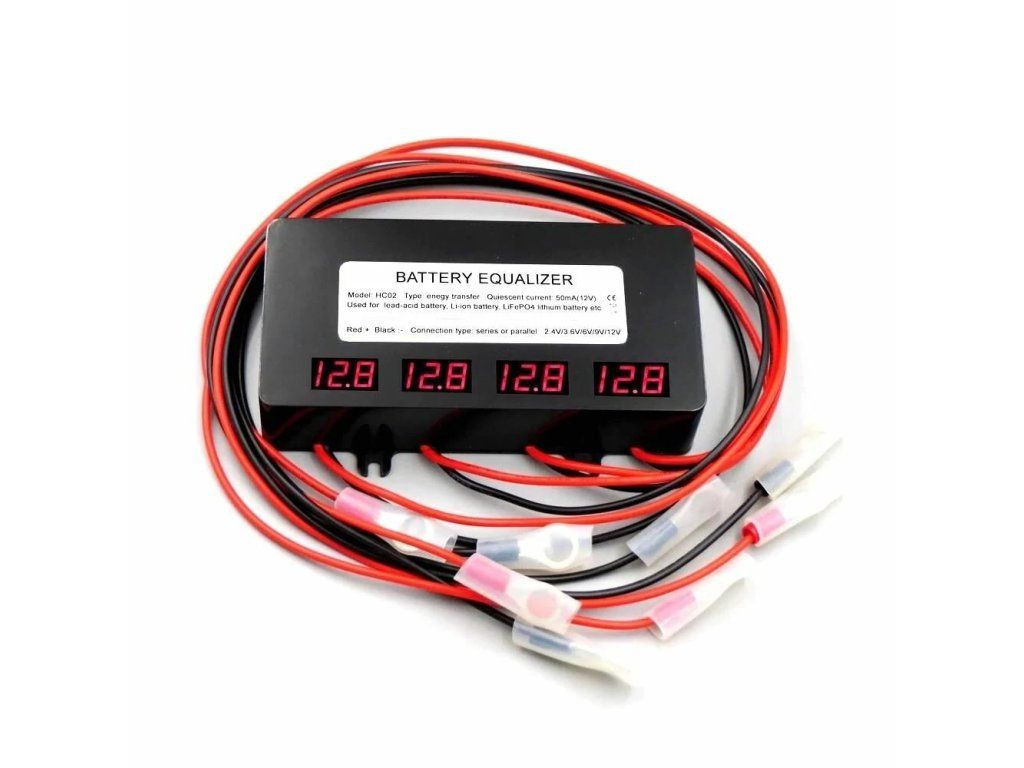

Balancer Carspa HC02 for 4 12V batteries with display

Product detailed description

Active battery balancer HC02 is designed for all types of rechargeable cells or batteries (lead and lithium - LiFePO4) with voltage from 2.4 to 12V. The balancer maintains the voltage balance between batteries that are connected in series. One balancer can be connected to up to 4 batteries at the same time. Model equipped with a display for visual checking of the current values. Functions and features Battery protection The battery equalizer has an intelligent voltage balancing system that keeps the battery at rest and automatically shuts off when the voltage is insufficient to extend battery life. Automatic balancing The battery equalizer can be operated to maintain charge and discharge equalization between batteries connected in series over a long period of time. Longer service life The balancer supports balancing in the charge and discharge direction and provides reverse polarity protection, low voltage isolation and reconnection protection to extend battery life. Preservation of protection Individual current protection for each connected pin in the form of a screw-in sleeve for the included fusible link. Suitable batteries Compatible with lead-acid, lithium, nickel-metal hydride and lithium iron phosphate batteries as well as other battery types. Versatile use Ideal for battery arrangements in automobiles, boats, motorcycles, solar systems and other devices. When two or more battery blocks are connected in series, the voltage of the blocks can be different when charging and discharging. Cyclic operation causes the battery voltage to be different from one block to the next. One battery has a higher voltage and one battery has a lower voltage. This condition causes irreversible damage to both batteries. The battery balancer balances the batteries with each other - balancing to a maximum voltage difference of 10mV between the batteries. This will improve the performance and life of the batteries connected in the battery pack. The balancer operates at high frequencies, therefore it may emit high frequency sound during operation, so it is not suitable for residential areas. Technical specifications: Weight: 0.3 kg Designed for: 4x 2.4/3.6/6/9/12V batteries (series connection) For batteries: lead acid and lithium Balancing current (A): 0-10 Quiescent current (mA): (12V) 1.2 (2.4V) Dimensions (mm): 62x124x27 Protection: against reverse polarity Low voltage disconnection (V): 1.8 Certifications: CE/RoHS
