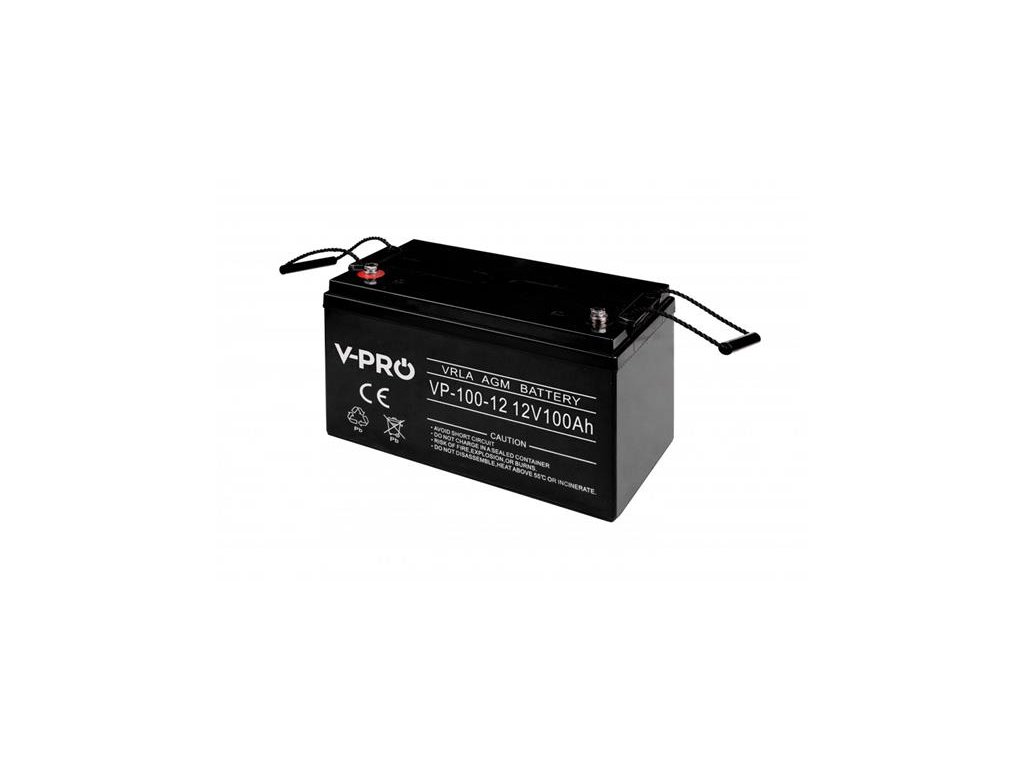

Battery AGM 12V 100Ah V-PRO

Product detailed description

WARNING: This product, due to its weight, falls into the category of oversized goods for which special transport must be arranged. The delivery time may therefore be extended to 3-4 days.

The VPRO series battery is designed for, among others: for powering emergency power systems (UPS, automation systems), photovoltaic installations or voltage converters. It works best in balancing charging systems. It can also be used in applications where the battery operates cyclically. For a depth of discharge of up to 50%, it has about 600 duty cycles. Design life (25°C): 8-10 years.

- Internal structure based on glass fiber separators in which the electrolyte is concentrated
- Automatic sealing system. When the pressure inside the accumulator is too high, the valves open, causing the resulting gas to be safely vented outside the casing and preventing damage. This situation occurs when the battery is overcharged
- The battery case is made of ABS material, the cells are made of copper

What devices are powered by VPRO batteries?
- Emergency power systems (UPS, automation systems)
- Photovoltaic installations
- Voltage converters
- Alarm systems
- Access control systems
- Power supply for cash registers
- CCTV systems
- Telecommunication systems
- Backup lighting systems
- Power supply for medical technology
- Power supply for scooters, mopeds
- Power supply for electric toys

Why use a VPRO battery?
- Does not require refilling or replacement of electrolyte
- Works in any position
- High efficiency and performance
- Long service life 8-10 years
- High resistance to mechanical damage and high temperatures
- Safe to use (no electrolyte leakage)

Technical parameters:

- Rated voltage:12V
- Nominal capacity:100Ah
- Overall height:218 mm
- Height:213 mm
- Width:173 mm
- Length:331 mm
- Weight: 27.7 kg (61.06 lbs) ± 3%
- Capacity (at 25°C) 10h (10.8V): 100Ah
- Capacity (at 25°C) 5h (10.5V): 80Ah
- Capacity (at 25 °C) 3h (10.8 V): 71.4 Ah
- Capacity (at 25°C) 1h (9.6V): 60Ah
- Internal resistance (at 25°C): 4.3 mΩ
- Capacity: (40 °C): 102 %
- Capacity (25°C): 100%
- Capacity (0°C): 85%
- Capacity (-15°C): 65%
- Self-discharge (25°C) 3 months: 91% of rated capacity
- Self-discharge (25°C) 6 months:82% of rated capacity
- Self-discharge (25°C) 12 months:64% of rated capacity
- Recommended working temperature: 25 ± 3 °C
- Operating temperature range - discharge: -15 °C to 50 °C
- Operating temperature range - charging: -10 °C to 50 °C
- Operating temperature range - storage: -20 °C to 50 °C
- Buffer charging voltage (25°C): 13.5 VDC-13.8 VDC
- Cyclic charging voltage (25°C): 14.4 VDC-14.7 VDC
- Maximum charging current:30A
- Maximum discharge current:800A
- Design life (25°C): 8-10 years
