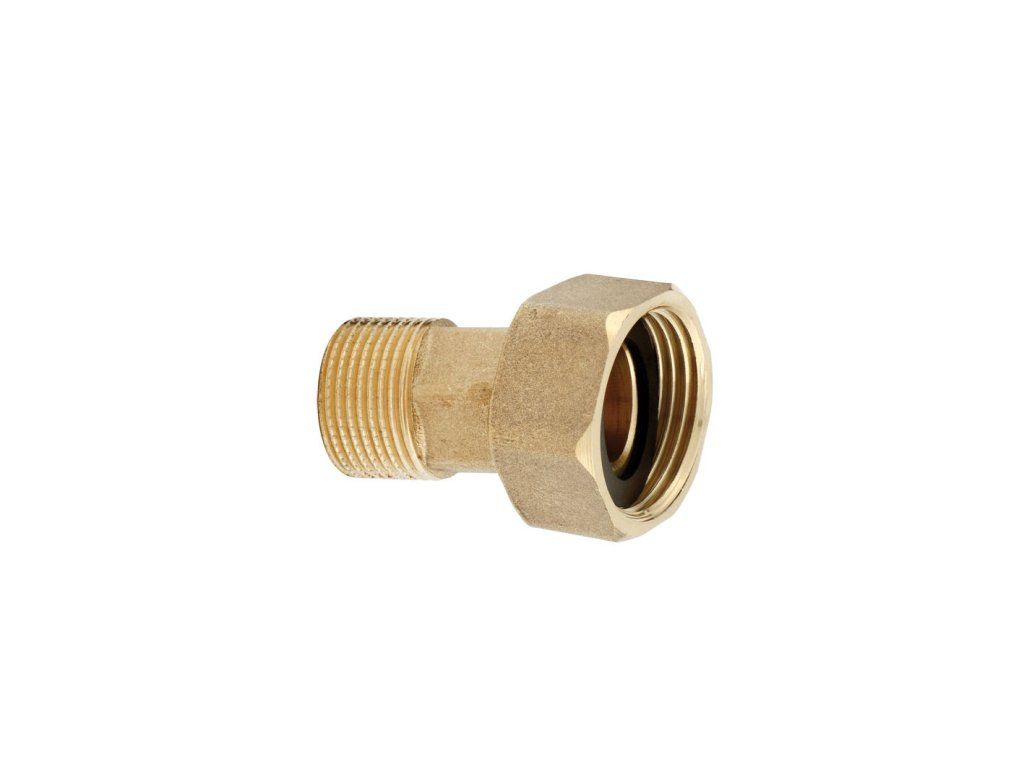

Brass water meter connector with gasket, 1/2"
Code: PW.15Product detailed description
This connector seats a water meter into the pipe run on the smaller DN15 (1/2'') size, with a G1/2 thread on one side and a G3/4 union nut on the other to match a typical domestic water meter body. The gasket is included, so the fitting is ready to install without sourcing a separate seal.
- Material: brass
- Connections: G1/2'' x G3/4'' (DN15)
- Overall length: approx. 45 mm
- Nominal pressure: 10 bar
- Max. working temperature: 95°C
- Media: hot and cold water
- Gasket included
A declaration of conformity is issued for the valve, and the connector carries a 2-year warranty.
Additional parameters
| Category: | Accessories |
|---|---|
| Warranty: | 2 roky |
| Weight: | 0.07 kg |
| EAN: | 5900308730560 |
| Typ dielu: | Prípojka (konektor) vodomeru |
| Materiál: | Mosadz |
| Pripojenie 1: | G1/2'' |
| Pripojenie 2: | G3/4'' |
| Menovitá svetlosť: | DN15 |
| Dĺžka: | cca 45 mm |
| Max. tlak: | 10 barov |
| Max. teplota média: | 95°C |
| Tesnenie v balení: | Áno |
| EAN: | 5900308730560 |
| Záruka: | 24 mesiacov |
