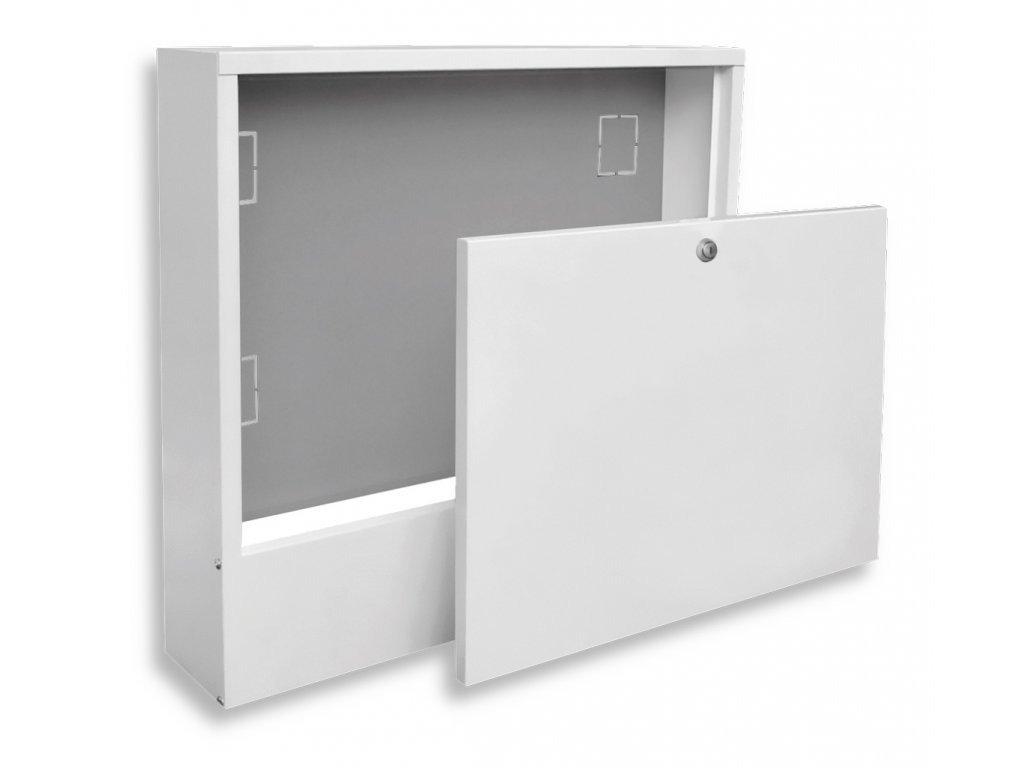

Cabinet for distributors 615 mm - overhead

Product detailed description

Overhead cabinets for heating distributors are commonly used in residential and commercial buildings to house and protect manifold systems for underfloor heating or central heating applications. These cabinets are typically mounted on walls in utility rooms, technical areas, or behind false ceilings. Installers working on radiant heating systems or multi-zone heating layouts often use such cabinets to ensure a clean and accessible installation. The AVANSA 1220HPX is specifically designed for overhead mounting, allowing for integration into ceiling spaces or above floor level while maintaining a compact footprint. The adjustable height and depth settings accommodate variations in floor levels and ceiling heights, ensuring a secure and level fit in different installation environments.

The AVANSA 1220HPX is suitable for systems with up to 8 heating circuits or 7 circuits with a pump. The cabinet is intended for use with AVANSA distributors and must be selected based on the specific distributor model and circuit count. It is not a universal housing but is part of a coordinated system of cabinets designed for different distributor sizes.

Technical parameters

Dimensions	615 x 580 x 120 mm (width x height x depth)
Finish	White enamel
Code	1220HPX
Brand	AVANSA

The internal dimensions of the cabinet are critical for determining compatibility with the distributor. The width must be sufficient to accommodate the distributor's body, while the height and depth allow for proper clearance for pipe connections and pump integration where required. The model 1220HPX is suitable for distributors with up to 8 circuits or 7 circuits with a pump. The finish in white enamel provides corrosion resistance and a clean appearance suitable for technical spaces.

Installation and connection

The AVANSA 1220HPX is mounted on a wall using either a snap-in or screw-fixed method. The installation process involves measuring the wall surface, marking the mounting points, and securing the cabinet with appropriate fasteners. The adjustable height and depth settings allow for fine-tuning to match floor or ceiling levels. It is important to ensure that the cabinet is level and that the mounting surface is stable and load-bearing. Common installation errors include incorrect alignment, which can lead to uneven pipe connections, and failure to account for the 50 mm reduction in internal width when calculating the required cabinet size. Before final installation, the cabinet should be checked for damage and the lock mechanism should be tested for smooth operation.

Compatibility and accessories

The AVANSA 1220HPX is compatible with AVANSA distributors that support up to 8 circuits or 7 circuits with a pump. It is essential to match the cabinet size with the distributor model to ensure proper fit and functionality. Accessories such as the distributor, pump (if required), and mounting hardware are not included and must be ordered separately. The nickel-plated lock is standard, but additional locks or security features are not available for this model. The cabinet is not compatible with third-party distributors or systems outside the AVANSA product range.

Technical background for designers

The AVANSA 1220HPX is constructed from durable materials suitable for long-term use in technical environments. The white enamel finish provides resistance to corrosion and wear, making it suitable for both dry and moderately humid conditions. The cabinet is designed to integrate with AVANSA heating distributors, which are typically used in underfloor heating systems or multi-zone heating layouts. The adjustable height and depth settings allow for flexibility in installation, accommodating variations in building structures. The nickel-plated lock ensures secure access to the distributor, preventing unauthorised tampering. The service life of the cabinet is influenced by environmental conditions, the quality of installation, and the frequency of access for maintenance or adjustments.

Service and operation

Routine maintenance for the AVANSA 1220HPX involves checking the lock mechanism for smooth operation and inspecting the cabinet for signs of damage or wear. The internal space should be kept free of debris to ensure proper access to the distributor and its components. No specific service intervals are provided for this model, but periodic visual inspections are recommended to ensure continued functionality. If the cabinet is exposed to extreme conditions or physical damage, it should be replaced to maintain system integrity and safety.

Frequently asked questions

Can the AVANSA 1220HPX be used with distributors from other brands?
No, the cabinet is specifically designed for AVANSA distributors and is not compatible with third-party models.

Is it possible to adjust the height and depth independently?
Yes, the cabinet allows for independent adjustment of both height and depth to accommodate variations in floor or ceiling levels.

Can the cabinet be mounted in a false ceiling?
Yes, the overhead mounting design makes it suitable for installation in false ceilings or above floor level.

What is the maximum number of circuits supported by the 1220HPX model?
The model supports up to 8 circuits without a pump or 7 circuits with a pump, according to the manufacturer's specifications.
