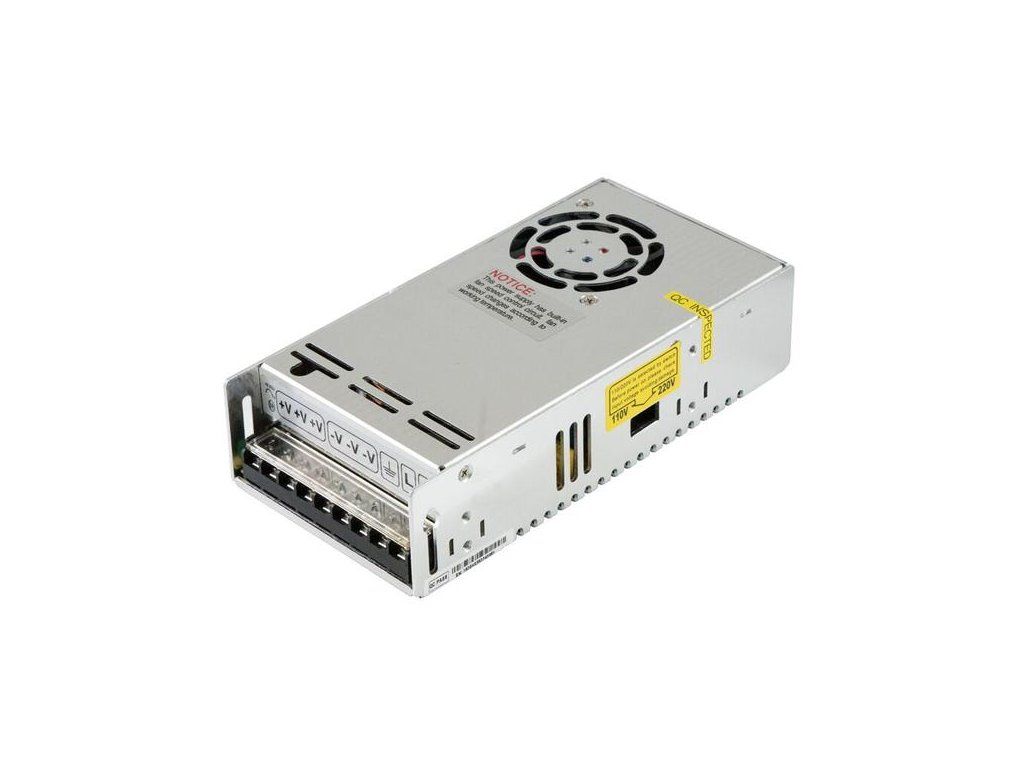

Carspa HS-350-24 industrial switching power supply 24V 350W

Product detailed description

The Carspa industrial switching power supply is designed for reliable and stable power supply in technical and industrial applications. It features a compact design, high efficiency and resistance to overload and short circuit. It is ideal where continuous and safe operation of electronic equipment is required. Parameters and specifications: - AC Input voltage range selected via a switch - Low weight, high efficiency - Protection: short circuit / overload / over voltage / over temperature - Cooling fan ON-OFF automatic regulation - LED on indicator - 100% full load test - Dimensions 199x99x48mm - Package Weight: 0.8Kg Output: DC Voltage: 24V Voltage deviation: ±1% Rated current: 14.6A Current range: 0~14.6A Rated power: 350.4W Vibration/Noise(max): 180mvp-p DC voltage regulation: ±10% Input Voltage range: 90~132VAC/180~264VAC(switch adjustable), 255~373VDC Frequency: 47~63Hz AC current(Typ.): 6.5A/115VAC, 4.0A/230VAC Efficiency(Typ.): 84% Peak current: cold start 25A/115VAC, 50A/230VAC No-load consumption: < 3.5mA/240VAC Protection Overload: over 110%~135% of rated power protection type: hiccup mode, automatic recovery after removing the cause of fault condition Overvoltage: 30.6~33.2V Protection method: O/P disconnection,automatic recovery after removing the cause of fault condition Overtemperature: internal temperature up to 140°C monitored by thermistor protection method: shutdown, automatic recovery when temperature drops Ambient environment Operating temperature & humidity -10°C~+60°C, 20%~90%RH Storage temperature & humidity -20°C~+85°C,10%~95%RH non-shrink Shock resistance 10~500Hz, 2G 10min/1cycle, repeated after 60 minutes, each axis Standards Safety:Meets UL1012 EMC standard: complies with EN55022, CLASS A Other Dimensions (LxWxH): 199*99*48mm Weight: 0.8kg
