Angle radiator unions

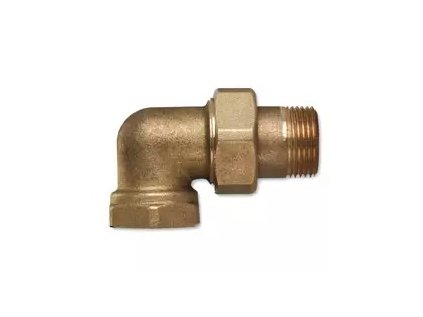

Corner heating screws are precision-engineered brass fittings used in the installation and connection of heating systems. Designed for high-temperature environments, they are ideal for connecting pipes at right angles in radiators, underfloor heating, and central heating systems. These fittings feature flat sealing surfaces and are constructed from CW617N brass, ensuring durability and resistance to thermal stress.

Available in a range of standard pipe thread sizes, corner heating screws provide reliable connections in both domestic and commercial plumbing and heating projects. They meet the PN25 pressure rating and operate at temperatures up to +110°C, making them suitable for use in pressurised hot water systems.

How to choose

• Select the correct thread size (e.g., 1/2", 3/4") based on the pipe dimensions in your system.
• Ensure compatibility with your system’s pressure and temperature requirements (PN25, up to +110°C).
• Verify that the flat sealing design suits your installation method and sealing material.
• Confirm that the CW617N brass material meets your project's corrosion and durability needs.

Frequently asked questions

Can these fittings be used in potable water systems?
Yes, they are certified for use with drinking water.

What is the maximum operating temperature?
These fittings are rated for operation at up to +110°C.

Are they compatible with standard pipe threads?
Yes, they are designed for use with standard threaded pipe connections.
