Gas manifolds

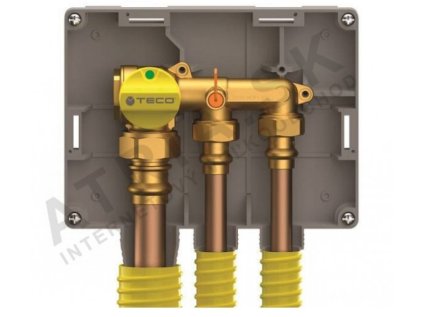

This category includes underground gas distributors designed for domestic gas distribution systems. These units feature integrated pressure plugs for measuring operating overpressure and testing system tightness in accordance with STN EN 1775/2008 and TPP 704 01. They are suitable for all types of gases according to STN EN 437 and DVGW G260/1. The distributors are constructed from brass and plastic materials and operate within a temperature range of -20°C to +60°C, with a short-term resistance of up to +650°C for 30 minutes.
The distributors are intended for simple installation and reliable operation in underground gas networks. They include an installation box and are supplied without a cover plate. Connection dimensions are 1" at the inlet and 3/4" at the outputs, using threaded connections.
How to choose
- Select the correct nominal size (DN 20) and pressure rating (PN 1) for your application.
- Ensure the inlet and outlet connections match your system requirements (1" and 3/4" threaded connections).
- Verify compatibility with the type of gas and operating conditions specified by STN EN 437 and DVGW G260/1.
Frequently asked questions
What is the maximum operating temperature of these gas distributors?
The operating temperature range is -20°C to +60°C, with a short-term resistance of up to +650°C for 30 minutes.
Can these distributors be used with all types of gas?
Yes, they are suitable for all types of gases as defined by STN EN 437 and DVGW G260/1.
