heat block boiler module - unmixed

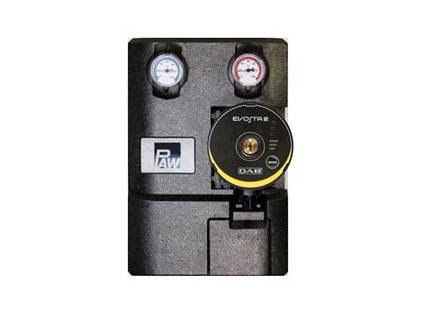

BOILER MODULE HEAT BLOC - UNMIXED
PAW.HEAT BLOCK D31 - DN25
- PN 6, T = +110 °C, DN 25
- has the possibility of easy connection to the horizontal distribution distributor PAW.HEAT BLOC V23-DN 25
- the module contains: supply and return pipes, circulation pump, screwing to the pump with an integrated ball cap, 2 pcs of ball
- caps with integrated thermometers, non-return valve and thermal insulation
- connecting thread internal 1" F
- total power up to 46 kW (at ΔT = 20K)
- nominal flow Kvs 6
- material brass, thermal insulation EPP
