Kit PNI AP800D for self-supporting gate, 800kg

Product detailed description

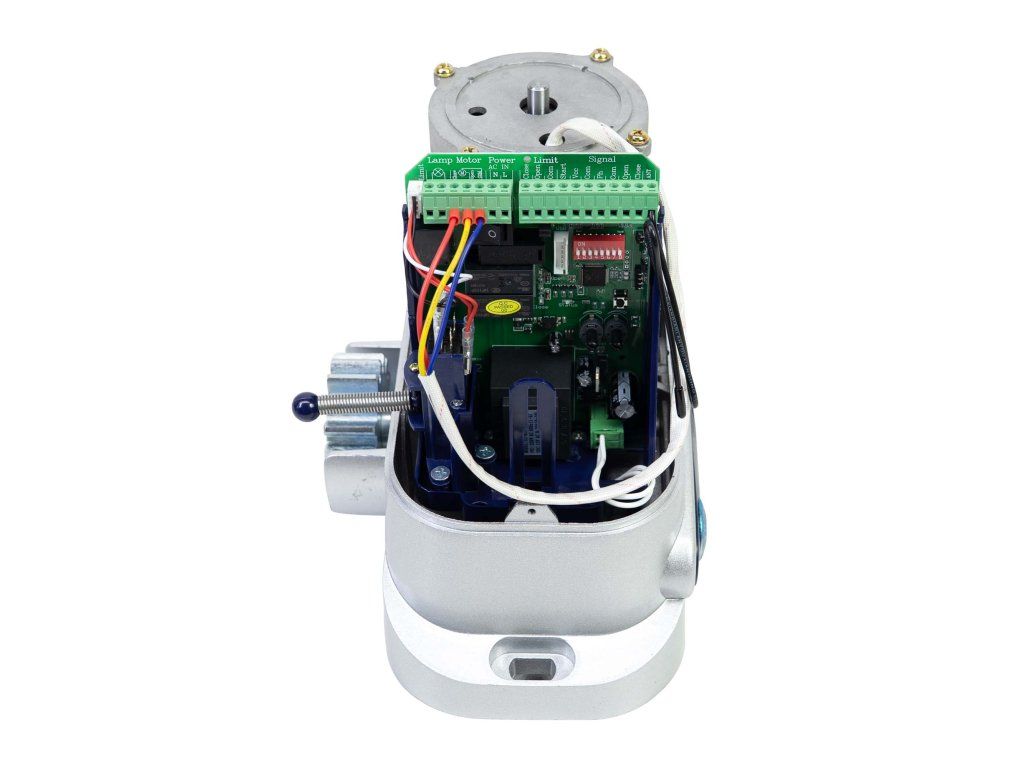

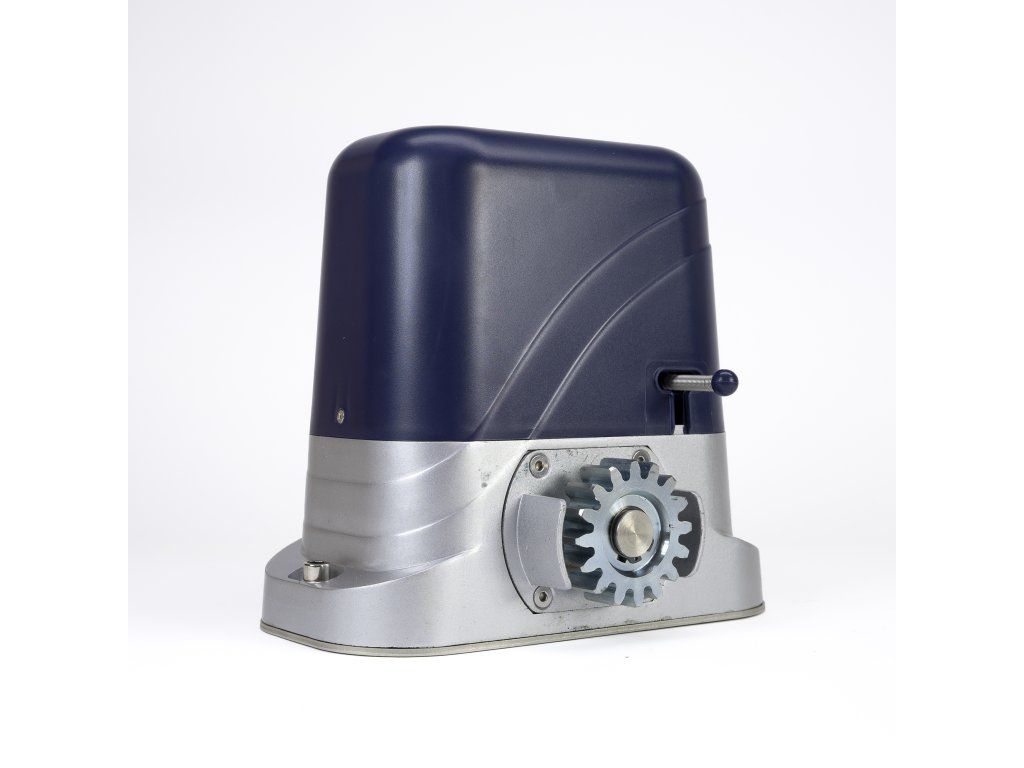

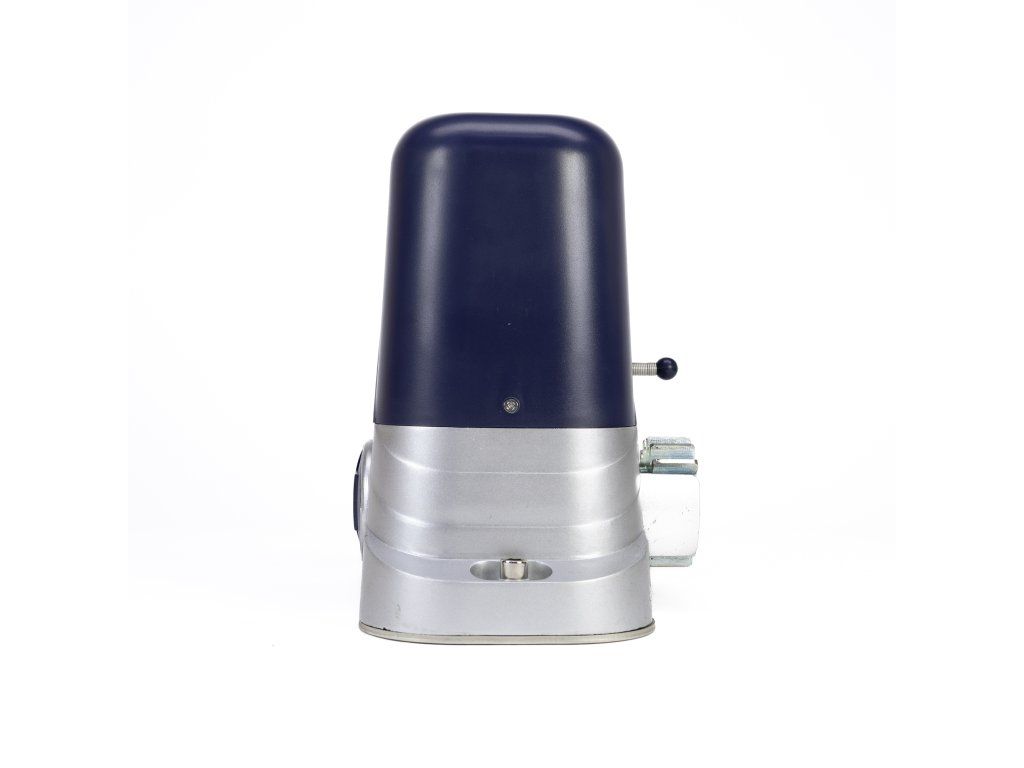

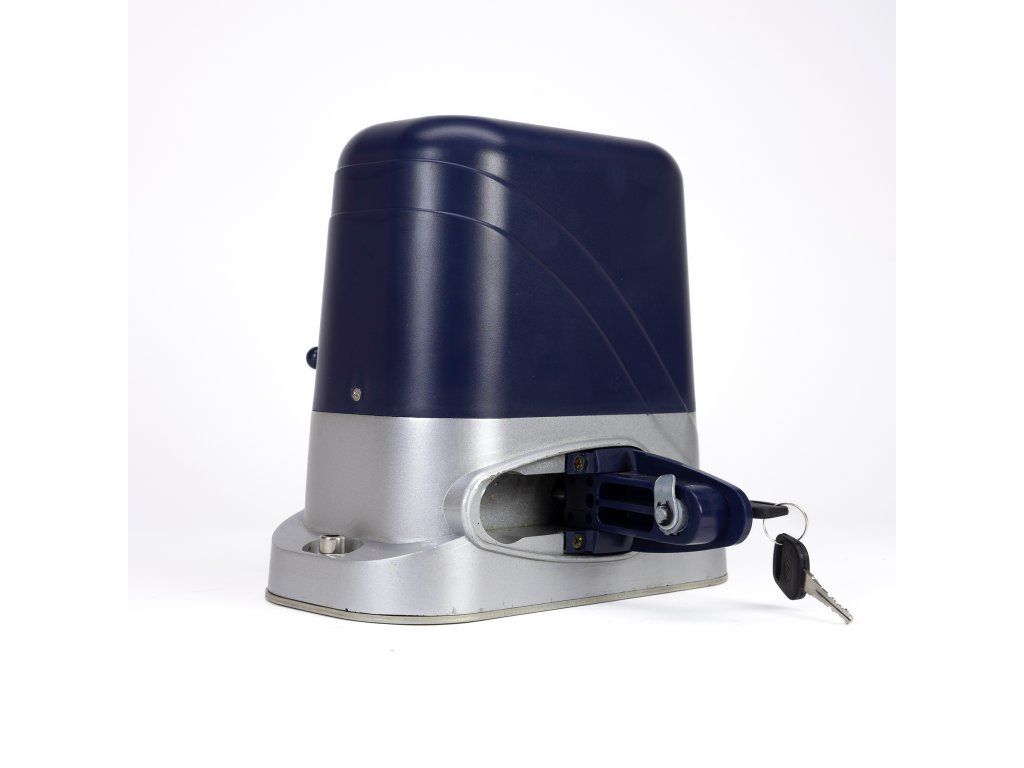

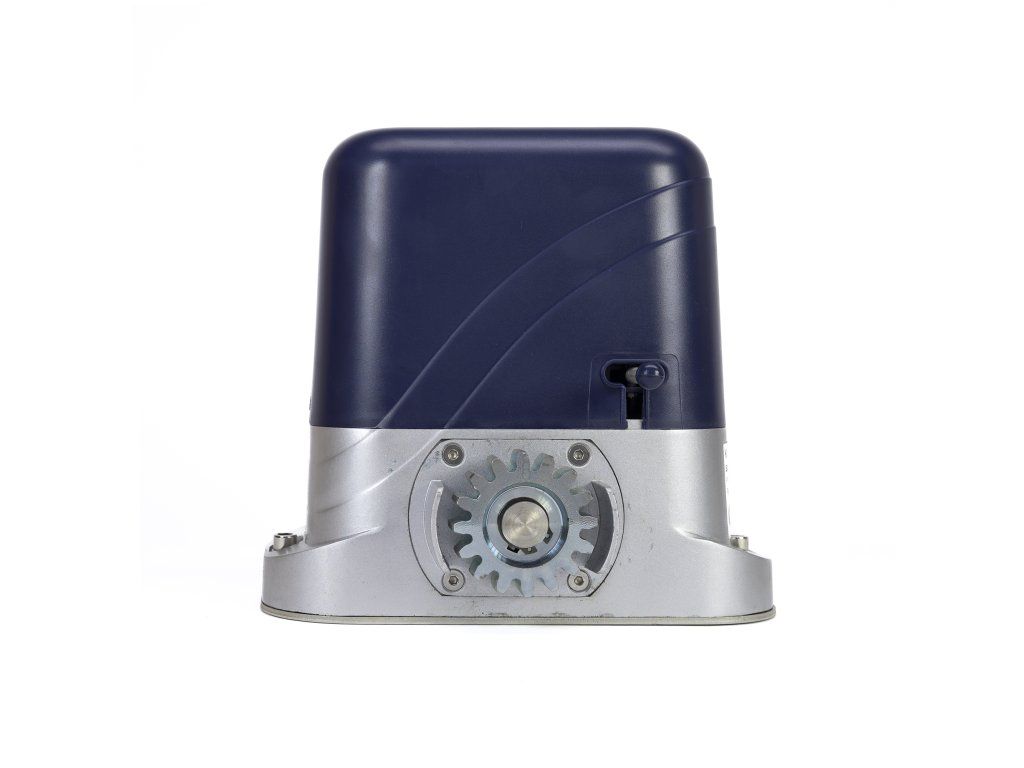

Self-supporting gate automation motor

The motor has a power of 350W and can open or close gates with a maximum weight of 800 kg.

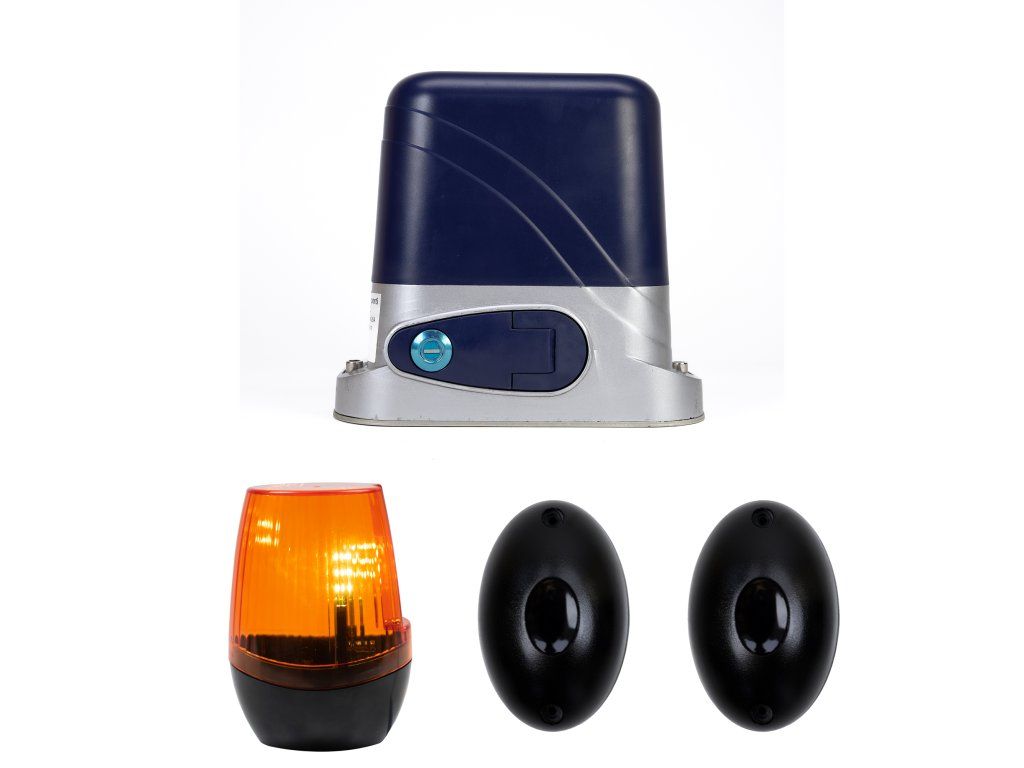

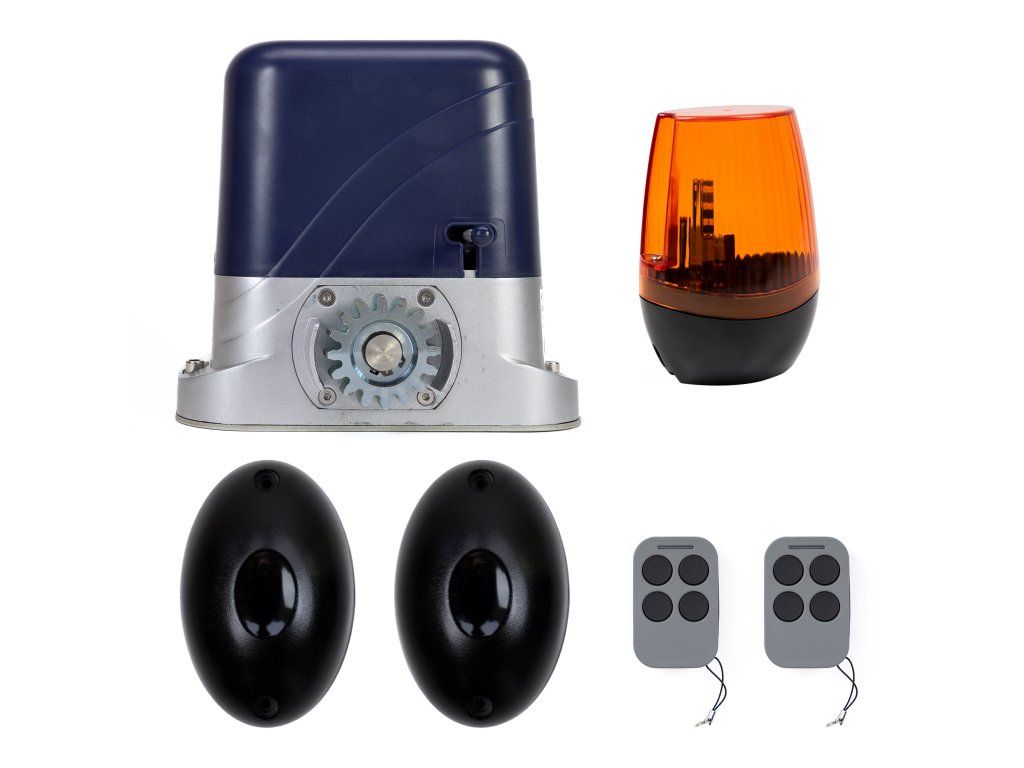

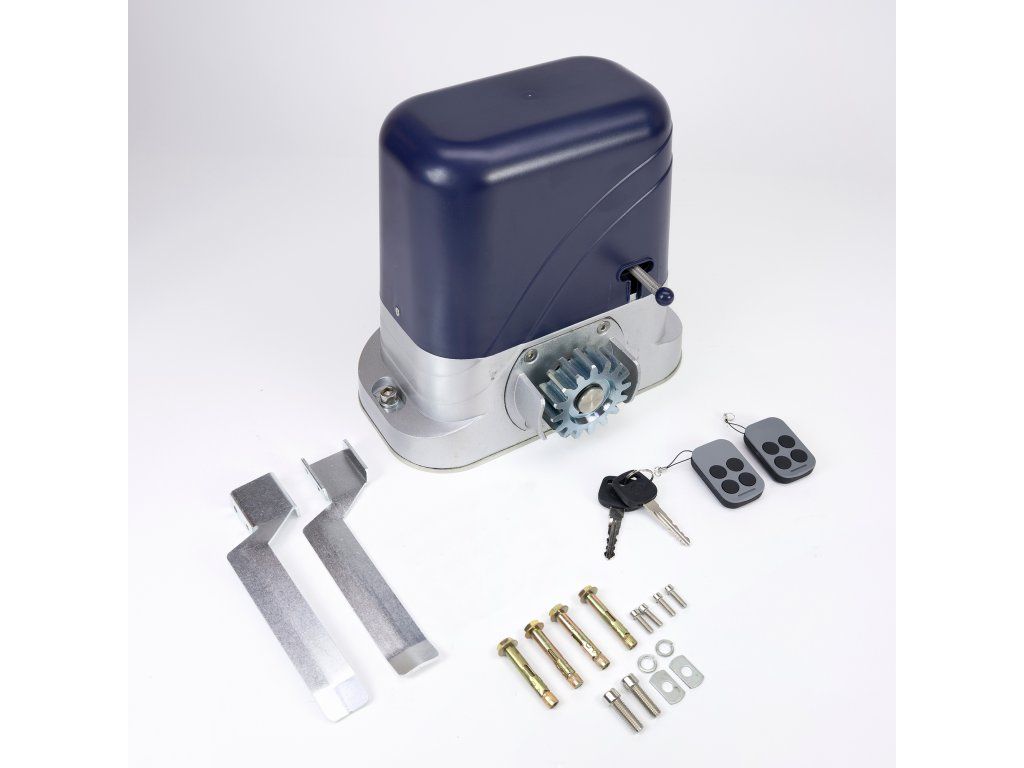

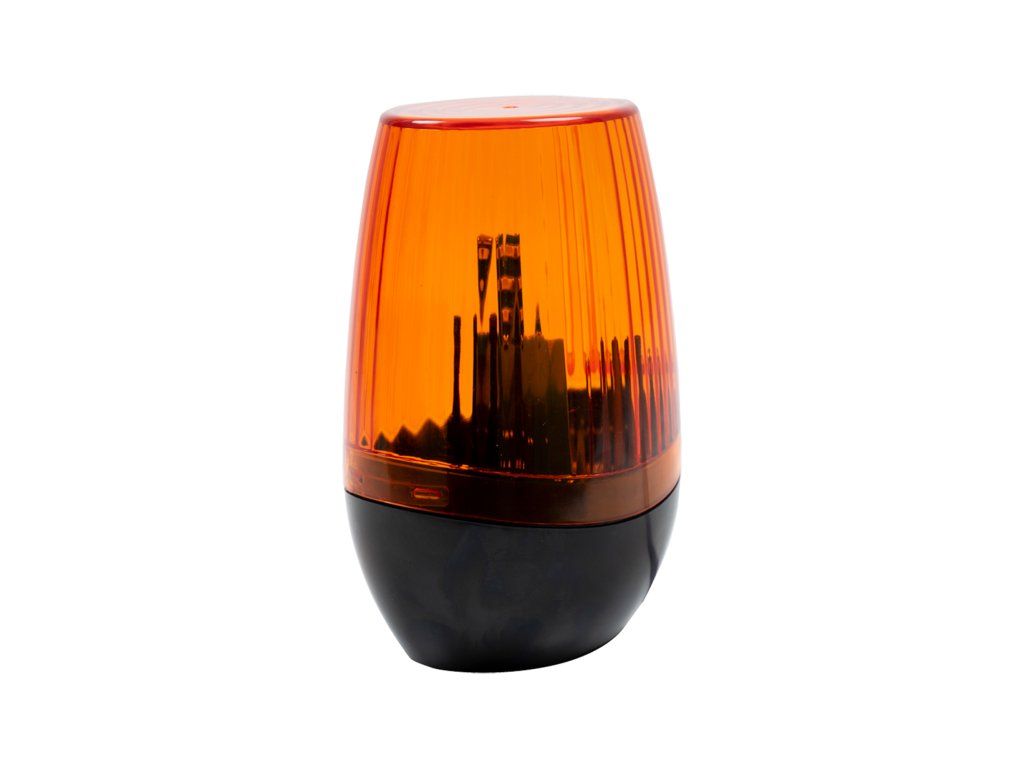

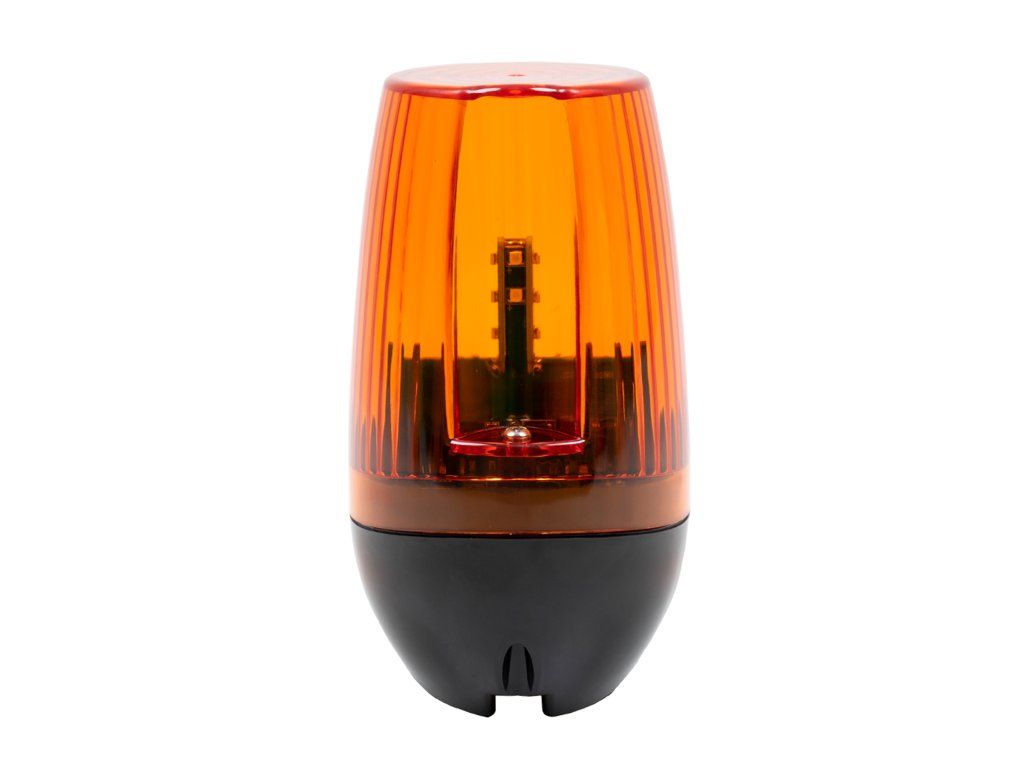

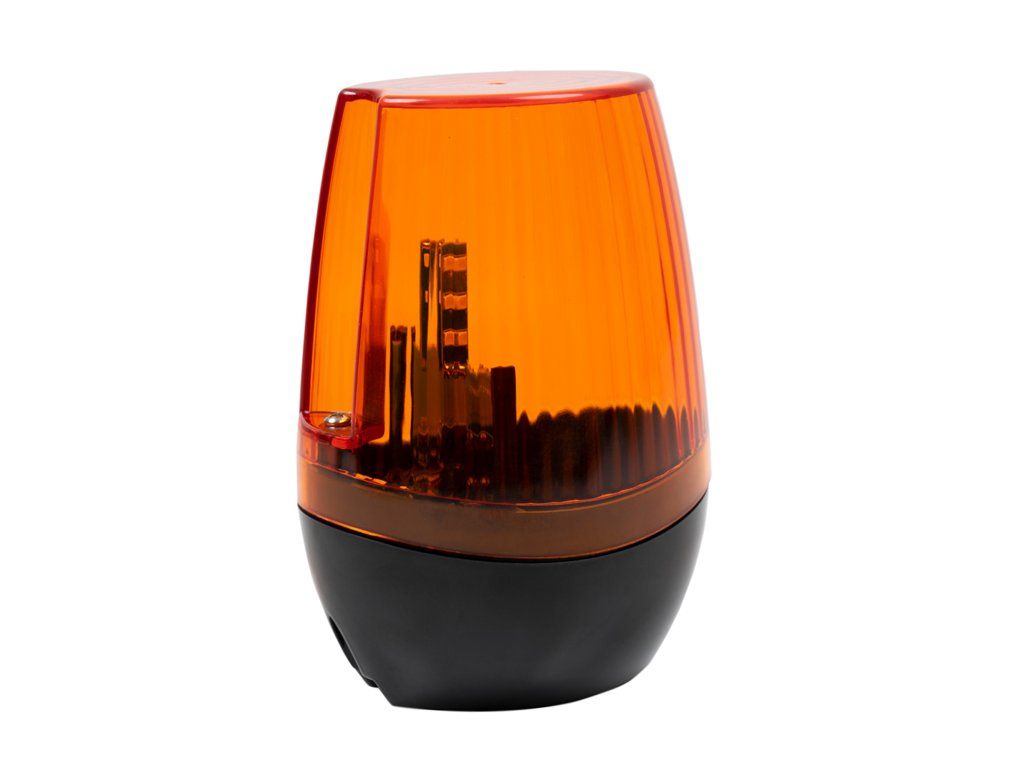

The PNI AP800D gate automation kit, with which this motor is compatible, includes all the components needed to set up a practical access control system: motor, warning lamp, two photocells and mounting accessories.

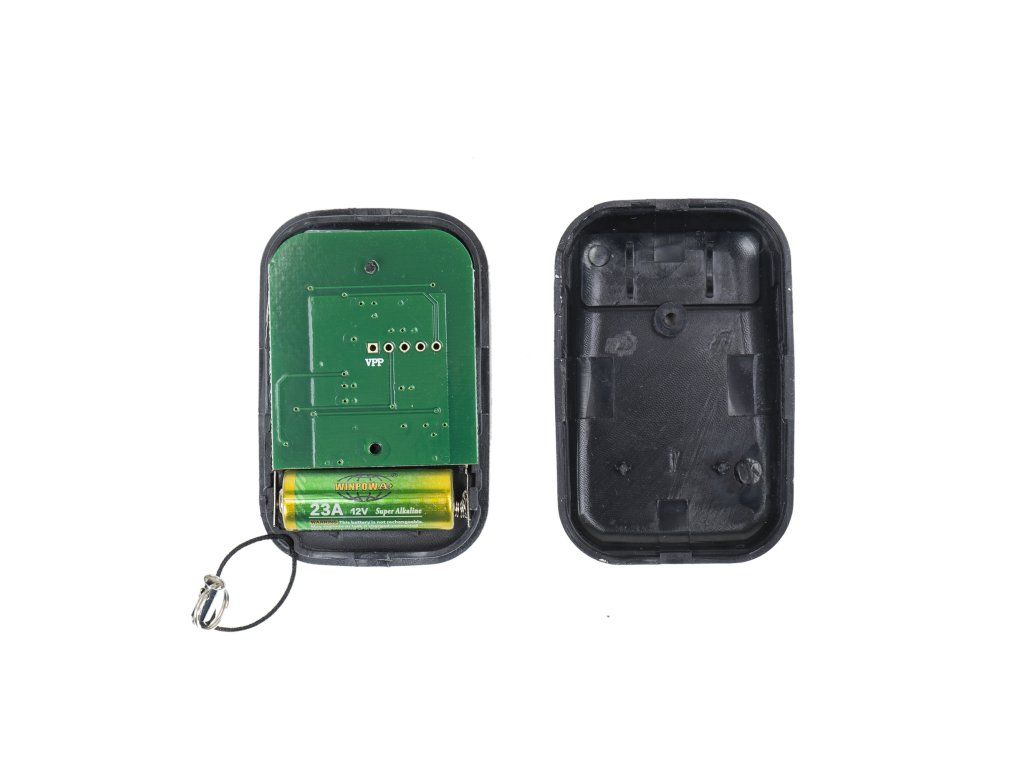

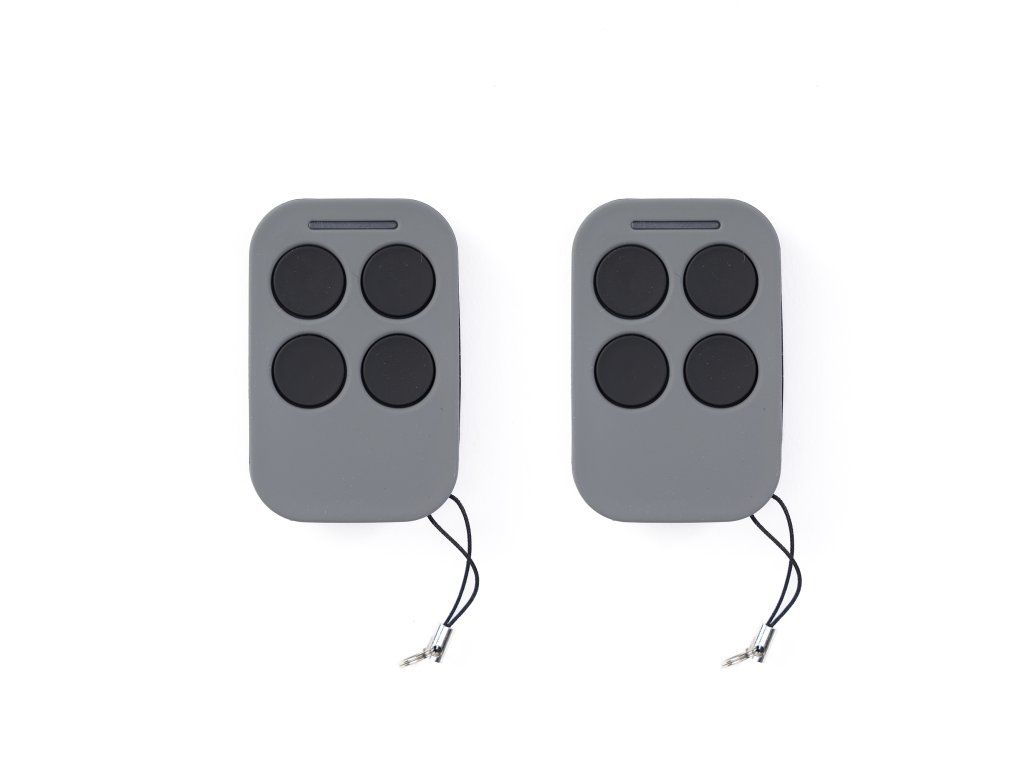

Remote control

The gate can be opened and closed from the remote control (2 remote controls included) or other access control devices such as access buttons or access keypads can be connected.

Obstacle detection

To avoid accidents, two levels of sensitivity can be set: high and low. If the gate is closing or opening and encounters an obstacle, the motor will stop.

Automatic closing

It is possible to program the automatic closing of the gate after a certain number of seconds (10, 30 or 60). Condominium mode can also be programmed which allows simultaneous control from multiple access devices.

In condominium mode, when the gate is opening, if the buttons on the remote control or other connected access terminal (access button or access keypad) are pressed, they will not work until the gate is fully open. When the gate is closing, if the buttons on the remote control or other connected access terminal are pressed, the gate will stop and open fully allowing access.

Warnings in assembly

Do not weld when:

• this is mounted on the bearing sets (the contact of the bearings is damaged)

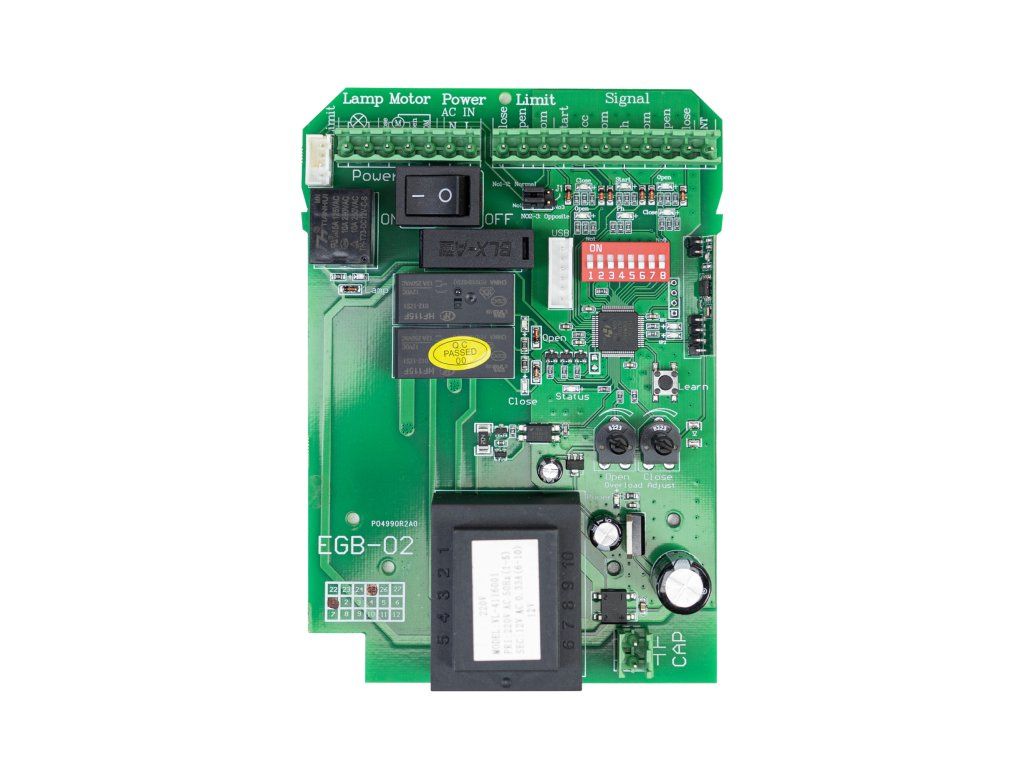

• the motor is mounted (it leads to failure of the board and the wiring on it)
