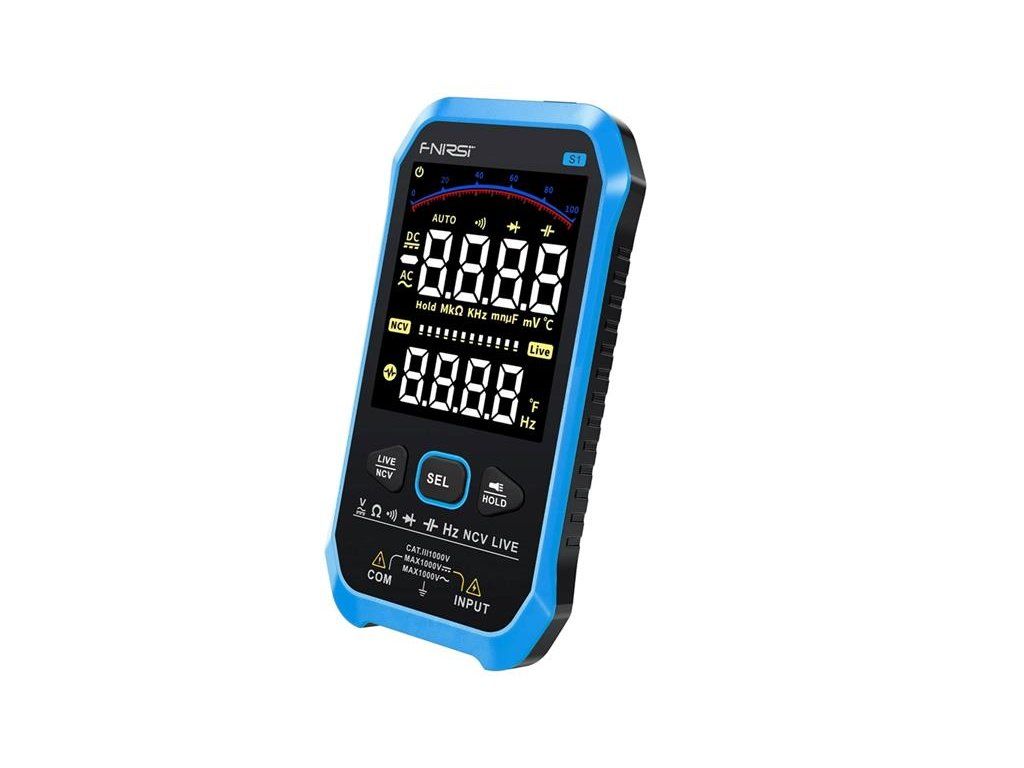

Multimeter FNIRSI S1

Product detailed description

The FNIRSI S1 digital multimeter with 8in1 automatic range features high accuracy, extensive measurement functions, large backlit display.
The multimeter is dominated by a large clear display, under which there are only 3 buttons, which are used to switch the measured parameter, to switch on the NCV measurement, to hold the measured value display or the rear indicator light. The FNIRSI S1 multimeter does not need any additional buttons as it uses the automatic measurement range. Simply connect the measuring prongs at the bottom and use the SEL button to set what you want to measure.
The FNIRSI S1 digital multimeter is a universal multimeter with which you can not only measure resistance, AC/DC voltage, capacitance, but you can also use the NCV non-contact voltage testing, cable meter with buzzer, you can also measure the temperature of liquids.
Easy to use and easy to read display: thanks to its large, easy to read LCD display and intuitive interface, the FNIRSI S1 digital multimeter is easy to use. The backlit display guarantees excellent readability even in poorly lit conditions.


Product parameters:

- Small size and light weight
- allows measurement of voltage, resistance, capacitance, frequency and temperature
- NCV voltage measurement
- diode and circuit throughput testing
- simple operation and easy-to-read display
- Integrated battery
- Built-in flashlight
- Made of high quality ABS material for long life


Specifications:

Types and ranges of measurement:
- AC voltage measurement: 0 - 1000 V
- DC voltage measurement: 0 - 1000 V
- resistance: 0 - 100 MOhm
- capacitance: 0 - 10mF
- frequency: 0 - 10 MHz
- temperature range: -20 to 1000 °C
- measurement of diode, junction and cable permeability using a buzzer
- non-contact NCV measurement
- automatic range
- Integrated 1000 mAh rechargeable battery that recharges via USB-C connector
- maximum display: 9999
- Power: integrated 1000 mAh battery
- operating time: max. 5 hours
- Charging: USB-C connector
- Material: ABS
- dimensions: 143 × 75 × 19 mm
- weight: 135 g
