Avansa 32/6/180E

Code: AVANSA 32/6/180E
Brand: AVANSA
In stock (17 pcs)

Detailed information

Product detailed description

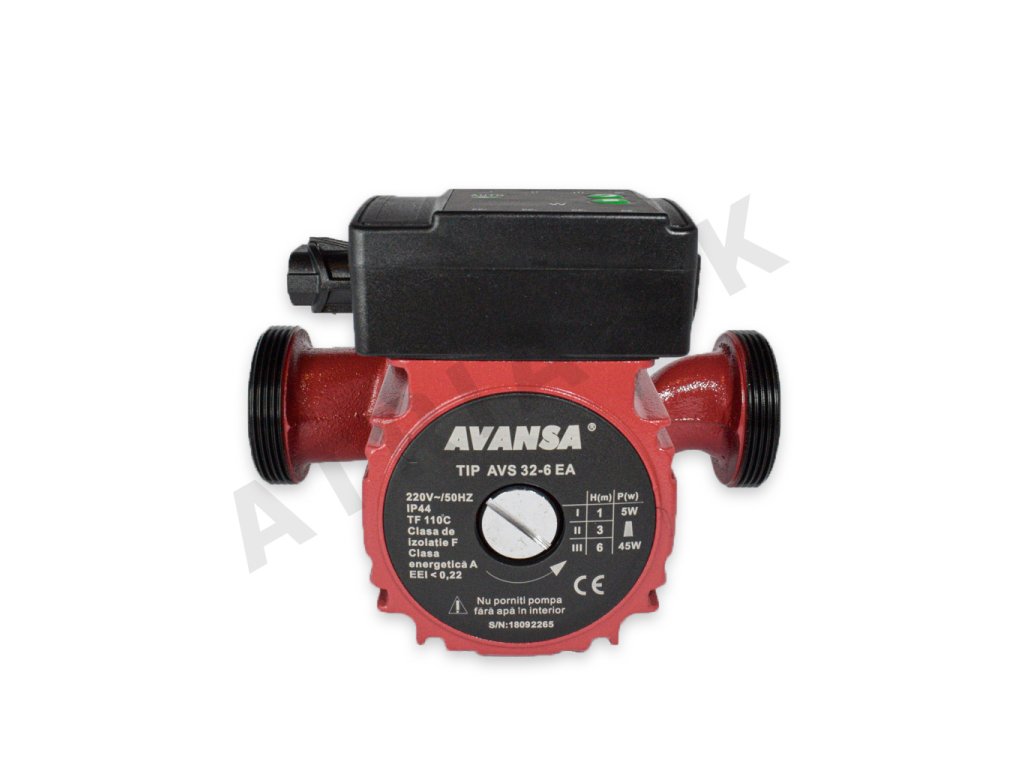

Electronic circulation pump AVANSA 32/6/180E

Application
Circulation of hot or cold water:
  • in heating systems
  • in hot water systems
  • in refrigeration and air-conditioning systems
Features and advantages
  • Low noise level
  • Low energy consumption
  • Wide range of applications
Basic parameters
  • Pipe width 32mm
  • Hmax discharge 6m
  • Pipe clearance : DN32
  • Connection dimensions : 2"
  • Fluid temperature: 10-110°C
  • Max. 10bar
  • Ambient temperature: 40°C
  • Built-in length: 180mm
  • Energy class: A (Economic circulators)
Power
  • Power supply voltage: 1~230V
  • Frequency: 50/60Hz
Materials
  • Pump body: cast iron
  • Impeller: PPO
  • Motor cover: aluminium
  • Motor winding: Copper
  • Shaft: Ceramic
  • Bearing: Ceramic
Motor
  • Insulation Class: F - H
  • Protection Class: IP44
  • Adjustment options
  • 3-speed switching

Additional parameters

Category: Avansa
Warranty: 2 roky
Weight: 3.3 kg
Rozmer balenia (mm): 130/210/150
