PNI CT60

Product detailed description

Wireless thermostat, Hysteresis 0.1 ° C

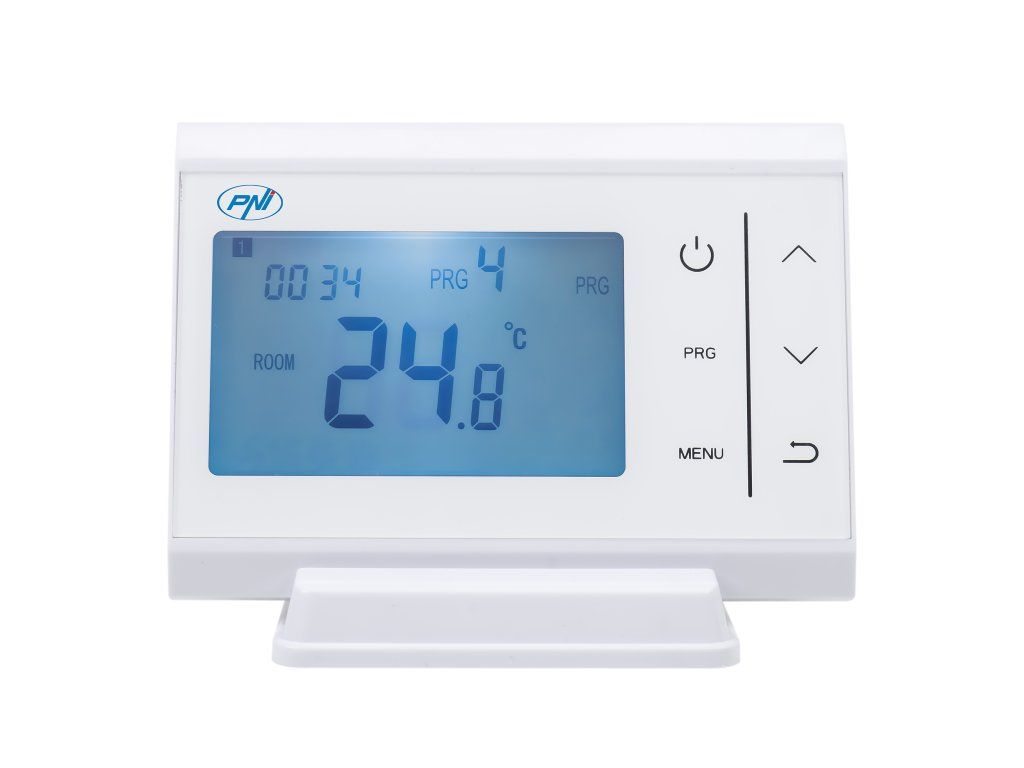

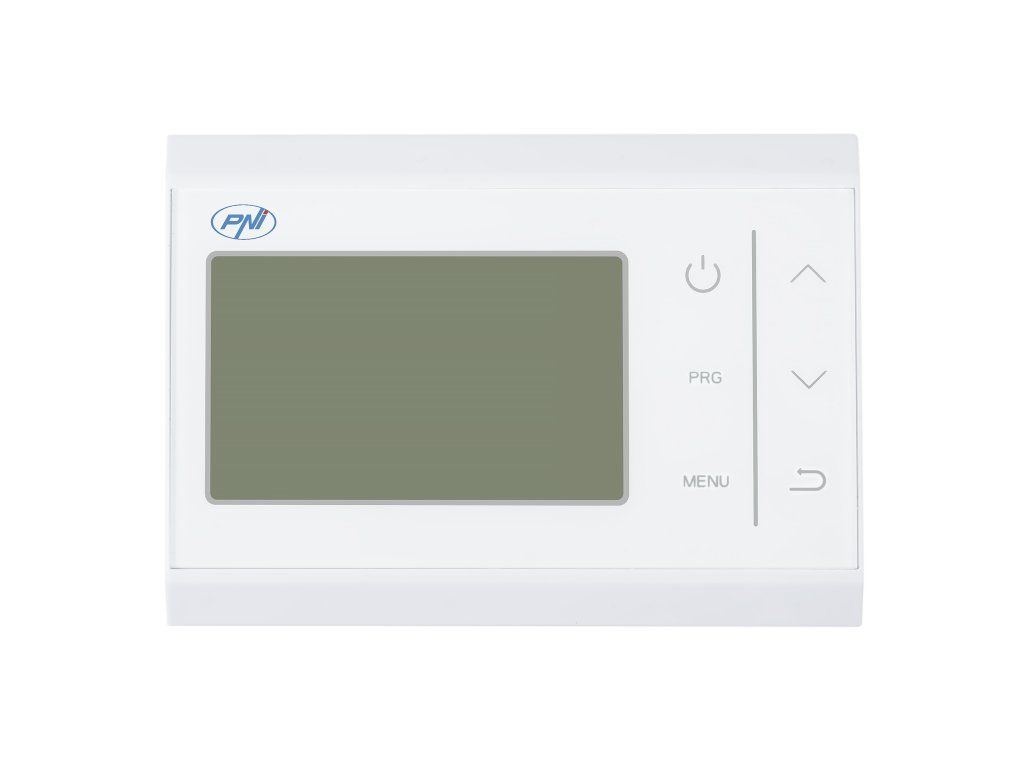

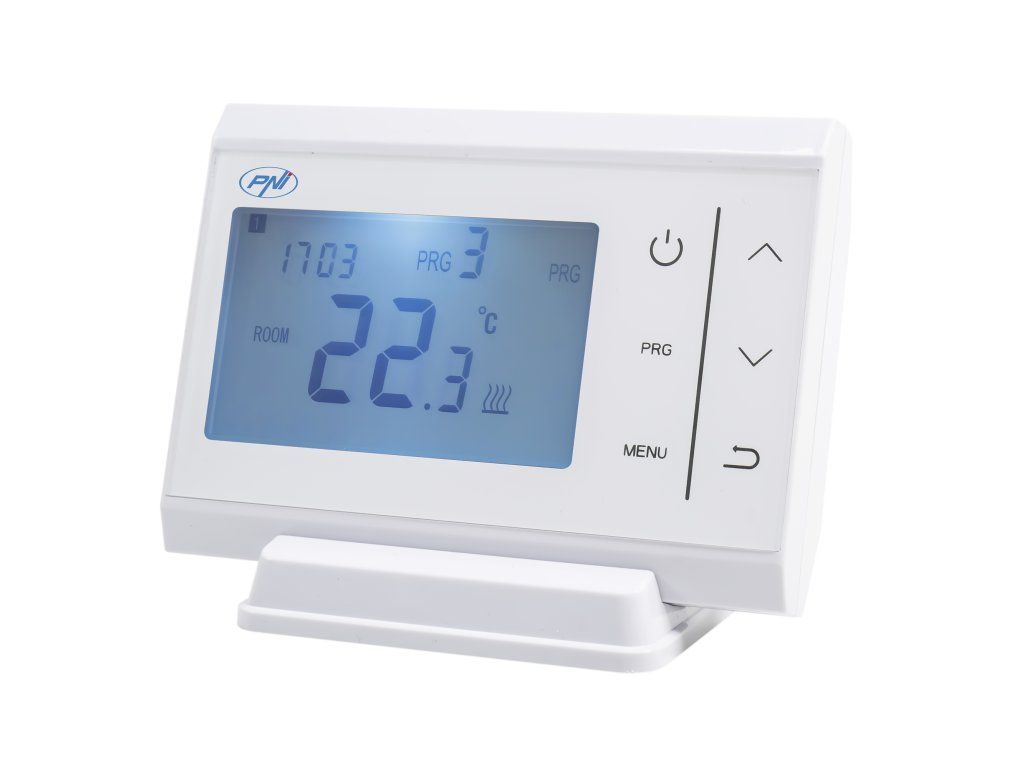

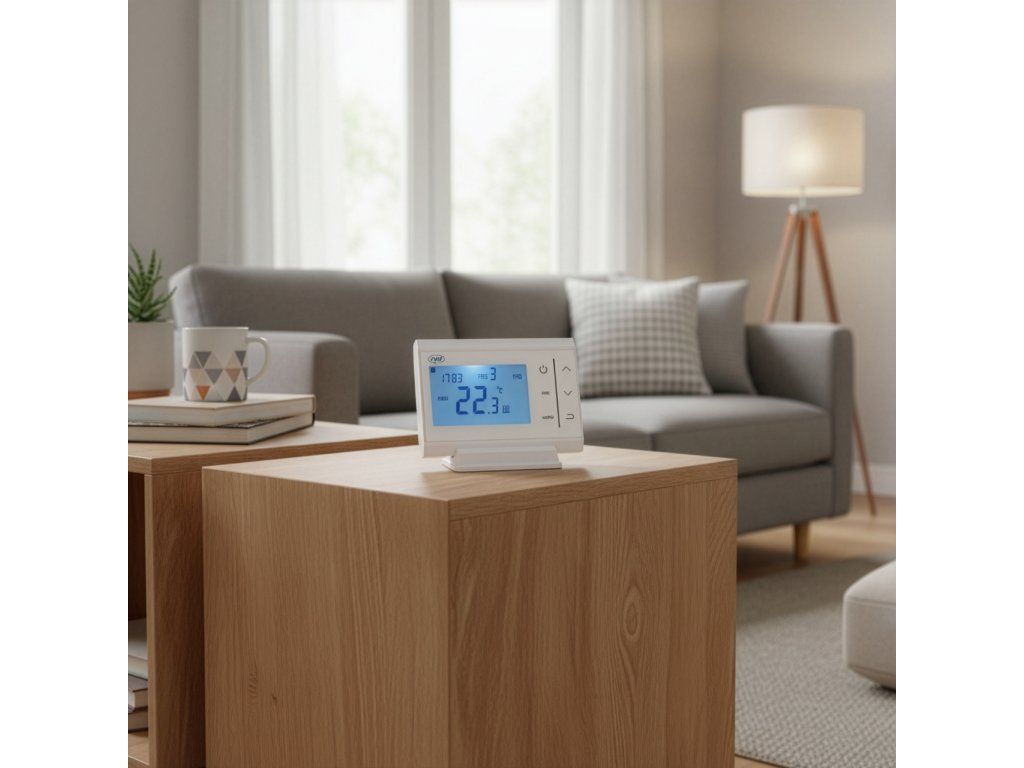

The PNI CT60 wireless thermostat turns the heating system on and off based on a temperature limit and a preset time period. The thermostat has 3 operating modes: Scheduled , Manual and Holiday (anti-freeze). In the programmed mode, 4 operating periods can be set for each day of the week.

 Schedule by day

For each day of the week you can set a maximum of 4 time periods , each with its own temperature limit. Thus, you can have different programs every day, depending on the time of departure or arrival at home.

Example of 4 time periods in a day:
06:00 - 23 degrees
08:00 - 22 degrees
17:00 - 23 degrees
23:00 - 22 degrees

Parameter setting menu

The advanced settings menu allows you to set parameters for different functions: Hysteresis, anti-freeze temperature, child protection function, open window function, reset, etc.

Key lock function

If the child protection function has been activated from the advanced settings, the thermostat keys will lock as soon as the screen backlight turns off to prevent the temperature from changing unintentionally.

Anti-freeze function

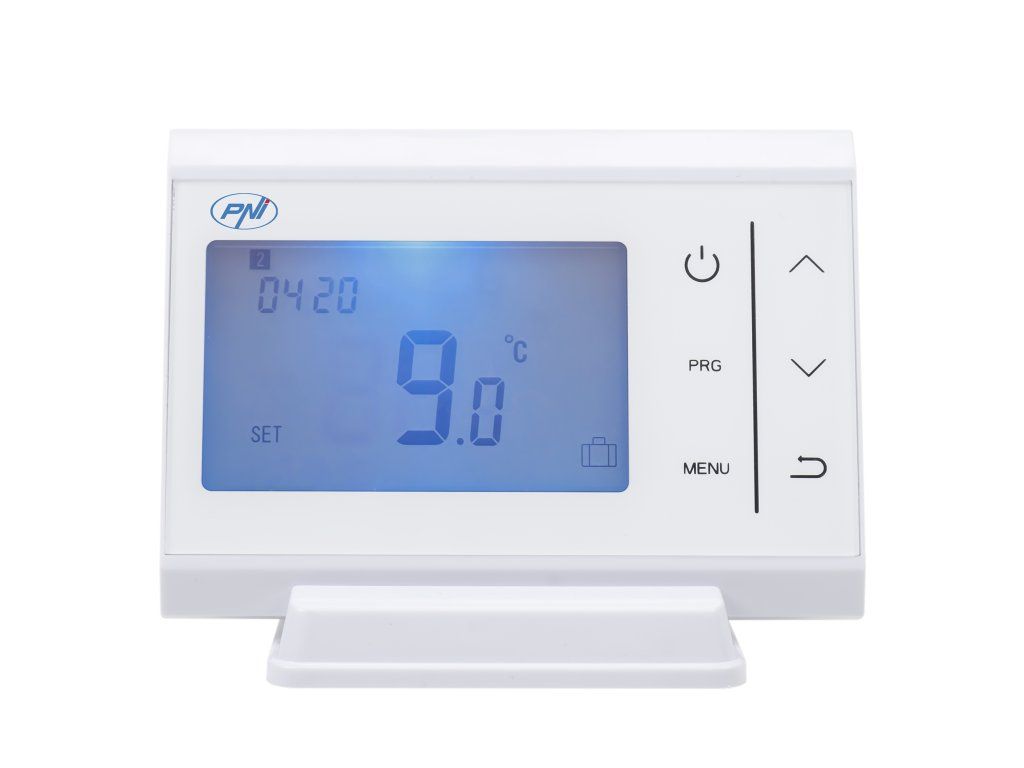

With the anti-freeze function you can leave the boiler quietly on account of the smart thermostat PNI CT60. From the advanced settings menu, set a temperature level between 5 ° C and 15 ° C, a temperature that will be maintained throughout your absence from home.

Open window function (OWD)

If the QWD function has been activated from the advanced settings, the thermostat will turn off the heating if the room temperature drops suddenly (adjustable level). This sudden drop in temperature occurs when a window or door is opened while the boiler is operating. The OP icon appears on the screen. The device will return to its original operating mode after 30 minutes.

Pairing

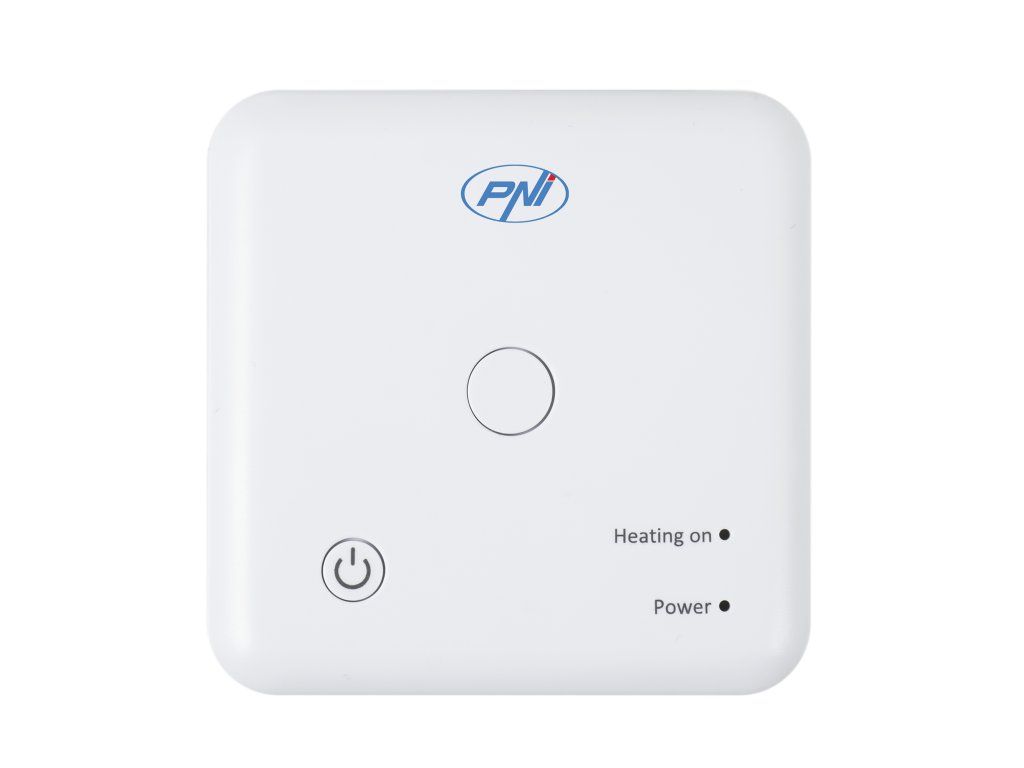

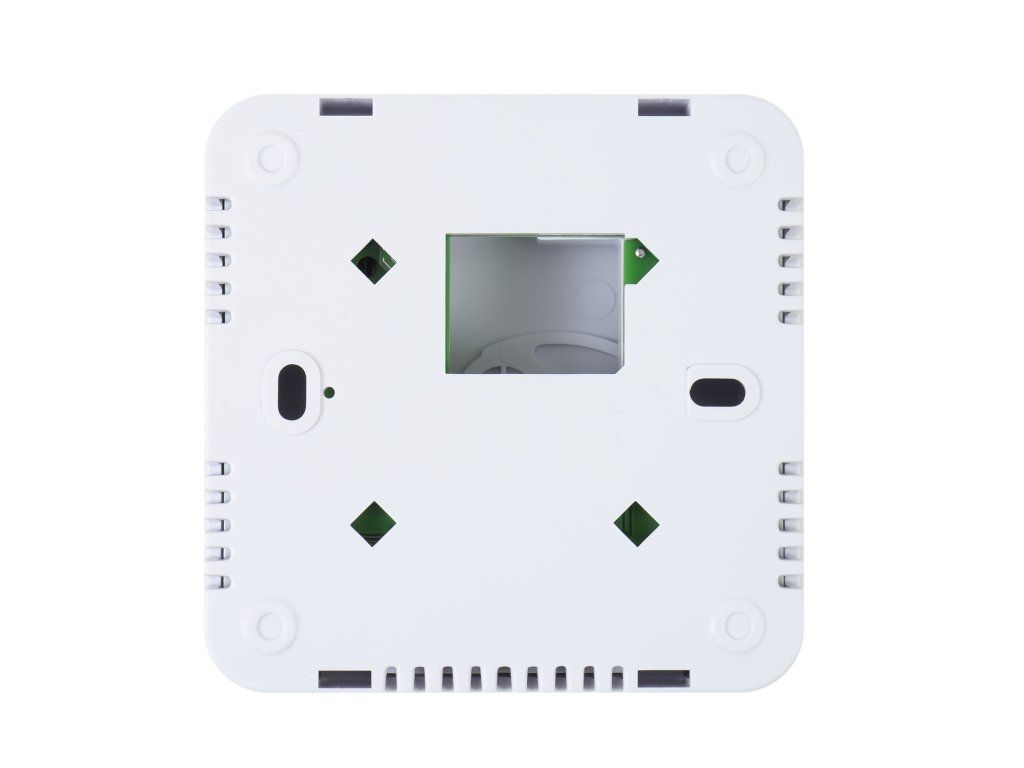

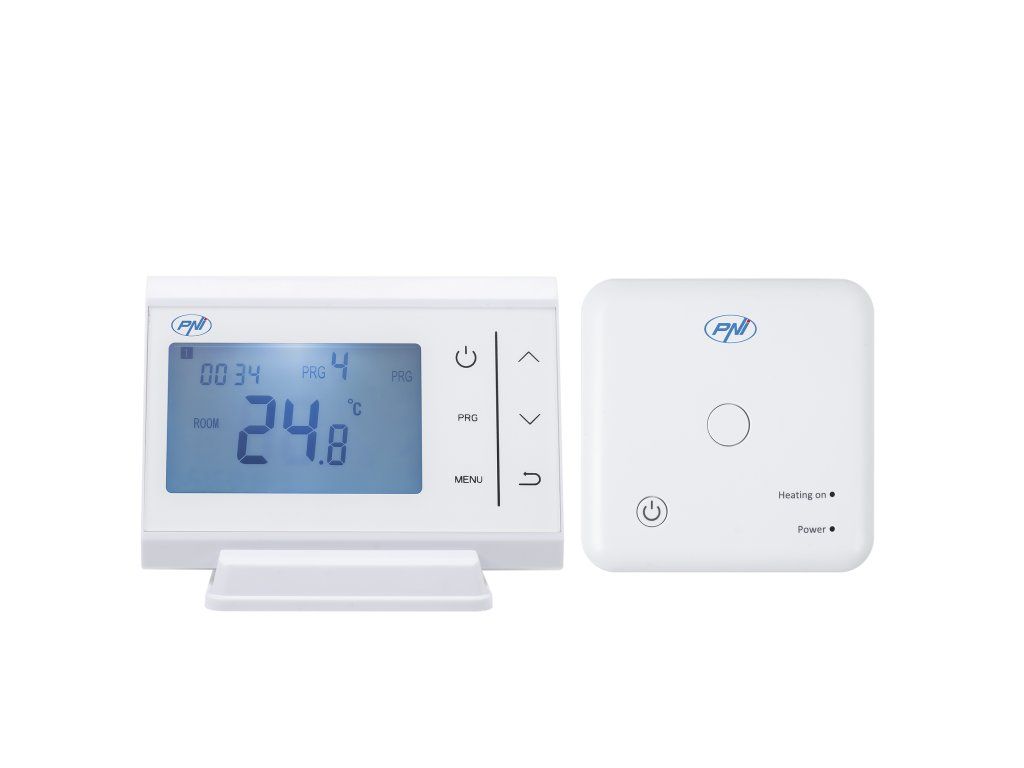

The two units, transmitter and receiver, communicate wirelessly, via radio waves, while the receiver connects via wire to the boiler. As the product must be connected to a 230V mains supply and heating equipment, installation must only be carried out by qualified personnel. The two units come paired from the factory.
