RAINPOINT flowmeter ICS018

Product detailed description

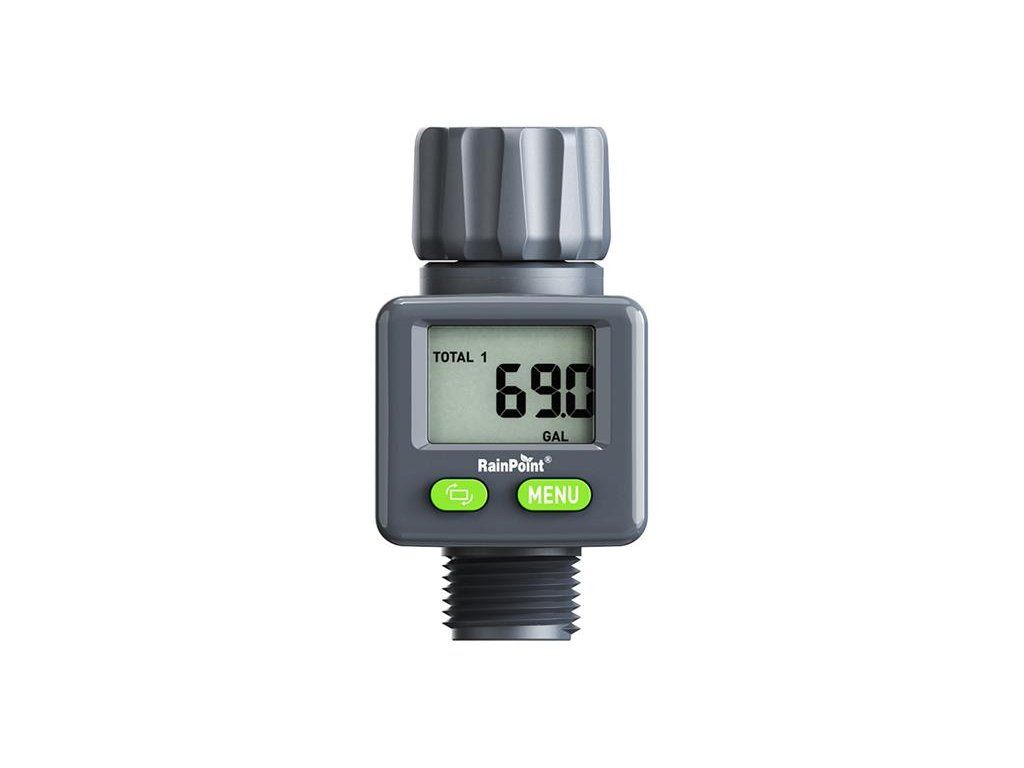

RainPoint Digital Flow Meter
The RainPoint Digital Flow Meter combines the highest accuracy with a robust waterproof design, offering four measurement modes (flow, last consumption, two total counts) while operating on a single CR2032 battery with a clear display indicating the charge status. Intuitive controls allow you to rotate the display and switch between units, as well as reset readings by holding down a single button. Automatic switching off of the display after one minute of inactivity and the ability to measure flow in both directions contribute to convenient use. RainPoint is ideal for the garden, motorhome, sprinkler system or swimming pool.

Precision and reliability in every detail
The RainPoint digital flowmeter is equipped with an advanced Hall sensor and a special IC (Integrated Circuit, chip) chipset that guarantees a measurement accuracy of ±3%. This gives you reliable data on your actual water consumption regardless of the conditions and type of installation. No flow direction restriction and the ability to change the screen orientation at will are features that elevate this meter above standard competitive products.

Full protection against moisture
RainPoint not only cares about accuracy, but also durability. The watertight battery compartment with leak-proof seal and silicone ring guarantees a long service life of the instrument and resistance to external conditions (protection class IPX6). Rain, splashing water or accidental immersion are no obstacle for it.

Full control over measurement
The device offers four independent readout modes: current flow, last consumption (lasht) and also two total counters (total 1 and total 2). Thanks to the extensive functions, you can monitor both short-term and long-term data, compare consumption over different periods and plan savings. Want to start a new set of measurements? No problem! Just hold down the menu button and all values will be reset. What's more, RainPoint does not dictate the direction of flow - you can treat both the water supply and the water drain as input and change the direction of the reading if necessary by holding down a single button.

Battery power supply
RainPoint is powered by a single CR2032 battery - changing it as needed takes only seconds. When the charge level drops, a clear warning symbol appears on the display to remind you that the battery needs to be replaced. If you don't use the meter for more than a minute, the screen will automatically turn off to protect the battery. This allows the RainPoint meter to remain functional for longer, even with heavy use.

Ergonomics and intuitive operation
You can rotate the LCD (liquid crystal display) with a short press of a button to always read the data easily, regardless of the mounting method. On the flow measurement side, you can change the units from GAL/min to L/min and from GAL to L by holding down the menu button, making the instrument versatile for different measuring systems.

Technical parameters:

Waterproof: IP54
Reading modes. Current flow, last consumption (lasht), two total counters (total 1 and total 2)
Operating pressure: 0.5-10 bar (7.25-145 psi)
Measuring range: 0-9999 L
Water flow range: 0.5~45.5 l/min
Power: Battery power (one CR2032 battery)
Operating temperature: 5℃-40℃
Display: LCD
