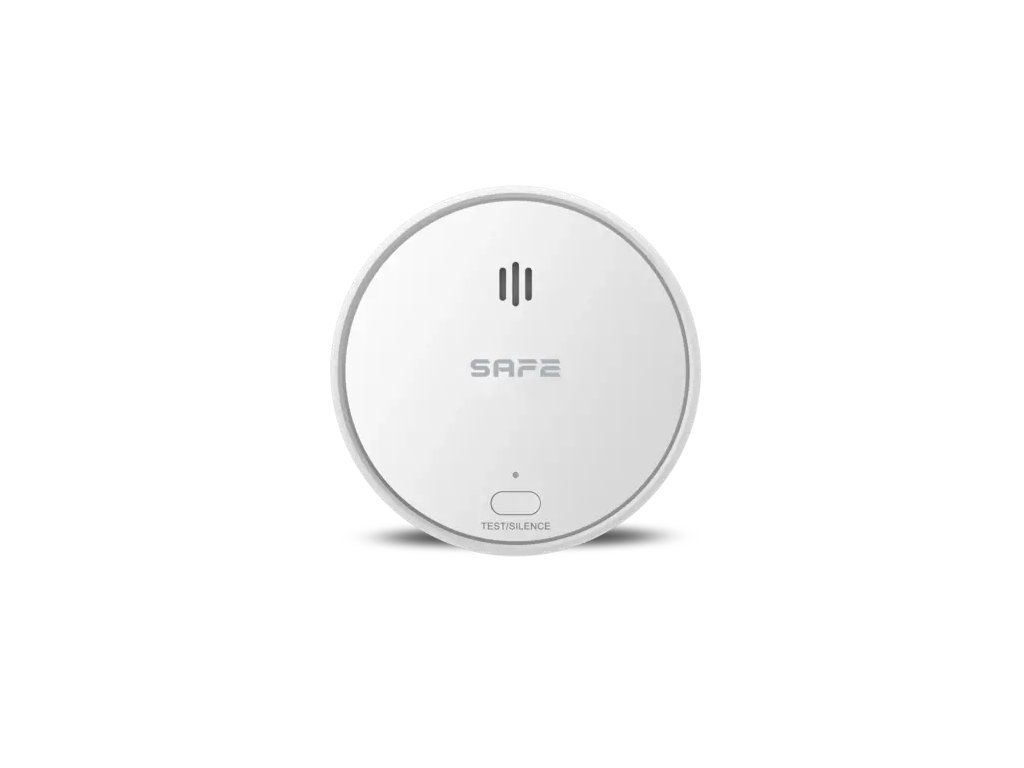

SAFE Fire Guard smoke detector

Product detailed description

Wireless smoke detector
A new generation of wireless fire detector with breakthrough dual-spectral, dust-resistant optical chamber detection and SIC technology for temporary alarm muting via IR remote control. It can operate as part of a SAFE alarm system supported by a Hub SAFE central control unit or completely stand-alone. Power for up to 36 months is provided by a replaceable lithium battery. The detector is characterised by its fast response to detect danger combined with high sensitivity, stable performance and maximum resistance to false alarms.

SAFE wireless fire detector
The Fire Guard detector reacts in real time to the presence of smoke from incipient fires. In the event of an alarm, it activates the loud built-in siren and sends an alarm signal to the central control panel. If multiple detectors are used within a single system, they can be interconnected. The device is powered by a single 3 V CR123A lithium battery, which lasts for up to 3 years of operation. The Fire Guard is a smoke detector in a timeless compact design that combines the latest hardware and software technologies applied to a functional smart detector design that represents a new level of standard in residential fire safety.

Fire Guard is part of the SAFE alarm system
Fire Guard smoke detectors together with the Hub SAFE central control unit can form the most effective basis for a comprehensive building fire safety system.

Simply connect all ProSAFE-compatible devices to the Hub and conveniently manage them via the intuitive interface of the free mobile app of the same name (for Android and iOS) on your smartphone. Have effective control over a potential threat, allowing you to react immediately to its occurrence. Monitor the status of each device in real time. Remotely configure and edit your security system settings from anywhere. All the information and instant alerts in one app on your phone 24/7!

Wireless communication SAFE Keeper
SAFE Keeper is a radio protocol developed for SAFE alarm system products. It operates at an operating frequency of 868.0 - 868.6 MHz and provides a communication range between system devices of up to more than 2,000 m in open space without interruption. It ensures continuous interaction between the central unit and the alarm system devices. It is protected by AES128 encryption and a bi-directional communication mechanism, ensuring a high level of security for the transmitted data. SAFE Keeper guarantees continuous interaction between the central unit and the individual devices, emphasizing maximum and effective protection of the wireless alarm system.

Unique dual-spectrum smoke chamber technology
A dual-spectral optical sensor with blue and infrared LED sources with different wavelengths was integrated into the dust- and insect-resistant smoke detection chamber. The chamber design is directly interfaced to the AI SAFE microprocessor. It thus offers the most reliable detection method, which in combination with a prediction algorithm allows the measurement of microparticle concentration directly in the air and in real time. This unique technology can determine the size of volatile particles inside the optical chamber and respond only to the actual smoke threat, ignoring the similar composition of water vapor or other fumes.
Responds only to real threats
In the case of fire detection systems in residential premises, the priority is to inform the occupants in good time about the real danger. The AI SAFE microprocessor was developed based on a detailed analysis of the combustion properties of materials and works with a predictive algorithm that compares data from a dual-spectrum optical sensor and filters out potential false alarms in real time. If the recorded data corresponds to liquid water vapour particles or other types of vapour, the detector will not respond. However, if the dynamic pattern of the data matches the actual smoke particle parameters of a fire, the detector immediately triggers a fire alarm.

Fire alarm signalling
If the smoke concentration reaches a set value during detection, the Fire Guard system automatically sounds a loud 85 dB audible alarm signal accompanied by a flashing red LED to indicate a fire alarm. This is a targeted way of attracting the attention of building occupants through the high noise level and intense LED indication that a fire has occurred in some part of the building. The purpose of a fire alarm is to immediately respond to an alarm event or to move people from the scene of an emergency to a safe zone.

SIC technology and remote alarm muting using IR remote control
The detector has a combined TEST and SILENCE button, which is designed to test and verify the correct function of the device and to temporarily silence the detector. If you know the cause of the fire alarm activation and need to mute the loud siren sound, there is no need to go to the detector itself and mute it using the button. SIC technology allows you to remotely mute an audible alarm by pressing any button on a standard infrared remote control (most home appliance controls, such as a TV).

With IZOVAX protection even in rooms with high humidity
The electronic components and circuit board of the Fire Guard smoke detector are coated with an insulating and protective layer of IZOVAX nanoparticles and thanks to the innovative technology of the dual-spectral optical sensing chamber, which can distinguish smoke particles from water vapour, the device can be installed in very humid environments (near bathrooms, drying rooms, kitchens or technical rooms), unlike conventional fire detectors.

Firefighter bodyguard
Power is provided by an integrated 3 V lithium battery (replaceable), which offers an extremely long service life of up to 3 years. Battery operation allows for quick and easy installation. As soon as the battery capacity drops below the set threshold level, the detector informs you in advance and will continue to function properly after the battery has been replaced. After more than 10 years of protection and with a 30-day advance warning, the detector will alert you to the end of its life and automatically notify you that it needs to be completely replaced.

Specifications:

Interface
Indication.
Standby mode: Green LED flashes once per minute
Alarm: Red LED flashes once per second
Fault: red LED flashes twice per minute
Features
Remote Update: Yes (Cloud)
Temperature sensor: yes
Search: signal strength detection
Low battery alert: Yes
Protection against false alarms: False alarm protection: Yes
Wireless transmission
Carrier frequency: 868.3 MHz
Communication distance. Up to 1,000 m (3,280.84 ft) in the open
Type of communication: two-way
Encryption mode: AES128
Frequency skipping: yes
Detection parameters
Detection type: smoke, fault warning, low battery warning
Sensor: photoelectric - dual spectrum
Sampling time: 9 s
Room height: ≤8 m
Detection area: 20 m2 - 40 m2
Alarm: Acoustic: 85 dB - 95 dB at a distance of 3 m
Optical: LED indicator
Maximum number of connected units: 24
Mute function: yes
Dimming time: approx. 9 min.
Infrared dimming: yes:
Detector response threshold: 0.2 dB/m - 0.3 dB/m
General
Power: 1×3V lithium battery CR123A (replaceable)
Power consumption: ≤35 µA (operation) / ≤35 mA (alarm)
Battery life: 3 years
Operating temperature: -10 °C to +55 °C (+14 °F to +131 °F) (indoors)
Operating humidity: ≤95% (relative humidity without condensation)
Product dimensions (L × W × H): o98 mm × 43.1 mm (o3.85" × 1.70")
Packing dimensions
Installation: ceiling mounting
Housing material: PC + ABS
Colour: PC, PC, PC, PC, PC, PC, PC, PC, PC, PC, PC: White
SAFE Hub 2 Plus LTE compatibility
Consensus:
CE
TÜV
EN 14604:2005+AC:2008
EN 62479:2010
EN 50130-4:2011+A1
EN 301489-1 V 2.2.3:2019

Contents of the package:

SAFE Fire Protection
Handbook
