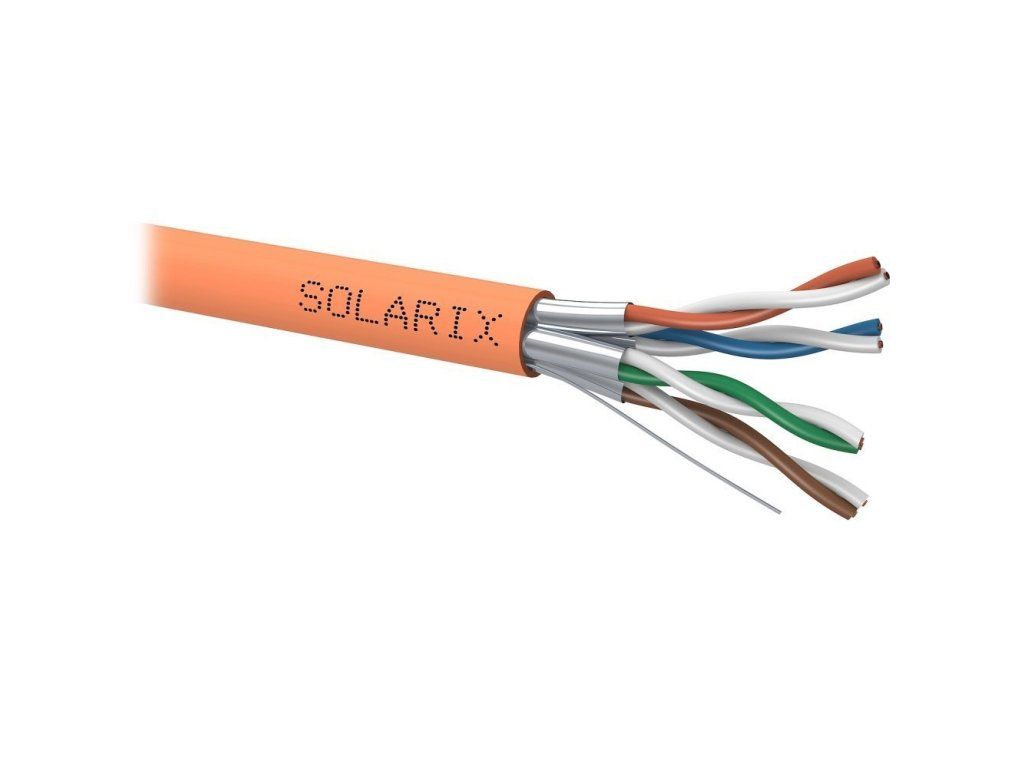

Solarix cable CAT6A STP wire 500m spool LSOH, SXKD-6A-STP-LSOH

Product detailed description

High-quality CAT6A cable with a tested bandwidth of 650 MHz, LSOH jacket, and fire reaction class Dca-s1,d2,a1; 500 m reel; Component Level certification. Product Features: - High-quality shielded Category 6A/Class EA installation cable tested up to 650 MHz - Designed for reliable operation of the 10GBASE-T high-speed protocol - The cable features a U/FTP construction - High resistance to alien crosstalk thanks to the PiMF construction - The jacket type is LSOH with fire reaction class Dca-s1,d2,a1 - The cable conductors are made of high-quality copper wire with a copper purity of 99.97% - The cable easily meets the requirements of the international standards ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-E - The cable has been tested by the independent testing laboratory FORCE TECHNOLOGY under the EC VERIFIED certification program at the Component Level and, for CPR (EU Regulation No. 305/2011), under the AVCP 3 performance assessment system Product Specifications: Category: CAT6A Supported Protocols: 10GBASE-T and lower Shielding: foil around each pair Bandwidth: tested up to 650 MHz Conductor type and size: copper wire 0.56 mm ± 0.005 mm Insulation and insulated conductor diameter: skin-foam-skin PE 1.33 mm Fire reaction class; jacket type: Dca-s1,d2,a1; LSOH Jacket color: gray RAL 7035 Nominal cable diameter: 7.3 mm Weight: 51.5 kg/km NVP: 75% Propagation delay: 480 ns/100 m Delay skew: 45 ns/100 m Storage temperature: -20 °C to 60 °C Operating temperature: -20 °C to 60 °C Installation temperature: 0 °C to 50 °C
