Solarix SOHO LC-18 Wall-Mounted Cabinet with 2U, 4U, and 11U Racks, 550x550, Gray (RAL 7035), with a Frame for Wall Installation

Product detailed description

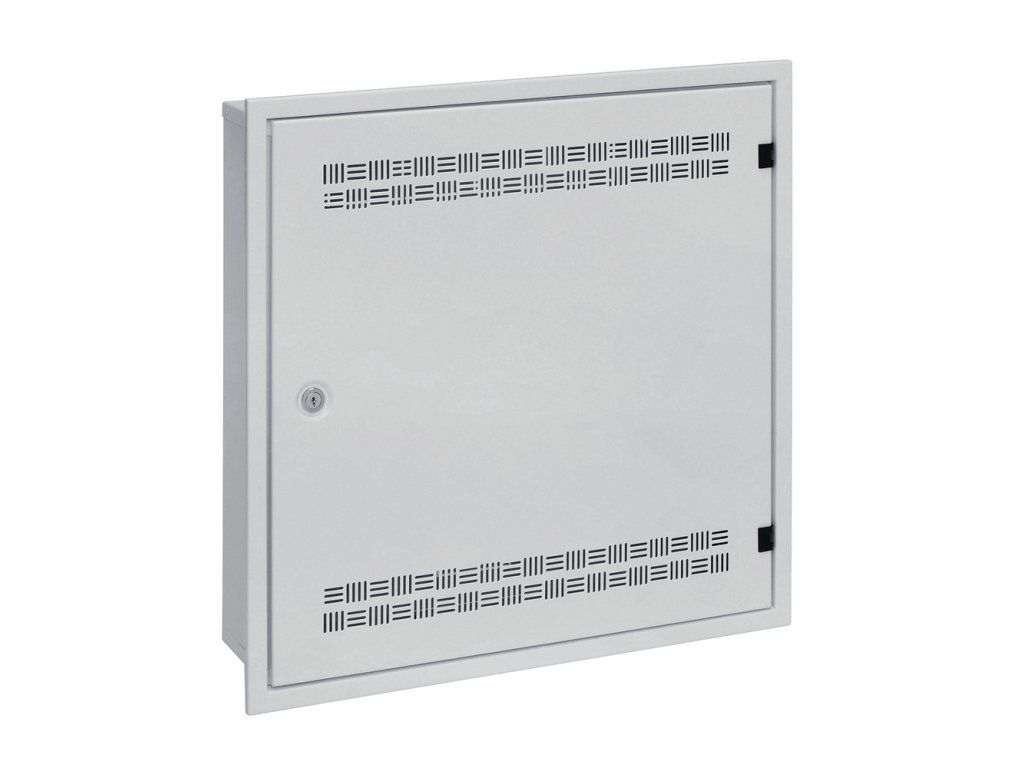

The modern Solarix LC-18 wall-mounted data cabinet is designed for the installation of small-scale network cabling components or telecommunications distribution components. The Solarix LC-18 cabinet consists of a frame characterized by high strength and rigidity. The front of the cabinet is fitted with a sheet-metal door featuring two hinges and a metal lock that operates with a patent key. These sheet-metal doors feature perforations to provide passive ventilation for the equipment housed inside the cabinet. Cables can be fed in through pre-drilled openings in the rear and on all sides of the cabinet. The rear of the cabinet features pre-drilled holes for wall mounting. The 19" frames have dimensions of 4U and 11U vertically and 2U horizontally. There are pre-drilled holes on the cabinet and frame that determine the positions during assembly. When the frame is flush with the door, the door opening angle is approximately 110 degrees; when the door is extended from the frame, the door opening angle is 180 degrees. Standard Configuration – External dimensions: 550 x 550 x 150 mm – Includes 3 pairs of vertical 19" rails for mounting 2U, 4U, and 11U equipment – doors open to 180°, with the option to choose right- or left-hand opening – perforated front door with a 1-point lock for a patent key – cable entry points at the bottom, top, and rear – 4 holes with a diameter of 6.5 mm at the rear for wall mounting – Grounding cable connecting the cabinet body to the door – Load capacity: 30 kg – Protection rating: IP 20 Surface Finish Powder-coated for outdoor use according to the RAL color chart. Standard colors are RAL 7035 (light gray), RAL 9005 (black), and RAL 9003 (white). Accessories A wide range of accessories can be ordered for the cabinet, such as blanking plates, cable management panels, and many others, including special accessories upon customer request. Technical Specifications: - Height: 2U horizontally, 4U vertically, 11U vertically - Height: 550 mm - Width: 550 mm - Depth: 150 mm - Weight: 10 kg - Color: RAL 7035
