Tinycontrol DIN rail mounted line voltage sensor for LK3, LK4 95023

Product detailed description

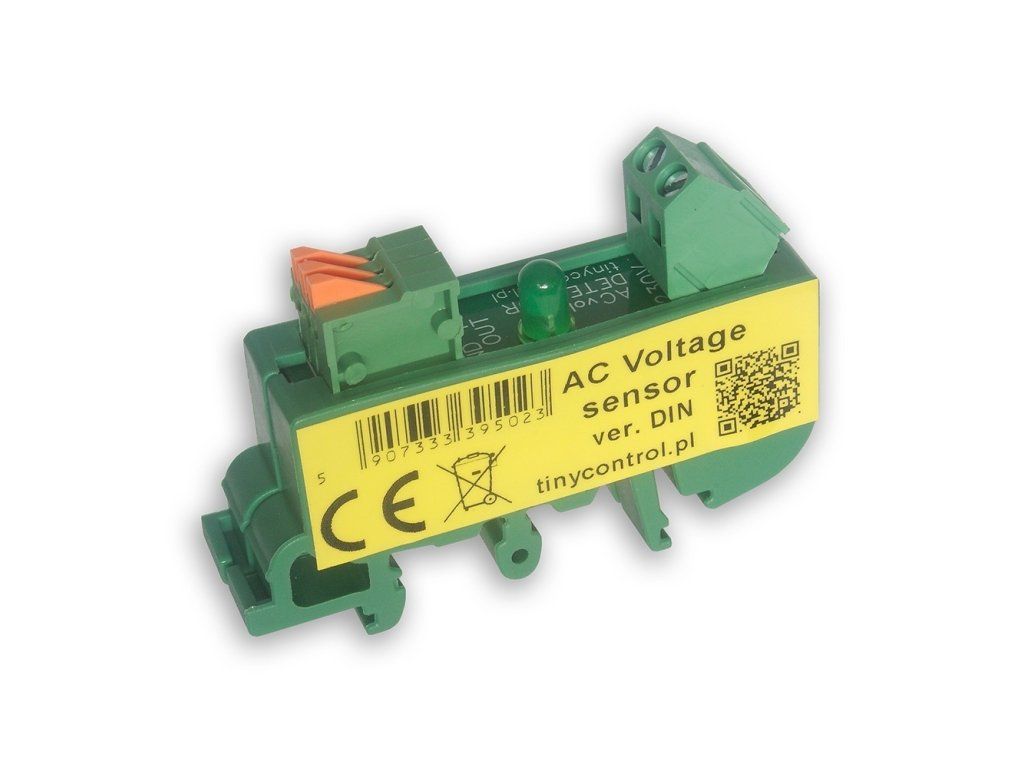

Tinycontrol AC SENSOR ver. DIN. The sensor is designed for mounting in the electrical cabinet on DIN rail. It simply indicates the availability of 230 V mains voltage. It is particularly useful in all UPS installations. The optical measuring method guarantees galvanic isolation between the 230 V supply voltage and the information output. It uses a logic type output (INPD terminal, for connection to the INPD/iD input on tcPDU/LK). - Current supply 230 V - low state 0, approx. 0.1 V - No power supply 230 V - high state 1 approx. 2.4 V Technical specifications: Current consumption: 1 mA at AC 230 V Operating voltage: AC 230 V Terminals: +5 V, GND, INPD Color: Green
