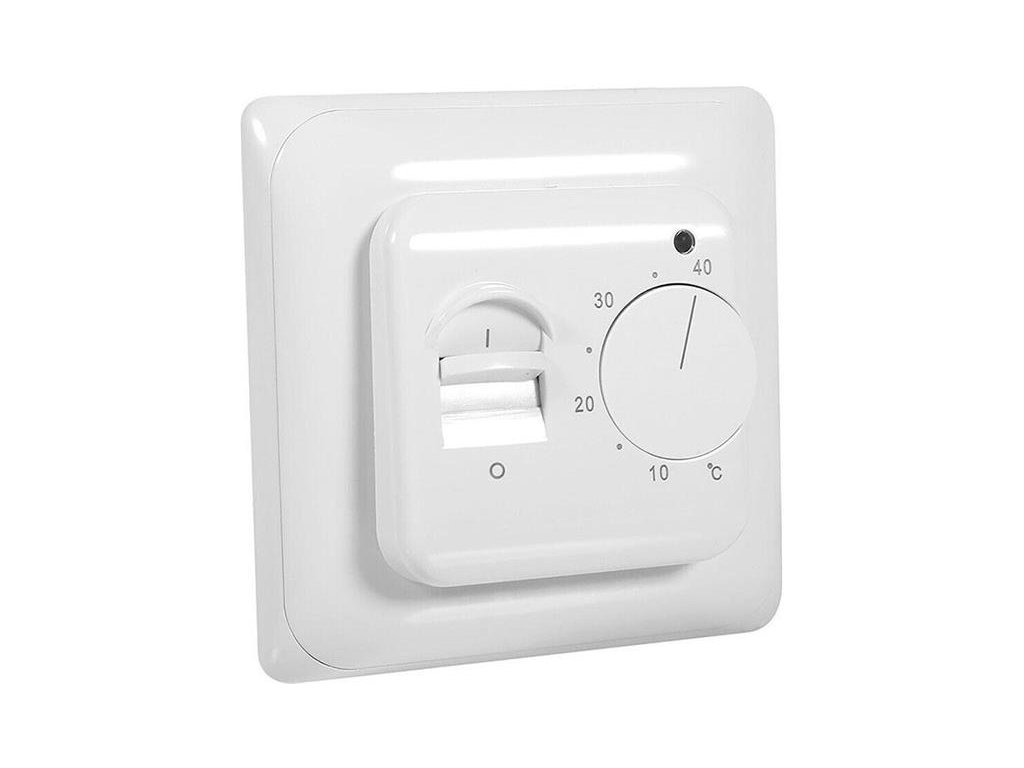

Wall thermostat for underfloor heating RTC70.26
Code: TI_08840420Product detailed description
Simple wall thermostat for underfloor heating mats with 3m probe. Installation in a deep flush-mounted box.
Technical parameters:
- 230VAC power supply
- control range: 5°C~40°C
- hysteresis 2°C
- potentiometer control
- output: relay contact 277VAC/16A
- optical indication of the on state (LED)
- protection IP20
- 3m cable with probe (NTC thermistor 10kohm)
Additional parameters
| Category: | Thermostats |
|---|---|
| EAN: | 8596425121014 |
| EAN: | 8596425121014 |
