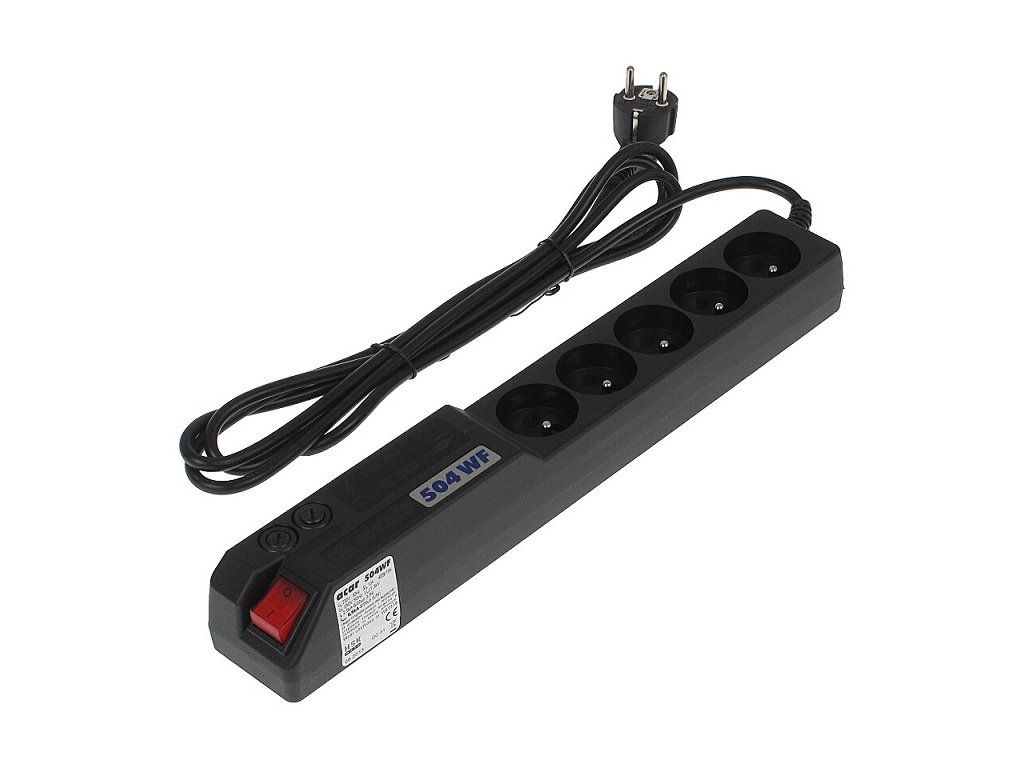

Acar 504 WF Rack, 3m cable, 5 sockets, surge protector, 19" rack brackets

Product detailed description

Surge protector Acar 504 WF Rack 19" 3m, black, metal "ears" for mounting in 19" rack Special version of the acar 504WF designed for 19" racks. True surge protection together with a new filtering circuit eliminating electromagnetic interference. Perfectly protects computers and audio video equipment. The device is supplied with mounting pads to attach the module to the rack. - into the rack - 2U - 3m - 5 sockets - black colour Rated voltage 230 V Frequency 50Hz Rated current IN = 10 A Protection 2 fuses 10A/250V Leakage current <0.5 mA Delay time <25ns Maximum continuous operating voltage of the UC surge protection system 250V 50Hz UP surge protection level 1.3kV(L/N) Rated current iN 2.5kA(L/N) - 8/20µs Maximum impulse leakage current iMAX 6.5kA (L/N) - 8/20µs Electromagnetic interference attenuation 55dB Surge protection system 2P+Z system Socket material self-extinguishing plastic Number of mains sockets 5 Colour black Dimensions 385x659x55/43mm THE DEVICE MUST BE CONNECTED EXCLUSIVELY TO SOCKETS WITH A PROTECTIVE (EARTHING) PIN
