System insulation board UHP51 (STIROTERMAL DUO 11)

Code: STIROTERMAL DUO 11

Product detailed description

Systemic insulating polystyrene board UHP51 (STIROTERMAL DUO 11) for floor heating with PS hard foil 0.6 mm thick. For very high retraction.

Note: The price is for 1 piece of board /1.12 m2/.

Board size: 1,12 m2

Pipe diameter: 14 - 18 mm

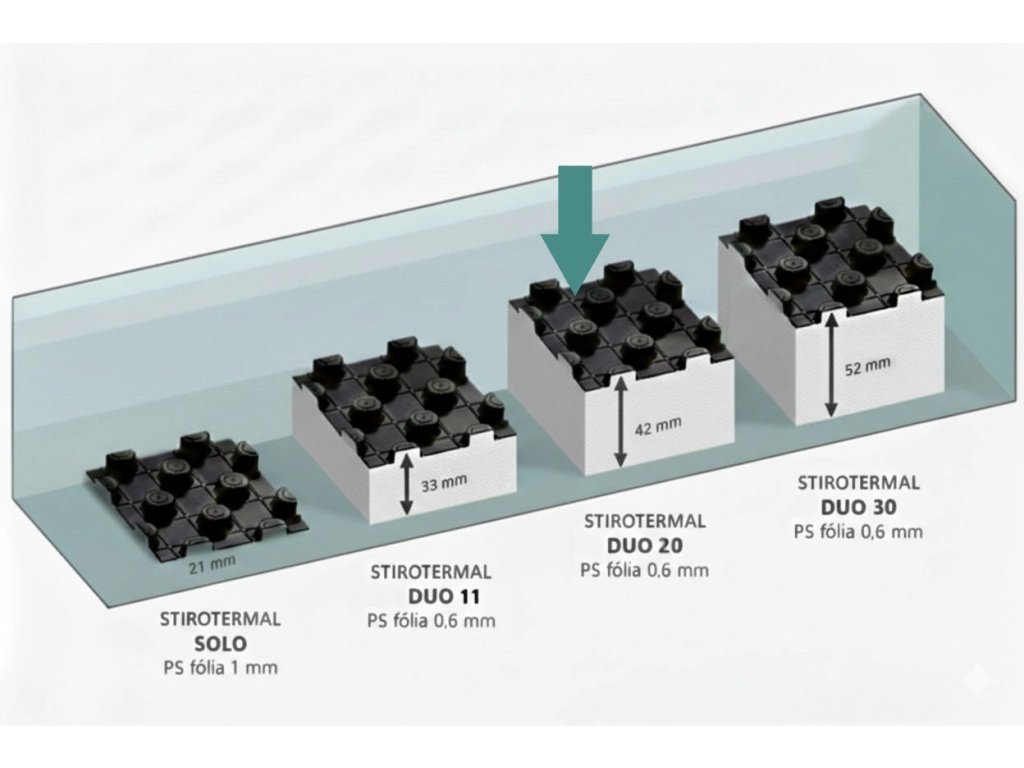

Total height: 33 mm

Pitch: 50 mm

Bending strength: 150 kPa

In one package there are 14,56 m2 or 13 pcs of boards.

Systemic polystyrene insulation board UHP51(STIROTERMAL DUO 11) low profile for underfloor heating is suitable for very high load, industry, car service, production hall.

The impact film is made of 0.6 mm thick hardened PS plastic.

All system boards contain a so-called "lock", guaranteeing the overlap of each side of the board with the next board, thus ensuring no concrete penetration under the polystyrene.

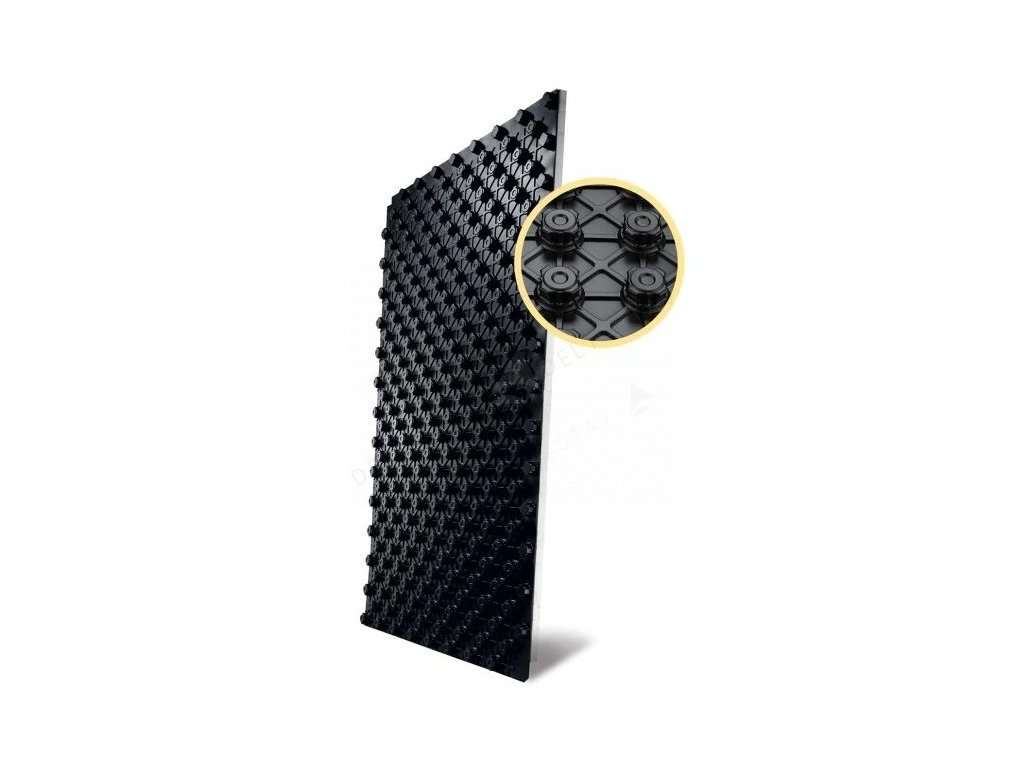

The upper part of the slab consists of octagonal protrusions (mushrooms) with overhangs allowing quick and easy installation (the pipe does not subsequently jump out) of any pipe with a thickness of 14 to 18 mm.

In the inner part of the plate under the projections there are 5 mm small projections, which ensure that the pipe is perfectly encased with grout, thus also from the bottom. This ensures perfect heat transfer to the heating plate around the entire circumference of the pipe.

For more information, visit www.systemova-doska.sk, or for a underfloor heating installation guide with FAQs, visit www.systemova-doska.sk/podlahove-vykurovanie/

This particular polystyrene insulation for underfloor heating has the highest density than other polystyrene boards. It is up to the customer to decide which board to go for. It is mostly used for production halls, garages, warehouses and driveways.
If you still can't decide, don't hesitate to call us.
Technical parameters :
  • for pipe diameter : 14 - 18 mm
  • pipe spacing : 50, 100, 150, 200 mm
  • insulating material : EPS 150
  • net dimension of the board (real usable dimension) : 1400 x 800 mm
  • net board area : 1,12 m2
  • total thickness : 33 mm
  • Insulation thickness : 11 mm
  • coefficient of thermal conductivity : 0,034 W/(m.K)
  • thermal conductivity : 0,30 m2 K/W
  • maximum load : 4000 kg/m2
  • thermal resistance : 80 °C
  • fire classification EN 13501-1 : E
  • fire classification DIN 4102 : B1
  • foil thickness : 0,6 mm
  • foil material : PS
  • foil colour : black
  • quantity per package : 14,56 m2 / 13 sheets
  • country of origin : EU

floor heating

Additional parameters

Category: Polystyrene, system boards
Warranty: 2 roky
Weight: 1.41 kg
