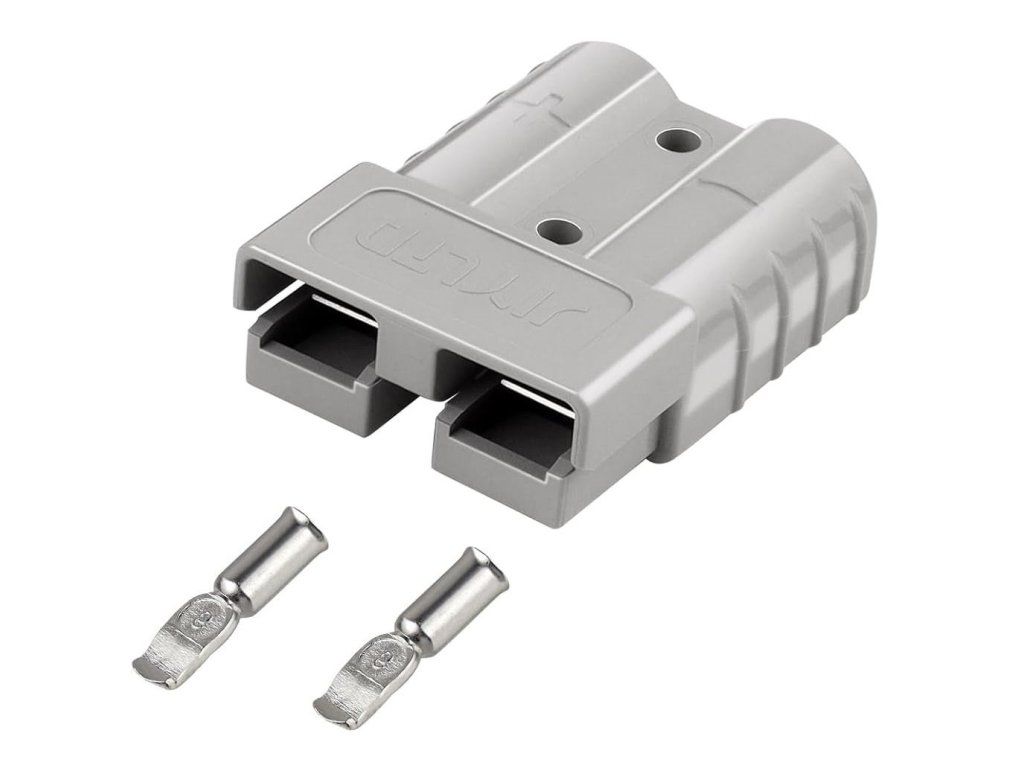

Anderson power connector JQ350A-600V, 350A 600V, grey

Product detailed description

2-pole 350A power connector. Power connector specially designed for reliable connection of wires with larger cross section. The connectors can be quickly disconnected at the same time. Ideal for connecting traction and backup batteries in almost any application. Two identical, matching counterpoints are required to connect the connectors together. Simply twist the connector 180°. Product parameters: Continuous current: 350A DC voltage: 600V Contact material: Cu/Ep&Ag Flammability: UL94 V-0 Operating temperature: -20°C - +105°C Cable opening: 4.8mm Designed for cable: 25-70mm2 Dimensions: 108×70×32mm Package Contents: 1pc Anderson connector SJ-350A 600V grey 2pcs Crimp contact You need 2pcs clips to connect the appliance and battery.
