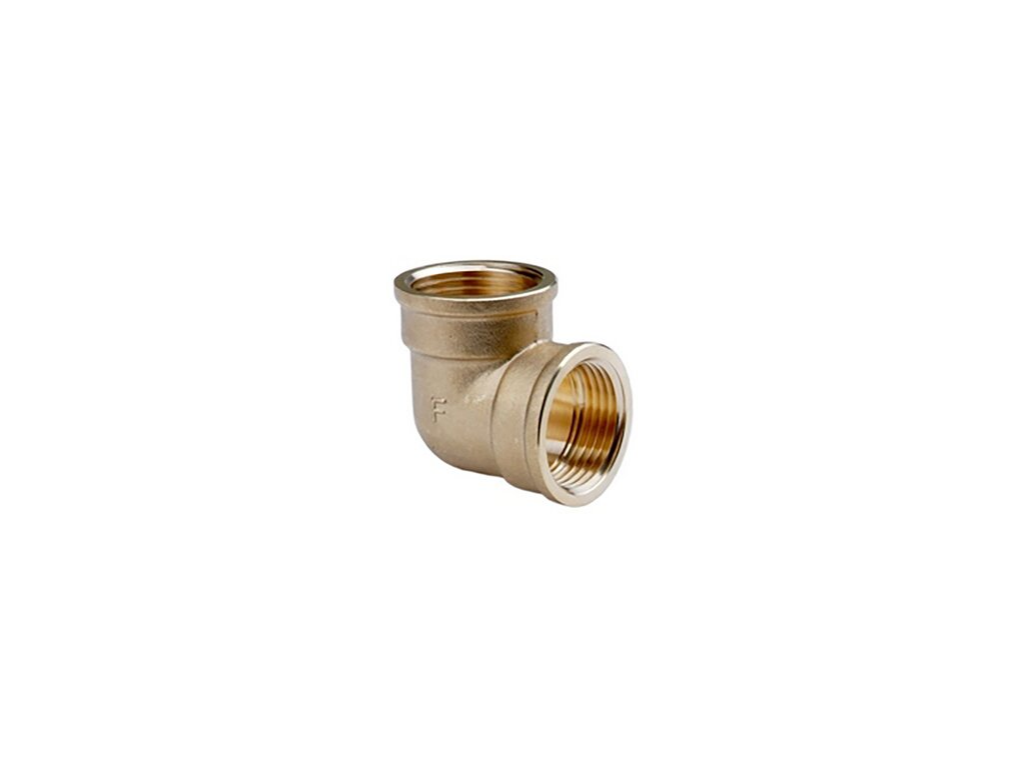

Elbow 1/2" FF

Product detailed description

Elbows are essential components in central heating systems, enabling directional changes in piping layouts. This IVAR 1/2 inch FF elbow is typically used in residential and commercial buildings with steel pipe heating systems. Installers working on boiler connections, radiator circuits and underfloor heating layouts frequently use this fitting to ensure secure and leak-free transitions. It is particularly useful when routing pipes around obstacles or aligning them with radiators or manifolds.

During installation, the elbow is threaded onto steel pipes using standard pipe tools. It is suitable for both low- and high-pressure systems, depending on the overall design and specifications of the heating network. The brass construction ensures resistance to corrosion and thermal expansion, making it suitable for long-term use in heating environments. The FF (female-female) threading allows for direct connection to other threaded components such as valves, radiators or other fittings.

Technical parameters

Installation and connection

Before installation, ensure the pipe ends are clean and free from burrs. Use a suitable pipe wrench to thread the elbow onto the pipe, applying even pressure to avoid cross-threading. Apply pipe sealing compound or PTFE tape to the threads to prevent leaks. After installation, visually inspect the connection for alignment and tightness. A common mistake is over-tightening, which can damage the threads or cause stress fractures in the brass body. Always follow the manufacturer’s guidelines for torque values if available.

Compatibility and accessories

This IVAR 1/2 inch FF elbow is compatible with standard steel pipe systems and brass or steel threaded components. It is commonly used with radiators, valves and other fittings in central heating circuits. To complete the installation, additional accessories such as unions, couplings or pipe clamps may be required, depending on the layout and system requirements. Ensure all components are from the same material group to avoid galvanic corrosion.

Technical background for designers

The IVAR 1/2 inch FF elbow operates as a directional transition in heating systems. The brass body conducts heat efficiently and maintains structural integrity under normal operating conditions. Its design allows for smooth fluid flow and minimal turbulence. The FF threading ensures a secure fit with other threaded components. The longevity of the fitting depends on factors such as water quality, temperature fluctuations and correct installation. Avoid using in aggressive chemical environments unless specified by the manufacturer.

Service and operation

During routine system checks, inspect the elbow for signs of leakage, corrosion or mechanical damage. Tighten the connection if necessary, but avoid over-tightening. In case of suspected failure, isolate the affected section and replace the component. No regular service intervals are required unless specified in the manufacturer’s documentation. Maintain the overall system pH and water quality to prevent internal corrosion.

Frequently asked questions

Can the IVAR 1/2 inch FF elbow be used with copper pipes?
Yes, it can be used with copper pipes provided the threads match and the system is properly sealed. Ensure compatibility between materials to prevent galvanic corrosion.

Is PTFE tape recommended for sealing the threads?
Yes, PTFE tape is suitable for sealing the threads. Apply 2–3 layers evenly and avoid over-tightening to prevent damage.

Can this elbow be used in a closed-loop radiant heating system?
Yes, the elbow is suitable for closed-loop systems provided the pressure and temperature are within the manufacturer’s specifications.

What should be done if the elbow leaks after installation?
If a leak occurs, isolate the system, remove the elbow, clean the threads and reapply sealing compound or PTFE tape before reassembling.
