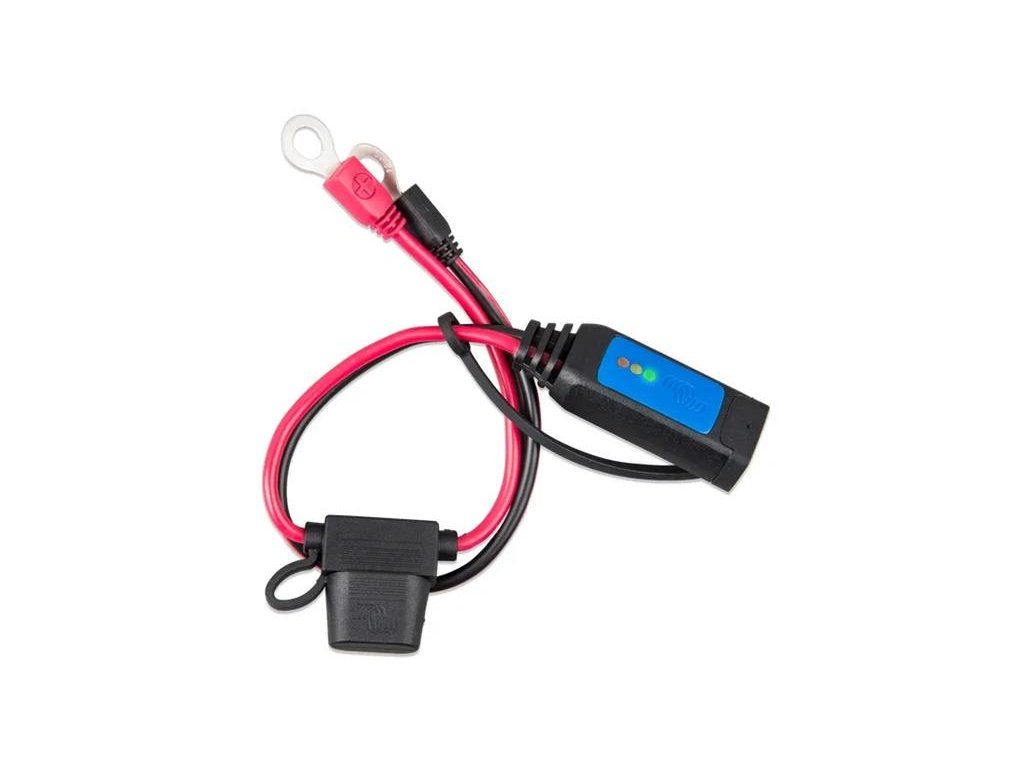

Battery indicator with M8 lugs

Product detailed description

The battery status indicator shows the current battery status. It is an accessory for Blue Smart and Blue Power IP65 chargers. It is only suitable for 12V (not for 24V) lead-acid batteries (flooded, GEL, AGM).


Parameters of the predicate:

Easy to use
After the battery is discharged, it takes approximately 30 minutes for the battery to reach a steady state and the panel to display the correct status value.
- green light: the battery does not need to be charged. Battery 80%-100%
- amber light: batteries can be charged. Battery 60%-80%
- red: battery needs charging. Battery 40%-60%
- without light: charge the batteries immediately to avoid sulphation. Battery <40%


Technical parameters:

- voltage: 6-15 V
- maximum current: 30 A
- cable length: 0.3 md
- dimension: 22 x 18 x 55 mm
- weight: 0,17 kg
- protection class: IP65
- meshes: M8
