Belden H1000 PE - Coaxial cable (100m)

Product detailed description

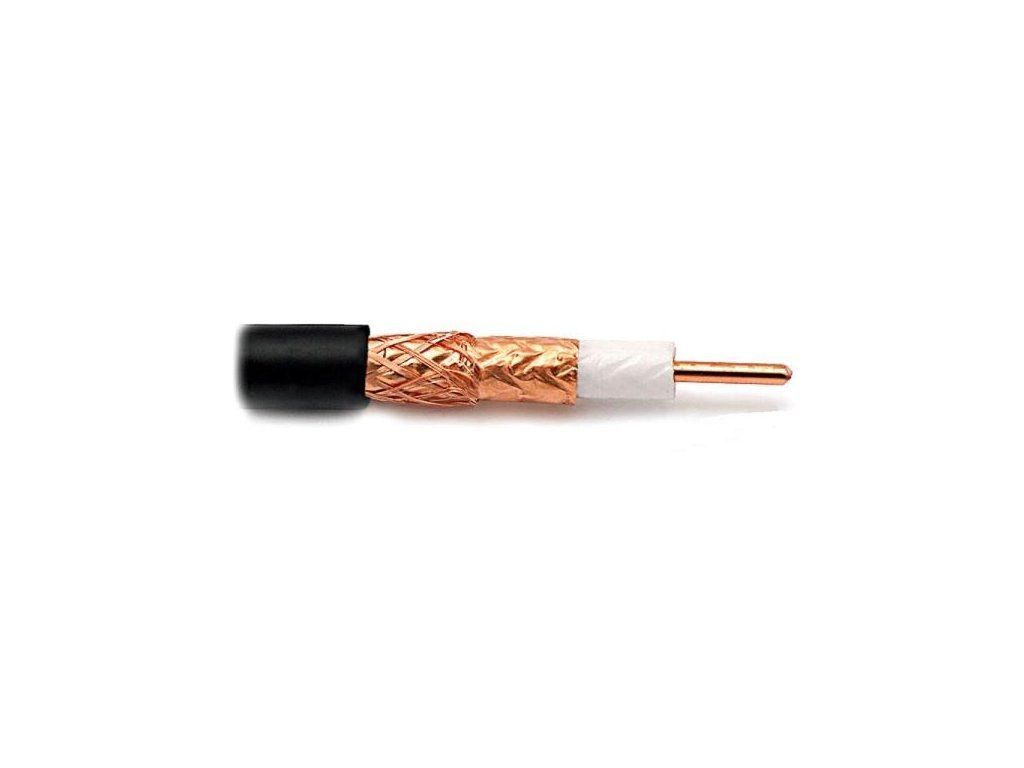

Coaxial cable 50 Ohm, black, low attenuation, suitable for bands up to 2.4GHz. Dielectric PE foam. Impedance 50 Ohm, attenuation approx. 24dB/100m/2.4GHz. Outer sheath diameter 10.3 mm. Parameters and specifications: Manufacturer BELDEN Wire type coaxial Wire series H1000 Wave impedance 50? Core structure solid Core type Cu Shield structure copper foil, Braid made of copper wires Outer insulation material PE Insulation colour black Cable outside dimensions O10.3mm Operating temperature -40...80°C Resistance properties to weather conditions Cable application outdoor - Attenuation: 10 MHz : 1.2 dB/100m 50 MHz : 2.8 dB/100m 100 MHz : 4 dB/100m 400 MHz : 8.4 dB/100m 800 MHz : 12.3 dB/100m 1000 MHz : 14 dB/100m 1350 MHz : 16.7 dB/100m 1750 MHz : 19.5 dB/100m 2150 MHz : 22.5 dB/100m 2400 MHz : 23.6 dB/100m - Transmitted power at 7MHz W 3200 - Transmitted power at 28MHz W 1590 - Transmitted power at 50MHz W 1180 - Transmitted power at 100MHz W 820 - Transmitted power at 432MHz W 370 - Transmitted power at 800MHz W 265 - Transmitted power at 1296MHz W 200 - Transmitted power at 2320MHz W 145 - Transmitted power at 5000MHz W 90 - Operating and storage temperature: -40°C..+80°C
