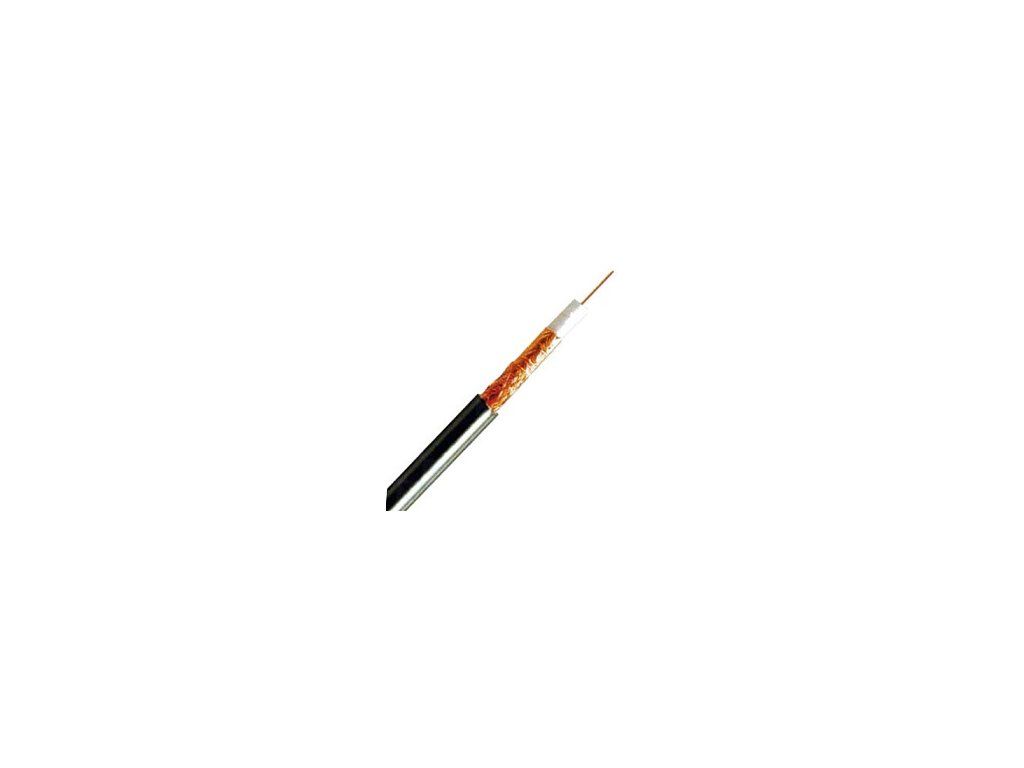

Belden H125 Cu PE - Coaxial cable (100m), black

Product detailed description

Cable designed for indoor and outdoor use. The manufacturer guarantees a lifetime of 15 years when exposed to weather conditions. It differs from the cheaper AL variant in that it also has a copper foil under the braid. Technical parameters: - inner conductor: Cu 1 mm - braid material: copper (Cu) - dielectric: FPE - shielding: copper foil - braiding: copper - packaging material: PE - cable outer diameter: 6,8 mm - max. bending radius: 65 mm - resistance of the inner conductor: 75 Ohm attenuation dB/100m 100 MHz - 6,2 dB 200 MHz - 8.9 dB 300 MHz - 10,9 dB 400 MHz - 12,9 dB 600 MHz - 16.0 dB 800 MHz - 18.8 dB 1000 MHz - 21,2 dB 1750 MHz - 29,0 dB 2150 MHz - 32,7 dB
