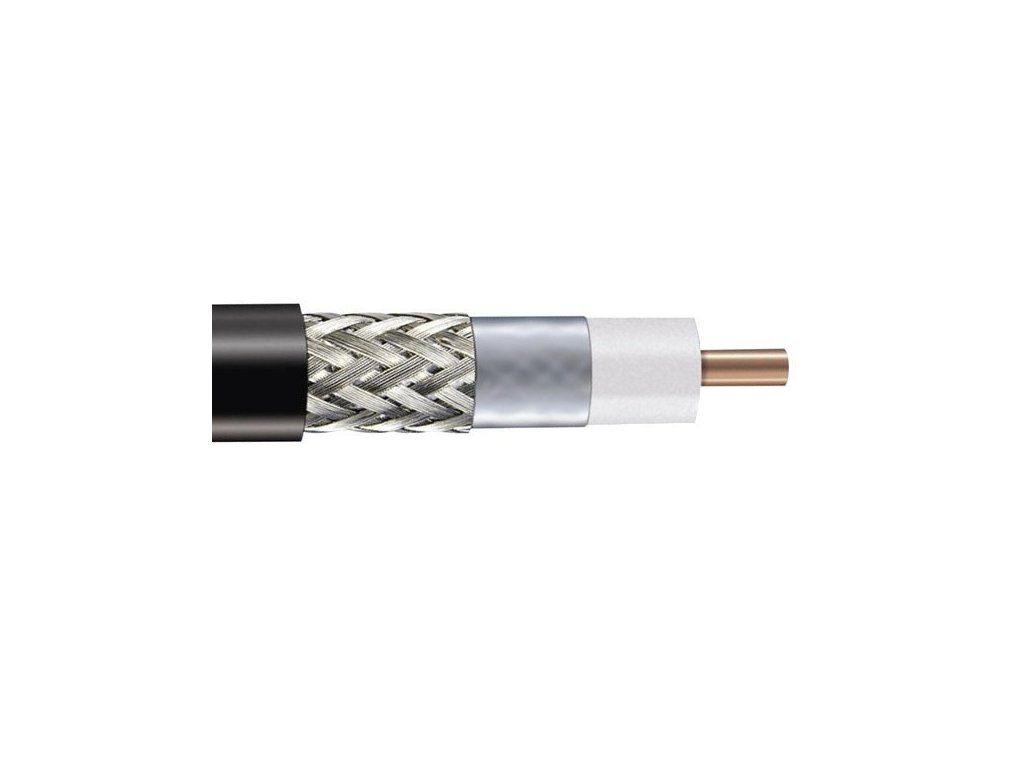

Belden H155 PE - Coaxial cable (100m)

Product detailed description

Coaxial cable 50Ohm, dark grey, low attenuation, suitable for bands up to 2.4GHz (WiFi, GPS). Dielectric PE foam. Impedance 50 Ohm, attenuation approx. 49dB/100m/2.4GHz. Outer diameter of the sheath 5,4 mm. 100 meters. Can be purchased by the meter. Parameters and specifications: - Type : H155 - Center conductor: 19 x 0.28 mm copper wire - Dielectric : PolyEthylene (PE) foam - Dielectric diameter: 3.9 mm ± 0.15 mm - Shielding: Al-Pet-Al foil + 80% tinned wire coverage - Diameter including shielding: 4.5 mm ± 0.2 mm - Sheath: PE black - Sheath diameter: 5.4 mm ± 0.2 mm - Minimum bending radius: 35 mm - Weight: 38.3 g/m - Copper content: 21.3 g/m - Impedance : 50ohm ± 2ohm - Total loop resistance : 32.0 ohm/km - Resistance of inner conductor : 15.0 ohm/km - Shielding resistance : 17.0 ohm/km - Capacitance : 82 pF/m - Shorting factor: 0.81 - Attenuation: 10 MHz : 3.0 dB/100m 50 MHz : 6.5 dB/100m 100 MHz : 9.3 dB/100m 230 MHz : 14.2 dB/100m 300 MHz : 16.3 dB/100m 400 MHz : 19.0 dB/100m 470 MHz : 20.7 dB/100m 860 MHz : 28.5 dB/100m 1000 MHz : 30.9 dB/100m 1350 MHz : 36.4 dB/100m 1750 MHz : 41.9 dB/100m 2050 MHz : 45.8 dB/100m 2450 MHz : 49.0 dB/100m 3000 MHz : 55.5 dB/100m - Transmitted power at 28MHz kW 0.7 - Transmitted power at 144MHz kW 0.3 - Transmitted power at 432MHz kW 0,2 - Transmitted power at 1296MHz kW 0.1 - Operating and storage temperature: -40°C..+80°C
