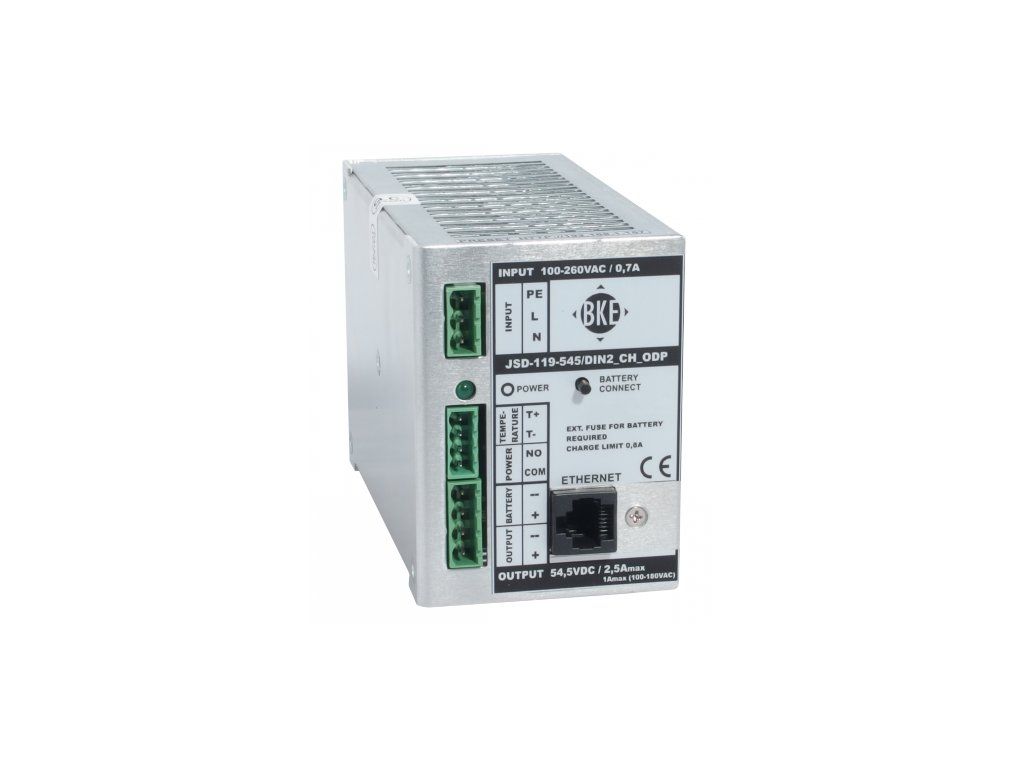

BKE JSD-119-545/DIN2_CH_ODP 54.5 V, 120 W, 2.5 A, LAN

Product detailed description

The JSD-119-545/DIN2_CH_ODP charger also integrates remote monitoring and automatic reporting of monitored power supply parameters. This enables the power supply to significantly reduce or completely eliminate power outages and saves maintenance resources and time. The power supply also has integrated deep discharge protection and has a set battery charge current limit to protect the battery from overcharging. Input voltage100-260 VAC Input frequency 50/60 Hz Input current 0.7 A/230 VAC Power factor 0.95 Electrical Strength 3000 VAC primary-secondary, 1500 VAC primary-box Insulation resistance greater than 50M? Output voltage ripple (50 Hz): 1.4 V@54.5 V; 0.72 V@27.5 Operating conditions and data Operating temperature range -20 to 50 oC Humidity (non-condensing) 10 to 80 % RH Altitude up to 2000 m above sea level Environment: no explosion hazard Degree of protection IP20 Weight 500 g Box material Al + Zinc. sheet metal Dimensions (WxHxD) 66x89x138 mm The power supply is designed as a device of protection class I, overvoltage category in installation 3 according to EN 61010-1, it is resistant to output short circuit. The power supply is designed for permanent operation, its input is protected by a fusible fuse T4AH/250V. Technical standards and certificates The power supply is issued with a declaration of conformity in accordance with Act No. 22/1997 Coll. as amended by Act No. 71/2000 Coll Safety EN 60950-1 ed.2 EMC EN 61000-6-1 ed.2 EN 61000-6-3 ed.2
