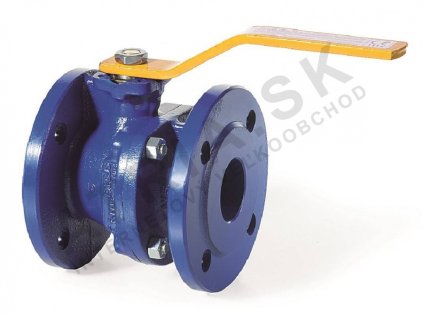

BRA.B2.100 GAS - GV series B2 - for gas
FLANGE BALL CAP
BRA.B2.100 GAS
- max. pressure 16 bar (pipe end max. 10 bar), flanges PN 16 according to EN 1092-1
- T = -10 °C to +70 °C
- for gases of class G1 and G2 according to PED 2014/68/EU, compressed air
- body material: cast iron GJS400 -15, ball brass CuZn40Pb2, shaft chromed brass
- seal material: PTFE ball, shaft 2 x NBR
- with separable body, full flow, use also with drives, connection according to ISO 5211
- not suitable for steam and flow control
