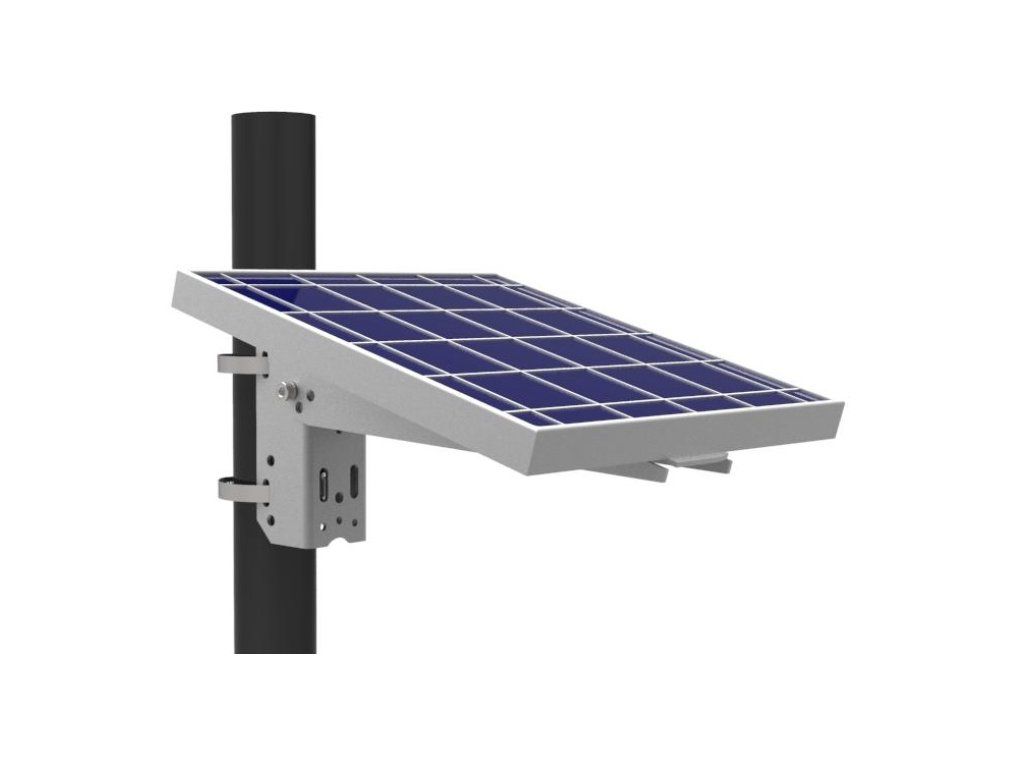

Bracket for SMALL solar panels on the wall and on the pole

Product detailed description

It is used for mounting the solar panel on the wall and mast, pipe, pole or fence etc. For panels with aluminium frame. Panel width 100 - 300 mm. Product parameters: - Installation - For panels with aluminium frame - Mounting material: included - Designed for. - Mounting diameter of the pole: 59-82 mm. - Can also be used for wall or pole mounting. - Tilt adjustment is from 15° / 35° / 45° / 65° which maximizes the performance of the solar panel all year round. Installation on mast, pole with a diameter of 58mm to 81mm. The pole mounting dimensions can be changed by purchasing other types of pull-tabs. Bracket dimensions: - fixed pole mount: 54x58x160 mm - solar panel bracket: 79x65x340 mm Package contents: 1x fixed bracket 1x solar panel holder 2x Tensioning straps, hose clips + complete mounting material (nuts, bolts, washers)
