Bracket for truss pole on wall 130cm double offset 15cm

Product detailed description

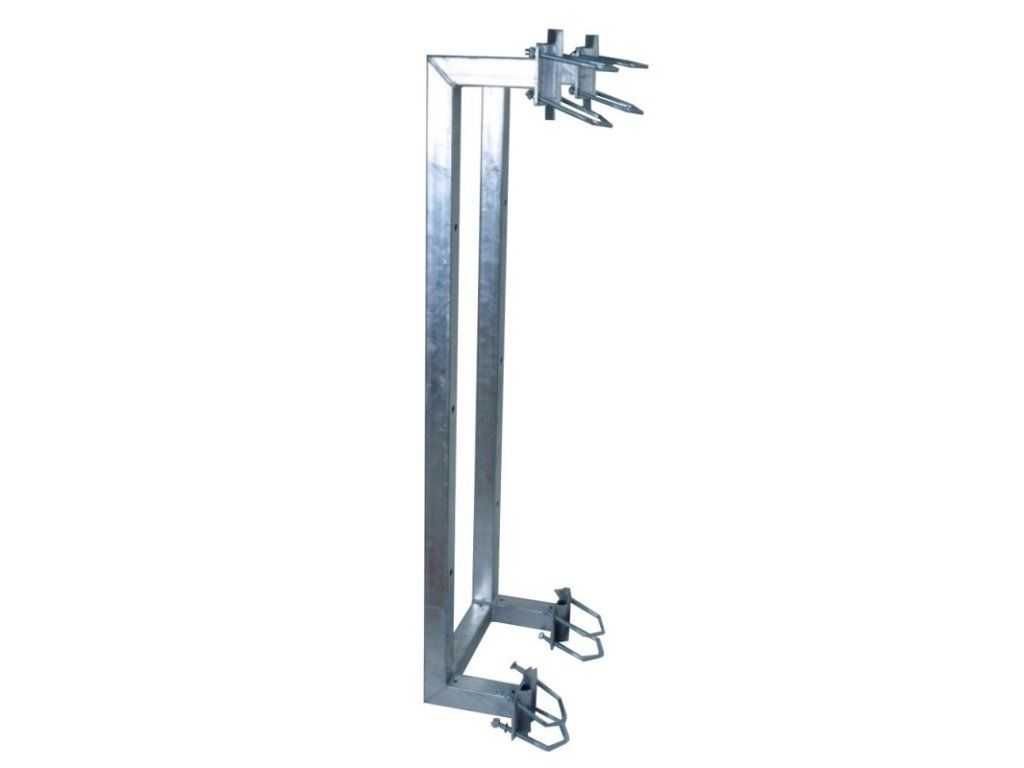

Truss mast bracket, a structure for placing a truss mast on the wall of a building with a lining. The height of the bracket is 130cm and the offset from the wall is 15cm. The package includes 8 pieces of brackets. The offset of the mounting holes is 70 x 60mm. The diameter of the mounting holes for the stirrups is 12, the holes for the wall are 14mm in diameter. Double bracket for mounting a 2m or 2x1m truss mast. Mounting holes for wall mounting: 8x 14mm Attachment of the mast with eight hook screws with M10 thread Included: 8x hook bolts 16x washer 16x nut Technical parameters Physical characteristics Surface finish: Hot dipped zinc Design and Compatibility: Standard (35cm), 4-sided (35cm) Offset from wall [cm]: 15 Profile size [mm]: 50 x 50 Weight [kg]: 26 Height [cm]: 130 Width [cm]: 40 Surface finish: hot dipped zinc 80-120 microns on the outside and inside of the profiles.
