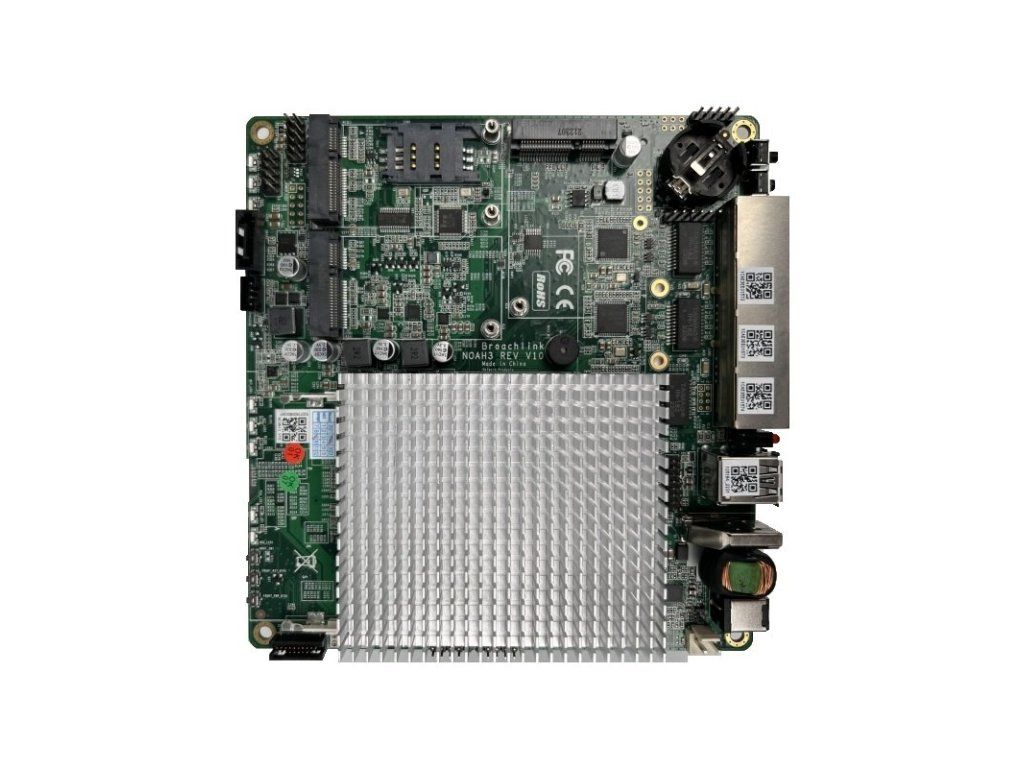

Broachlink Noah3 Firewall Router Motherboard Intel E3845, 4 cores 1.91 GHz

Product detailed description

The Noah3 Firewall Router board with Intel E3845 processor, 4 cores at 1.91 GHz, is the ideal choice for a robust and reliable device designed for continuous operation. It supports up to 8 GB of DDR3L memory and offers three gigabit Ethernet ports for fast and stable connectivity. There are also two miniPCIe slots for expansion, such as 4G LTE or Wi-Fi modules, and one mSATA slot for SSD connectivity. The board also features an HDMI output, a USB 3.0 port and 24 GPIO channels. The Noah3 is compatible with popular operating systems such as pfsense, OPNsense and OpenWrt and is ideal for applications in network security, IoT and telecommunications. Noah3 is a reliable and powerful fanless hardware designed for 24/7 devices and other applications. - Industrial environments (router, hardware controller, control panel interface, ...) - Telecommunications (router, IPBX, VoIP gateway, LTE, WiFi controller, etc.) - Network (firewall router, aggregator, VPN server, NAS, video surveillance, ...) - Security (VPN server, analyzer, packet inspector, ...) - IoT (gateway, concentrator, local controller, local analyzer, ...) - Prototyping (experiments, geek hobbyists, ...) Noah3 is a replacement alternative for the APU2 board from PC Engines. Noah3 was designed to facilitate the replacement of the PC Engines APU board. Processor System CPU: Intel Atom E3845 Core: 4 Frequency: 1.91GHz L2 Cache: 2MB BIOS: AMI 64 Mbits AES: AES-NI Memory Technology: DDR3L 1333MHz Max. Capacity: 8 GB (Should be installed in factory) Socket: 1 x 204 pin SODIMM Display HDMI Ethernet Interface: up to 3 Controller: Intel I211 Connector: RJ45 WatchDog Timer Output: System reset Internal Watchdog timer: (programmable 1-255s,1-255min, disable) Storage mSATA: 1 x full size mSATA SATA: 1 x SATAII (Max. Data Transfer Rate up to 3.0 Gb/s) Internal I/O Up to 3 Serial: 1 x RS-232 , 2xTTL (Transfer rate up to 1 Mbit/s) Ethernet: Up to 3 GbE HDMI: 1 Reset Button: 2 Power Button: 2 (For system wake) USB: 3 x USB2.0 + 1 x USB3.0 GPIO: 24-bit GPIOs Expansion MINI_PCIE1 slot has PCIe, SIM and USB signal for (4G/LTE). MINI_PCIE2 slot has PCIe signal. mSATA: 1 Power Power input: 12V ±10% only Power Consumption (Typical,Minimum system) Noah with E3845: 0.5A @ 12V (5.28W) Power Consumption (Max, test in pfSense) Noah with E3845: 1A @ 12V (12W) Environment Operating 0 ~ 60° C (32 ~ 140° F) (Operating humidity: 40° C @ 95% RH non-condensing) Non-Operating -40° C ~ 85° C and 60° C @ 95% RH non-condensing Physical Characteristics Dimensions (L x W): 160 x 152 mm (6.3" x 5.99") Weight: 0.45 kg (0.99 lb) (with heatsink) Total Height: (with cooler + PCB + Bottom) 33mm
