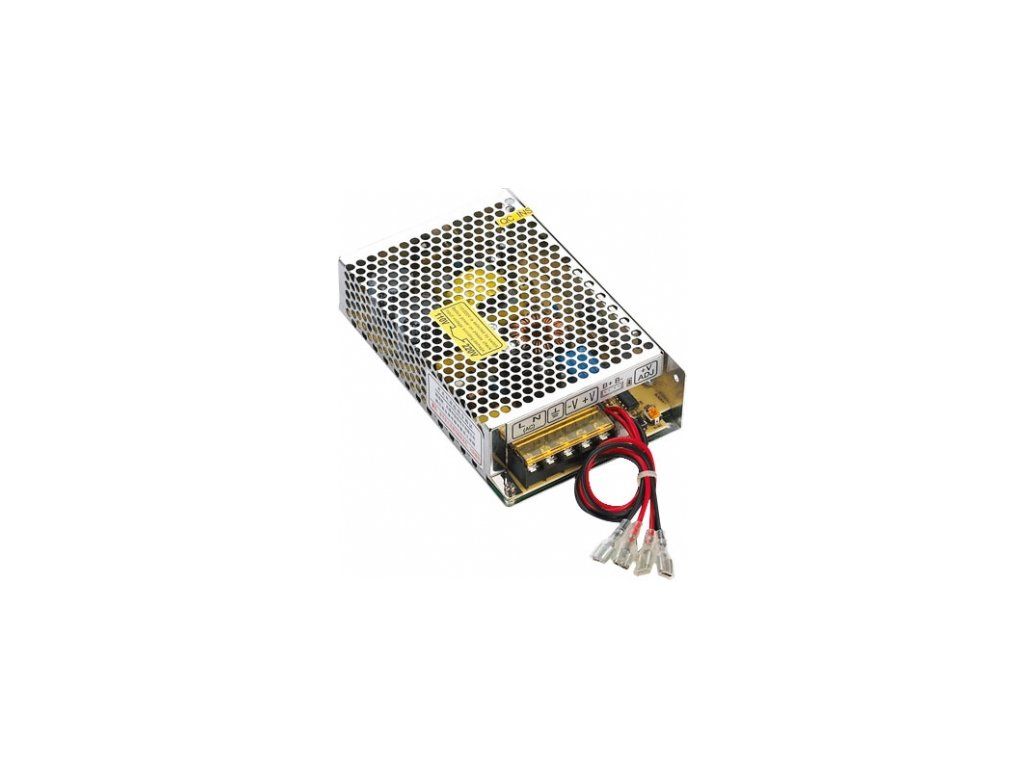

Carspa 24V=/120W switching industrial power supply SC-120/24 with UPS backup function

Product detailed description

- AC Input voltage range selected by switch - Low weight, high efficiency - Protection: short circuit / overload protection - Airflow cooling - LED power-on indicator - 100% full load test Output: DC voltage: CH1:27.6V CH2:26.5V Voltage tolerance: ±1% Rated current: CH1:4A CH2: 0.3A Current range: 0-4A Rated power: 118.4W Ripple and Noise: 180mVp-p Voltage adjustment range: CH1:21.3~29.8V Input: Voltage: 90~264VAC 127~370VDC Frequency: 47~63HZ AC current: 2.8A/115VAC 1.4A/230VAC Efficiency: 83% Current surge at power on: 30A/115VAC 50A/230VAC Leakage current: < 1mA/240VAC Protection: Overload: 110%~150% of rated output power triggers overload protection Protection method: when mains power supply: warning beep every 2sec. when overload, automatic restoration of operation after fault clearance Battery undervoltage protection: 20~22V UPS Features: Long-term battery charging with high charging efficiency, battery will charge to over 90%, auto-stop charging when battery is full, charging voltage limitation. Effective battery life extension, auto AC/battery switching, no delay, no operator intervention required, cold start when there is no AC input voltage, starts with UPS battery, meets all backup requirements. Prov. temperature and humidity: -10°C~+60°C,20%~90%RH Storage temperature and humidity: 20°C~+85°C,10%~95%RH non-condensing Vibration resistance: 10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes Withstand voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC Insulation resistance: I/P-O/P,I/P-FG,O/P-FG:100Mohm/500VDC - Dimensions 159x97x38mm - Package weight: 0.56Kg
