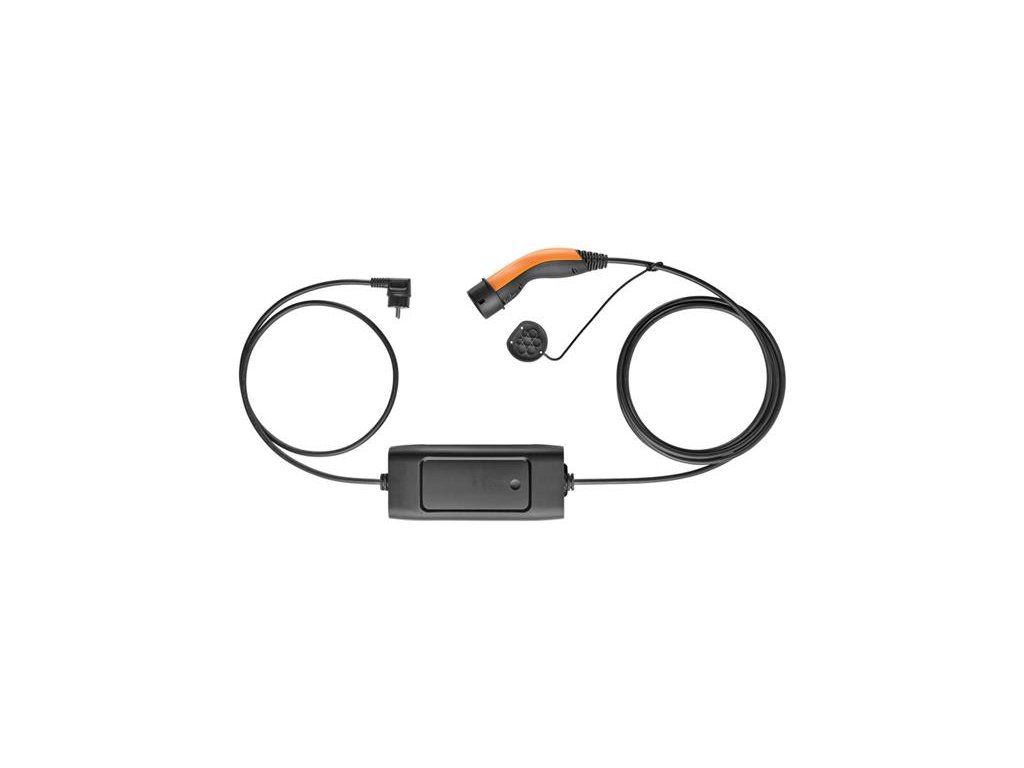

Charging station LAPP 64694 Basic type 2 2,3kW 10A

Product detailed description

For charging hybrid and electric vehicles with type 2 connection

The LAPP Charging Station Basic connects your electric car directly to the power source - providing full flexibility via a safety plug. Simply plug the Type 2 cable connector into the car and the plug into the socket. On-board electronics automatically start and complete the charging process.
The LAPP charging station is suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).

The LAPP Mode 2 charger provides easy mobile charging via standard mains sockets (CEE 7/3 safety socket, E/F plug) and is ideal in the garage at home or as an emergency charging cable on the move.
The ideal solution for safe and stable charging with up to 2.3 kW and a nominal voltage of 240 V (AC) with interconnected control box
Rugged, vehicle-resistant cables and plugs with silver-plated contacts and a drop-resistant control box (IP67 waterproof) provide exceptional durability
A cover on the clutch on the side of the vehicle protects against dust, dirt and water ingress between charges
EV charging cable with high moisture protection according to IP55, operating temperature -25 °C to 45 °C
The Type 2 to Type 2 EV charging cable is space-saving and easy to handle thanks to its light weight.
Particularly safe thanks to over-current and over-voltage protection as well as temperature monitoring in the mains plug and control box in the cable (ICCB)

Technical parameters:

Connection, type: plug type 2 female
Connection 2, type: safety plug hybrid (type E/F, CEE 7/7)
Power: 2,3 kW
Charging mode: mode 2
Rated voltage: 230 V (AC)
maximum current capacity: 10 A
Cable:
Number of phases: 1
Cable jacket material: ÖLFLEX® CHARGE
Inner cross-section of conductor: 2.5 mm²
Cable length: 6 m
Cable type: plain cable
Colour: black
Marking: WEEE, CE
Operating temperature from: -25 °C
Operating temperature up to: 45 °C
